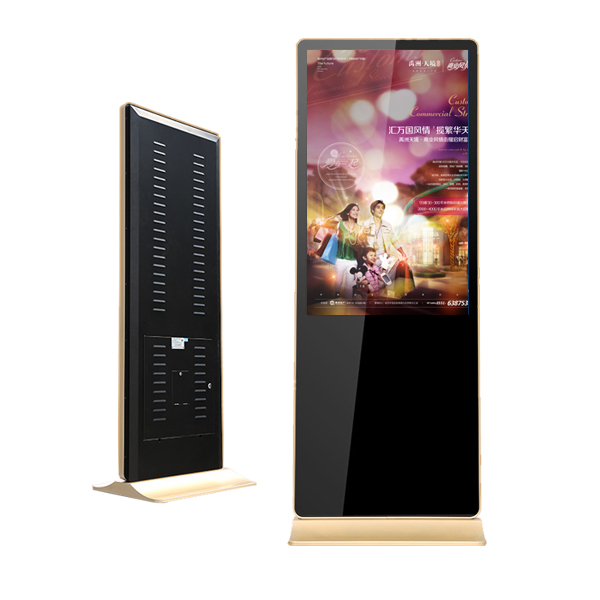

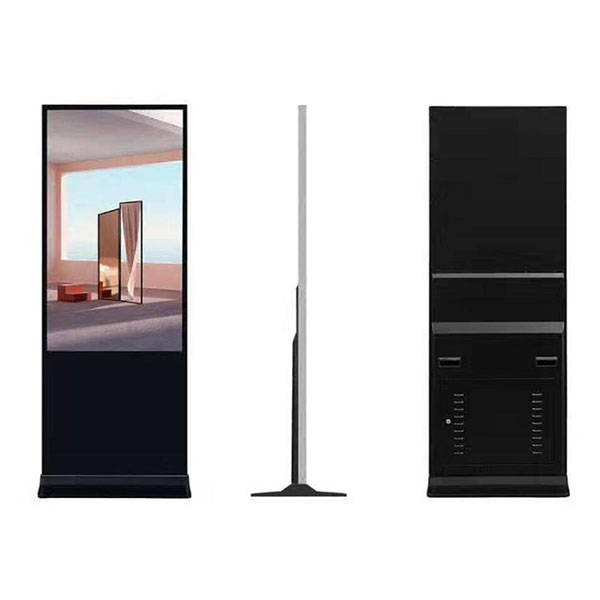

Floor Stands Digital Signage

Floor Standing Digital signage supported Android Windows with HDMI RJ45

Feature

• Support wide screen sizes to select from 32 inch to 98 inch.
• Wide solutions with supported Operation System Android, Windows and Linux
• Top panel brands are available to assemble according to your needs like AUO, Sharp, Samsung, LG, Panasonic etc.
• 4K supported resolutions
• Optional touch type includes IR / PCAP/ Touch ifoil
• Available to customize color and add Logo in mass production
• Abondon interfaces like USB, HDMI, RJ45 etc
• Slim and smart design; Durable steel frame, Easy to install and operate
• Moisture proof, Antirust, Anti-acid, Anti-dust, Static free
• Meet the applications in Bank, hospital, shopping mall, government, restaurant, movie theater, hotels etc

Panel Datasheet Panel type LED Panel, steel glass
Panel Size 32″/40″/43″/46″/47″/49″/50″/50″/58″/60″/65″/70″/75″/80″/86″/98″  available to select
Brightness  350nits – 500nits according to Panel itself
Resolution 1920*1080 / 3840*2160(4K)
Contrast Ratio  1400:1 / 4000:1
Responsive Time 3ms~8ms
Viewing Angle H178/V178
Panel Life 50000hrs
Panel Brand AUO, Sharp, Samsung, LG, Panasonic etc
Touch Panel Datasheet Touch Max Resolution 4980*4980
Touch Type(Optional) IR / PCAP/ Touch ifoil
Touch point 10points
Transparency > 90%, Up to 100%
Response Speed <12ms
Touch precision 0.625mm
Minimum Touch 3mm
Supported Operation System windows/android/linux
Android version CPU  RK3288 quad core / RK3399
(optional:Allwinner A83/A83T Octa-Core Cortex™-A7)
Operation System Android 6.0/7.1
RAM 2G/4G
Memory 8GB/16G/32G
Bluetooth supported
WIFI 802.11b/g/n
RJ45 Supported
Firmware Upgrade Upgrade from SD card/mini USB
Interfaces 2*USB, 1* HDMI, 1*SD, 1*MINI USB, 1*RJ45
File system FAT(RW),FAT32(RW),NTFS®
Video Format 1080PDIVX/H264/H263/AVI/FLV/m2ts/mkv/mp4/MJPEG/MPEG
/rm/rmvb/MOV/BDAV/HTML5/vc1
Audio Format MP3, WMA, OGG, WAVE.
Image Format BMP/JPG/PNG/GIF/JPEG/TIFF
Windows version CPU J1900/i3/i5/i7
Memory 2G/4G/8G/16G
Hard Disk/SSD 64G/128G/256G SSD
Graphic card INTEL HD Graphics 4000
WIFI Atheros AR938x wireless network
Bluetooth optional
Interface(I/O) USB port*4, HDMI*1, VGA*1, audio, RJ45*1
Operation System Windows
Linux version Optional We have main-board to build device
Speaker Built-in 2 x speaker
Working Environment Working temp 0ºC~50ºC
Storage temp -20ºC~60ºC
Working humidity 20%~80%(noncondense )
Storage humidity 10%~90%(noncondense)
Power Supply 110~240V, 50/60GHz
Warranty one year
Device colour front-panel: black; Border: silver; Rear cover: black ; available to customize in mass production
Packing Export wood box
Others Slim and smart design; Durable steel frame,  Easy to install and operate; Moisture proof, Antirust, Anti-acid, Anti-dust, Static free, available to customize color and add Logo
Applications Bank, hospital, shopping mall, government, supermarket, restaurant, movie theater, retail stores, hotels, airports, railway stations etc

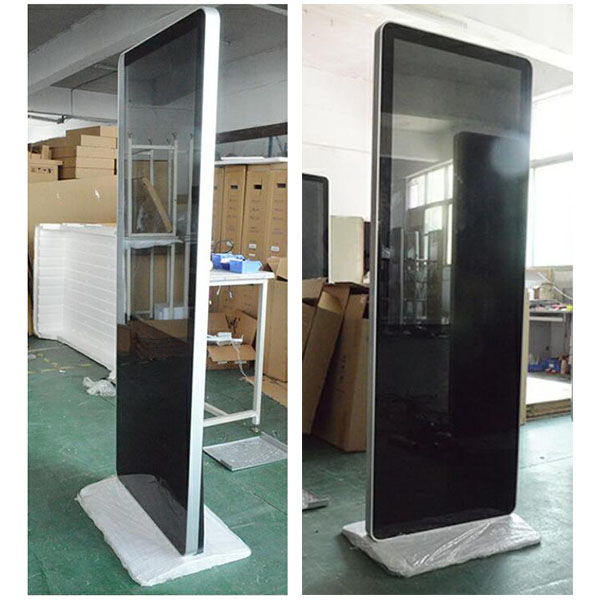

Floor stands Digital Signage here is a series for Floor stands display terminals with available panel size 32″ to 98″, the series products use wide solutions with supported Operation System Android, Windows and Linux. The high resolution of panel and top panel brands like AUO, Sharp, Samsung, LG, Panasonic etc could give the operators excellent experience of the panel. You could decide whether touch function is needed in your projects and indicate which touch type to move forward. To meet most of the applications, the interfaces like USB, HDMI, RJ45 was designed as a standard. Besides, the specifical project which require some customizations are also welcomed. Therefore, such series standard digital signage products are widely used in Bank, hospital, shopping mall, government, supermarket, restaurant, movie theater, retail stores, hotels, airports, railway stations etc, if you are interested, please feel free to let us know your detailed requirements.
