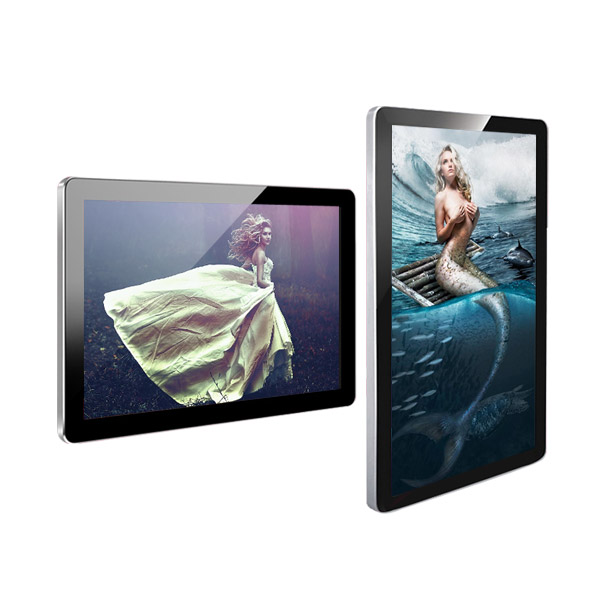

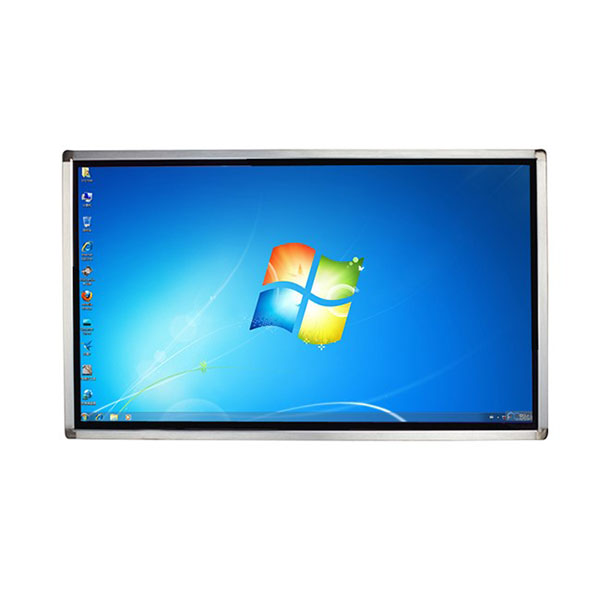

Wall Mounted Digital Signage

Wall Mounted Digital Signage 10" to 98" with USB HDMI RJ45

Feature

• Support wide screen sizes to select from 10 inch to 98 inch
• Wide solutions with supported Operation System Android, Windows and Linux
• 4K supported resolutions
• Optional touch type includes IR / PCAP/ Touch ifoil
• Available to customize color and add Logo in mass production
• Abondon interfaces like USB, HDMI, RJ45 etc
• Slim and smart design; Durable steel frame, Easy to install and operate
• Moisture proof, Antirust, Anti-acid, Anti-dust, Static free
• Meet the applications in Bank, hospital, shopping mall, government, restaurant, movie theater, hotels etc

Panel Datasheet Panel type LED Panel
Panel Size 10.1″/15.6″/18.5″/21.5″/27″/32″/43″/47″/55″/65″/75″/86″/98″  etc
Brightness  250nits / 300nits / 350nits / 400nits / 450nits / 500nits
Resolution   800*600/1024*768/1280*800/1366*768

/1920*1080 / 3840*2160(4K)

Contrast Ratio   1000:1/ 1200:1 / 1400:1 / 4000:1
Responsive Time 3ms~8ms
Viewing Angle H160/V140,H160/V150,H170/V170,H178/V178
Panel Life 50000hrs
Display mode Landscape, portrait, full screen, split screen
Optional Panel Brand AUO, Sharp, Samsung, LG, Panasonic etc
Touch Panel Datasheet Touch Max Resolution 4980*4980
Touch Type(Optional) IR / PCAP/ Touch ifoil
Touch point 10points
Transparency > 90%, Up to 100%
Response Speed <12ms
Touch precision 0.625mm
Minimum Touch 3mm
Supported Operation System windows/android/linux
Android version CPU  RK3288 quad core / RK3399

(optional:Allwinner A20/A83/A83T Octa-Core etc)

Operation System Android 6.0/7.1
RAM 2G/4G
Memory 8GB/16G/32G
Bluetooth supported
WIFI 802.11b/g/n
RJ45 Supported
Firmware Upgrade Upgrade from SD card/mini USB
Interfaces 2*USB, 1* HDMI, 1*SD, 1*MINI USB, 1*RJ45
File system FAT(RW),FAT32(RW),NTFS®
Video Format 1080PDIVX/H264/H263/AVI/FLV/m2ts/mkv/mp4/MJPEG/

MPEG/rm/rmvb/MOV/BDAV/HTML5/vc1

Audio Format MP3, WMA, OGG, WAVE.
Image Format BMP/JPG/PNG/GIF/JPEG/TIFF
Windows version CPU J1900/i3/i5/i7
Memory 2G/4G/8G/16G
Hard Disk/SSD 64G/128G/256G SSD
Graphic card INTEL HD Graphics 4000
WIFI Atheros AR938x wireless network
Bluetooth optional
Interface(I/O) USB port*4, HDMI*1, VGA*1, audio, RJ45*1
Operation System Windows
Linux version Optional We have main-board to build device
Play mode: Single repeat play, folder loop play, full loop play
Speaker Built-in 2 x speaker
Working Environment Working temp 0ºC~50ºC
Storage temp -20ºC~60ºC
Working humidity 20%~80%(noncondense )
Storage humidity 10%~90%(noncondense)
Power Supply 12V/4A, 100~240V, 50/60GHz
Warranty one year
Device colour front-panel: black; Border: silver; Rear cover: black ; available to customize in mass production
Packing Export wood box
Others Slim and smart design; Durable steel frame,  Easy to install and operate; Moisture proof, Antirust, Anti-acid, Anti-dust, Static free, available to customize color and add Logo
Applications Bank, hospital, shopping mall, government, supermarket, restaurant, movie theater, retail stores, hotels, airports, railway stations etc

Wall Mounted Digital Signage here is a series for Wall Mounted display terminals with available panel size 10“ to 98”, the series products use wide solutions with supported Operation System Android, Windows and Linux. The high resolution of panel and top panel brands like AUO, Sharp, Samsung, LG, Panasonic etc are available to select. You could decide whether touch function is needed in your projects. To meet most of the applications, the interfaces like USB, HDMI, RJ45 was designed as a standard. Besides, to ensuere good quality, we have requirements to the material like tempered glass protective panel, Aluminum alloy profile frame, baking process. High quality cold-rolled steel plate back cover. Therefore, such series wall-mounted digital signage products are widely used in Bank, hospital, shopping mall, government, supermarket, restaurant, movie theater, retail stores, hotels, airports, railway stations etc, if you are interested, please feel free to let us know your detailed requirements.
