RN1101

11.6-inch Rugged Windows 10 Notebook & Tablet

Feature

• Support Windows 10 system
• 8GB DDR4L and 128GB NGFF SSD for system fluency
• Rugged IP65 protection to against the water and dust
• Designed with 128GB NGFF SSD and optional HDD as a standard
• Support Ublox, GPS high-precision positioning, and dual frequency WiFi
• Design double wide temperature battery, detachable/removable on keyboard
• Abondon interfaces, supports standard DB9 serial port (RS232, RS485) and RJ45
• Support Fingerprint Reader and handwriting input
• Support front camera and rear camera

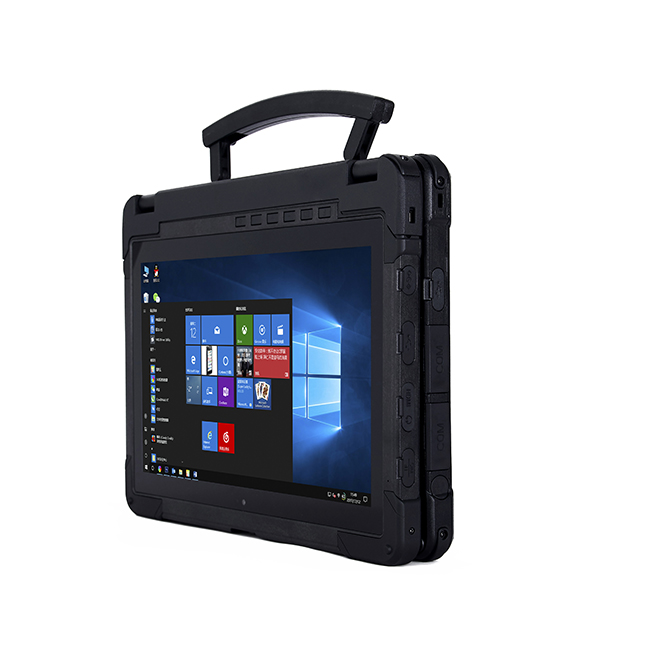

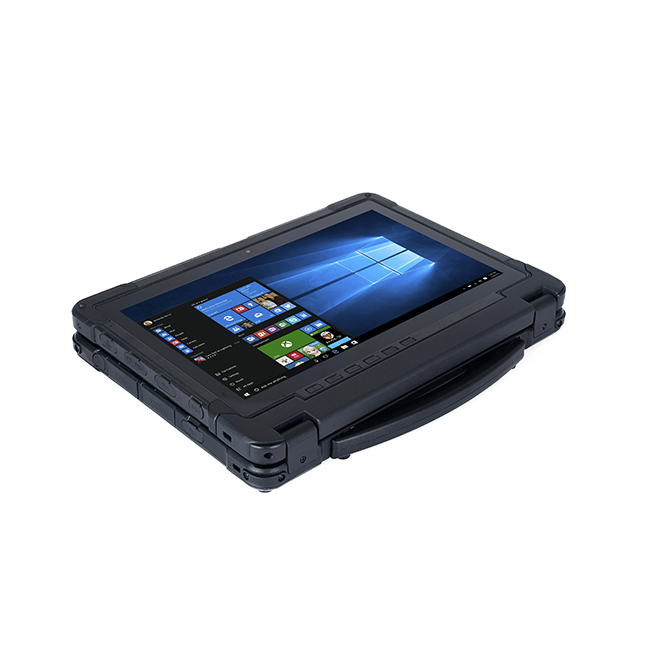

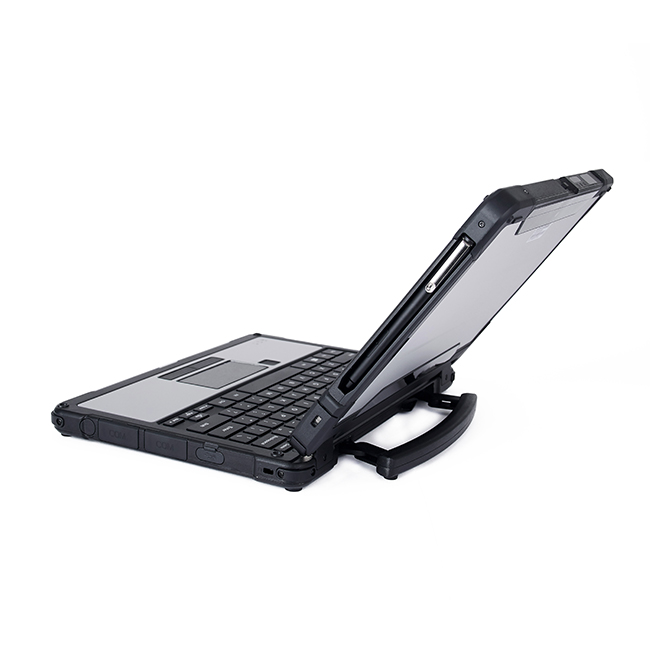

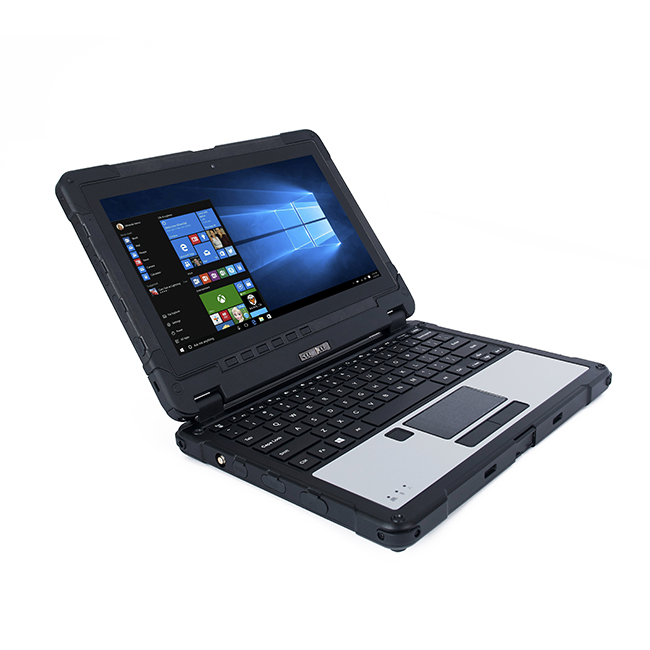

RN1101 is a 11.6-inch IP65 Protective Grade Windows 10 Rugged Notebook,which could support Windows 10 home/pro/IOT/64bit OS. Because the design between complete host device/tablet and keyboard is detachable, sometimes RN1101 could use as a handheld tablet. RN1101 has been designed with 8GB DDR4L and 128GB NGFF SSD for system fluency. The High – intensity Corning gorillas glass LCD panel endows the terminal with very good experience. RN1101 also has abondon interfaces, could standard DB9 serial port (RS232, RS485), HDMI and RJ45. Therefore, RN1411 has been widely used in Smart Factory, Oil Exploration, Vehicle/Pipeline/Outdoor detection, Police Law Enforcement, Logistics, Warehouse, Medical treatment, Services etc

System Hardware Configuration
Type Details Decription Optional
OS OS version Windows 10 home/pro/IOT Enterprise /64bit OS Additional cost to activate Licence
CPU Type Intel®kabylake Core™ m3-7Y30/ Skylake M3-6Y30 NA
Speed 4M Cache, 2.60 GHz NA
GPU Type Intel® HD Graphics 515 NA
RAM DDR4L 8GB 4GB
SSD NGFF SSD 128GB  M.2 256GB/512GB
Honeywellswitch hall hall NA
G_sensor Built-in g-sensor NA
Mechanical Dimension 305*205*16.5 mm (host) NA
Weight Bare machine 3140g NA
Device Color Black NA

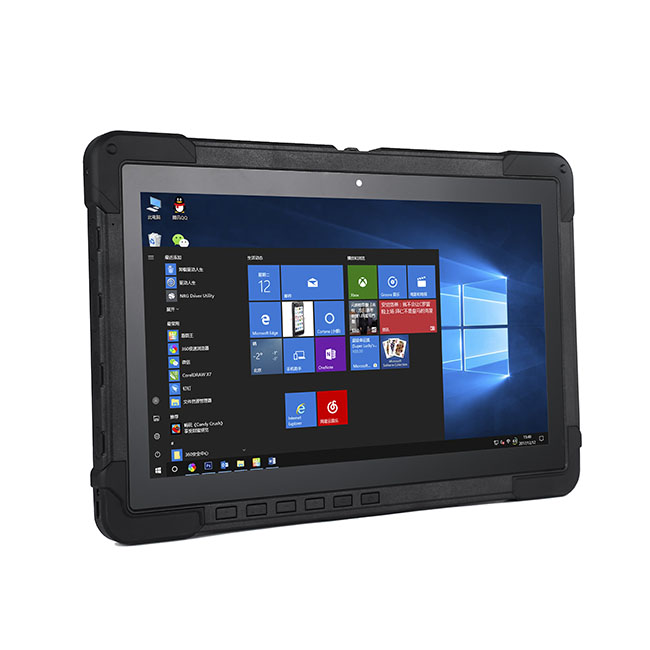

LCD Screen size 11.6 inch   16:9 NA
Resolution 1920(H)×1080(V) FHD NA
Brightness 350cd/㎡ Optional SLR sunlight visible film
Touch panel G+G,Corelle gorilla, hardness over 7H, scratch resistant,support windows ink Optional SLR sun visible film
Camera Front Front 2.0MP NA
Rear Rear 8.0MP  (USB) NA
Speaker Built-in Embedded 8Ω/0.8W waterproofBOX horn x1 NA
Mic Built-in ×2  Internal  Digit MIC NA
Microsoft pen Built-in NA Microsoft pen,windows ink

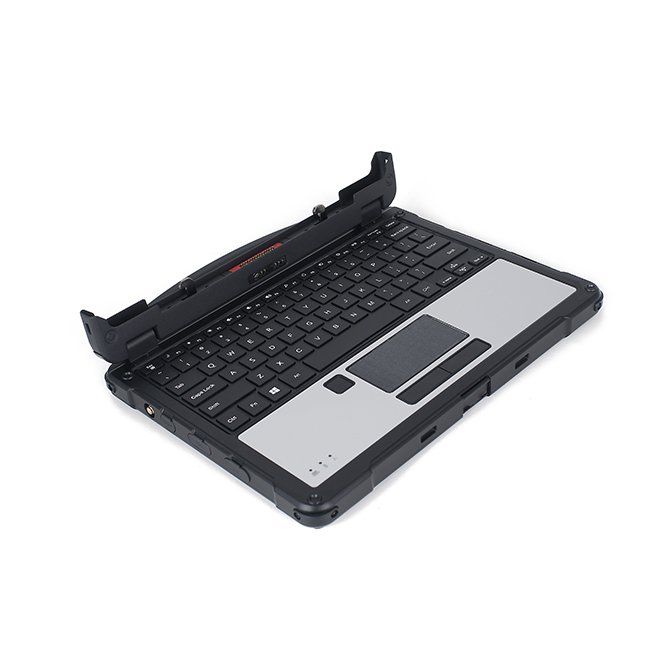

keyboard Built-in 78 key IP65  waterproof keyboard NA
Battery(host ) Type Built in Li_polyment,battery loadable NA
Capacitive 5000mHA/7.4V NA
Endurance 6 hours (default 50% volume, default 200 lumens brightness, play 1080p HD video) NA
Battery(keyboard) Type NA detachable polymer lithium ion battery
Capacitive NA 6300mHA/7.4V
Endurance NA 5 hours (default 50% volume, default 200 lumens brightness, play 1080p HD video)
Network Connections
Type Details Decription Optional
WIFI WIFI Modle WIFI 802.11(a/b/g/n/ac)  frequency 2.4G+5.8G double frequency WIFI NA
Bluetooth Built-in BT4.2 (BLE) class1  transmission distance:10m NA
3G Built-in Built-in Optional
4G Built-in Optional module Optional
GPS Built-in U-blox NEO-7,support :GLONASS,QZSS,GPS;acquisition sensitivity:-160 dBm;Cold start time:<30 second,Hot start time:<28 second,frequency:0.25 Hz … 10 MHz (configurable) 1.Select Beidou
2.The keyboard can be equipped with GPS module, which is used to connect the GPS antenna to the vehicle
Data Collection
 Two-dimension code optioanl Optional module Honeywell N3680   DXVA
Optical resolution: 5MIL
Scan speed:50 times/s
supportcode:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Fingreprint optioanl NA 070-Hello (FPC1020 sensor, capacitive press type)
FPC1020(sensor,Compression type of capacitance)
Fingerprint acquisition area:10mm x10mm üResolution:192x192pixel/508DPI

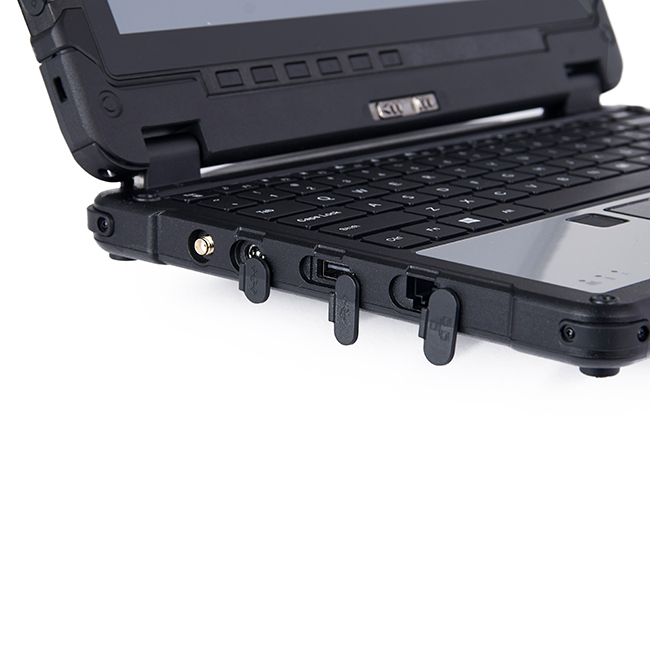

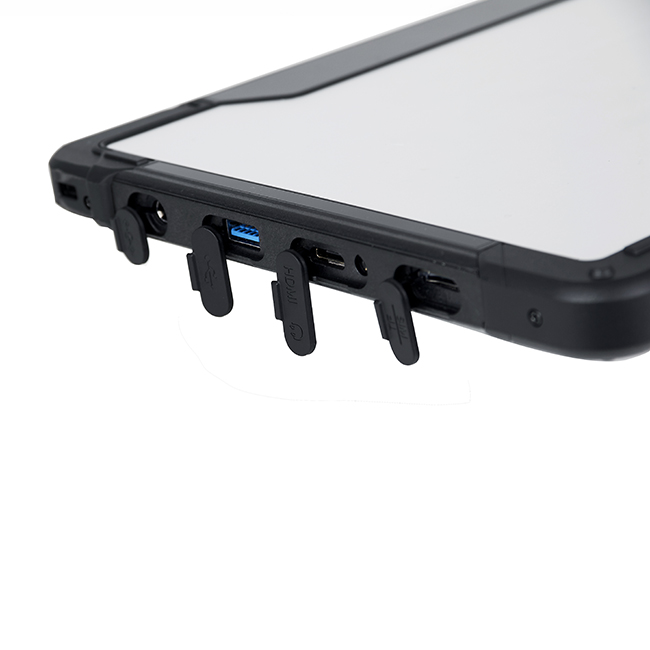

Interface
USB3.0 USB3.0 USB3.0*1 host NA
USB2.0 USB2.0 USB2.0*2 keyborad NA
Earphone Jack Earphone Jack ∮3.5mm standard earphone interface x1 host NA
HDMI C HDMI C HDMI C x1 host NA
TF Card TF Card support SDHC/SDXC   x1    max:128G host NA
SIM Card SIM Card SIM Card   x1 NA
DC (host) DC interface DC 12V 4A power interface  x1 host NA
GPS antenna interface SMA antenna interfaceSMA GPS_SMA x1 keyborad NA

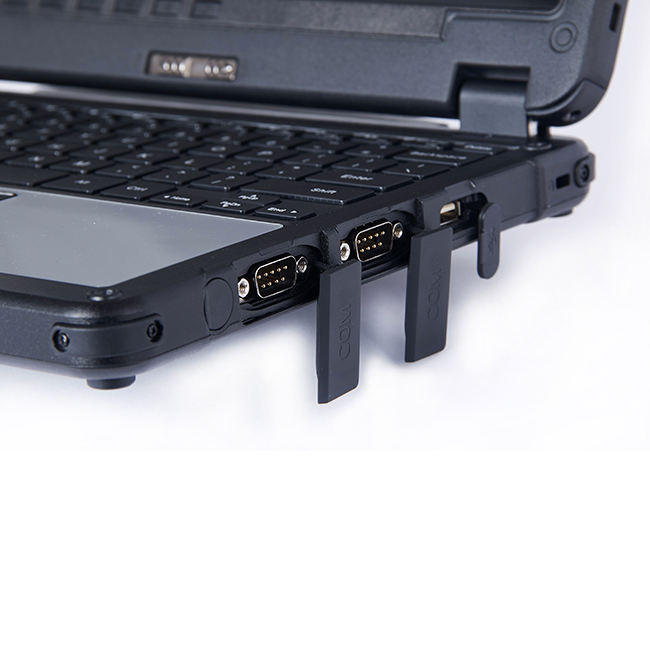

Serial port interface serial port  DB9 (RS232,RS485) ×2 keyborad
RJ45 port Ethernet 10/100Mbps self-adaption ×1 keyborad NA
DC (keyboard) DC interface DC 12V 4A power interface x1 NA
Air socket Air socket NA Air socket    x1
Button
power Power Button  x1 NA
volume volume+_ Volume subtraction x2 NA
Windows home Windows home Windows home x1 NA
system keyboard system keyboard System soft keyboard  x1 NA
F KEY barcode scan key Barcode scanning (back of machine) NA
P1 P1 Used to lock or open screen  ×1 NA
Product Certificate
Type Details Decription Optional
Certificate System Device IP65, CE NB,MIL-STD-810G, NA
Battery UN38.3,MSDS,IEC62133 NA
Reliability
Product Reliability Fall  Height 100cm composite wooden floor boot status NA
Operate Temp -10 °C to 50 °C NA
Store Temp -30 °C to 70 °C NA
Humidity Humidity: 95% Non-Condensing NA

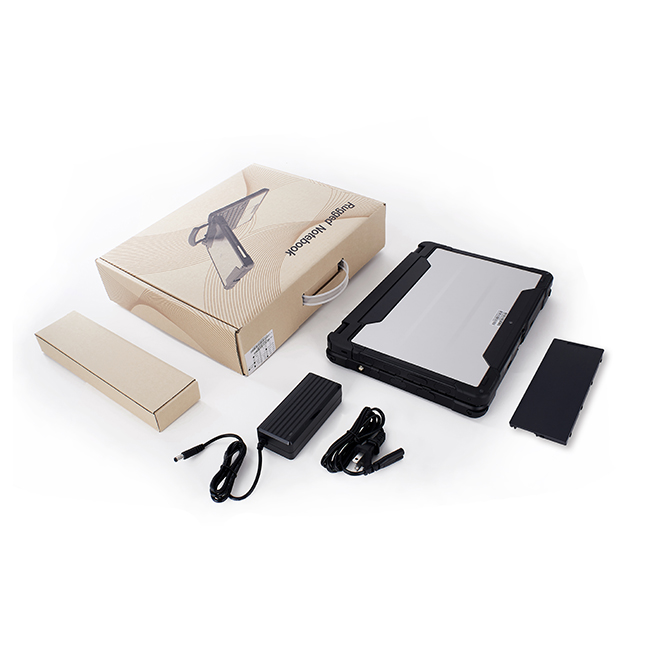

Standard Accessories
Power Adaptor Standard AC100V ~ 240V、50Hz/60Hz outputting DC 12V/4A
