6-inch Full Rugged Handheld Based Android 8.1 And Corning gorilla glass TP
Feature
• Support Andorid8.1 OS
• Meet solutions for Logistics, Warehouse, Retail, Services etc.
• Corning gorilla glass for touch panel
• Support wide frequencies for cellular including 3G, 4G LTE
• Support dual band WIFI 802.11(a/b/g/n), 2.4G+5.8G
• Support 1D/2D barcode scanner
• Support USB2.0 OTG
• Support TF card up to 128G
• Support docking charger
• Support NFC(13.56M)
• Support accurate GPS Navigation
• Up to IP65 protection level, optional Android or Window10 home for OS
• Support wrist strap for wide applications
RH611 is a Android8.1 based 6-inch Rugged Terminal with integrated modules 3G/4G, GPS, Wifi etc, and optional modules NFC, Barcode Scanner etc，The special designed enclosure makes it has a good ingress protection rating of IP65. RT611 has built-in dual band WIFI, 802.11(a/b/g/n), support frequency 2.4G+5.8G and the Bluetooth4.0. GPS model and supported wide frequencies cellular module for data communication. Corning gorilla glass for touch panel could give you the excellent experience. And the 5000mAh battery could suppout a long-time use. RH611 has been widely used in may applications like vehicle logistics, service, remote control, Warehouse, Retail etc.
| System Configuration | CPU | Type | MT8735A Quad-core ARM® Cortex-A53 MPCore TM |
| Speed | 1.1GHz | ||
| GPU | Type | ARM MaliT720-MP3 450MHz | |
| RAM | LPDDR3 | 2GB/ LPDDR3 (Optioanl 3G) | |
| ROM | Emmc | 16GB （Optional 32GB） | |
| E-compass sensor | Built-in | E-compass sensor | |
| G_sensor | Built-in | Gravity acceleration sensor | |
| Light sensor | Built-in | Yes | |
| Range sensor | Built-in | Yes | |
| Led Indicate | Built-in | In charging led Light colour is red when charging, become green when full charge, red light flicker when low power. | |
| Operation System | OS Version | Android7.0 or Android 8.1 | |
| Mechanical | Dimension | 185*93*20.7mm | |
| Weight | Unit：380g | ||
| Device Color | Black | ||
| IP Rating | IP65 | ||
| Display | LCD | Screen Size | 5.98″，16:9 (TP and Glass use full lamination technolog ) |
| Resolution | 720*1280 IPS Screen | ||
| Brightness | 430 Nit | ||
| TP | Touch Panel | 5 Point Touch Capacitive, G+F, Corning gorilla glass | |
| Others | Camera | Front | Front:2.0MP |
| Rear | Rear 8.0MP,with flash and auto-focus ( optional13MP) | ||
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 | |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ | |
| Battery | Type | Li_polyment,Battery loadable | |
| Capacity | 5000mHA/3.7V | ||
| Endurance | 8hrs(Default50%volumn, Default 200lumens brightness, Play1080P video) | ||
| Data Communication | WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance：10m | |
| 2G/3G/4G LTE | Optional | Support | |
| GPS | Built-in | Support:GPS; Capture sensitivity::-160 dBm；Cool Start Time：<30 seconds，Hot start time：<28seconds | |
| NFC | Built-in | NFC 13.56MHz | |
| Data Collection | 1D Barcode Scanner | Optional | Honeywell N4313 |
| 2D Barcode Scanner | Optional | Support Honeywell3680 | |
| Interface | TF slot | Extensive External Memory | support TF x1 max：128G |
| SIM Slot | SIM Card | SIMx1 | |
| USB2.0 interface | Power and Data Transmission | Micro usb2.0*1 OTG | |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 | |
| System HOME Key | Home | HOME*1 | |
| Barcode | Barcode | Barcode *2 | |
| POGO PIN*2 | Docking Charger | *1（4pin Machine Below）2in used in docking charger，2pin used in USB expand | |
| Power on | Press Key | Power Key x1 | |
| Volume + – | Press Key | Volume + – x2 | |
| Others | Press Key | MENU*1 | |
| Reliability | Drop Height | 1.2m Composite wood floors, in operation status | |
| Operate Temp | -10 °C to 50 °C | ||
| Store Temperature | -30 °C to 70 °C | ||
| Humidity | Humidity: 95% Non-Condensing | ||
| Accessories | USB cable | Standard | micro USB cable 5P L=1.2M 4 core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 5V/2.5A USA Standard CE approval |
|

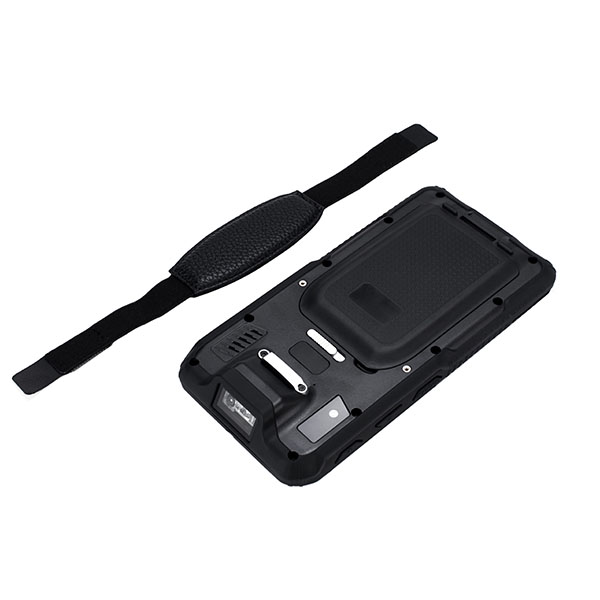

| Strap | Standard | Extensible belt on the back case, convenient to hold | |
| Cradle/ Scan Trigger | Optioanl | ||

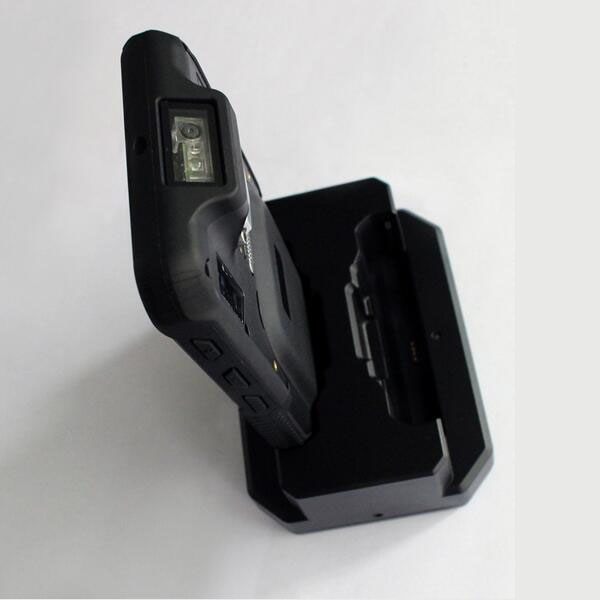

| Charging-dock | Optioanl | ||
