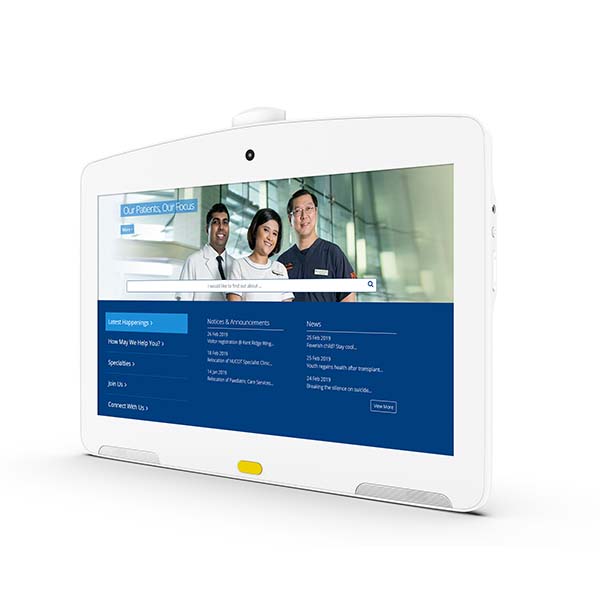

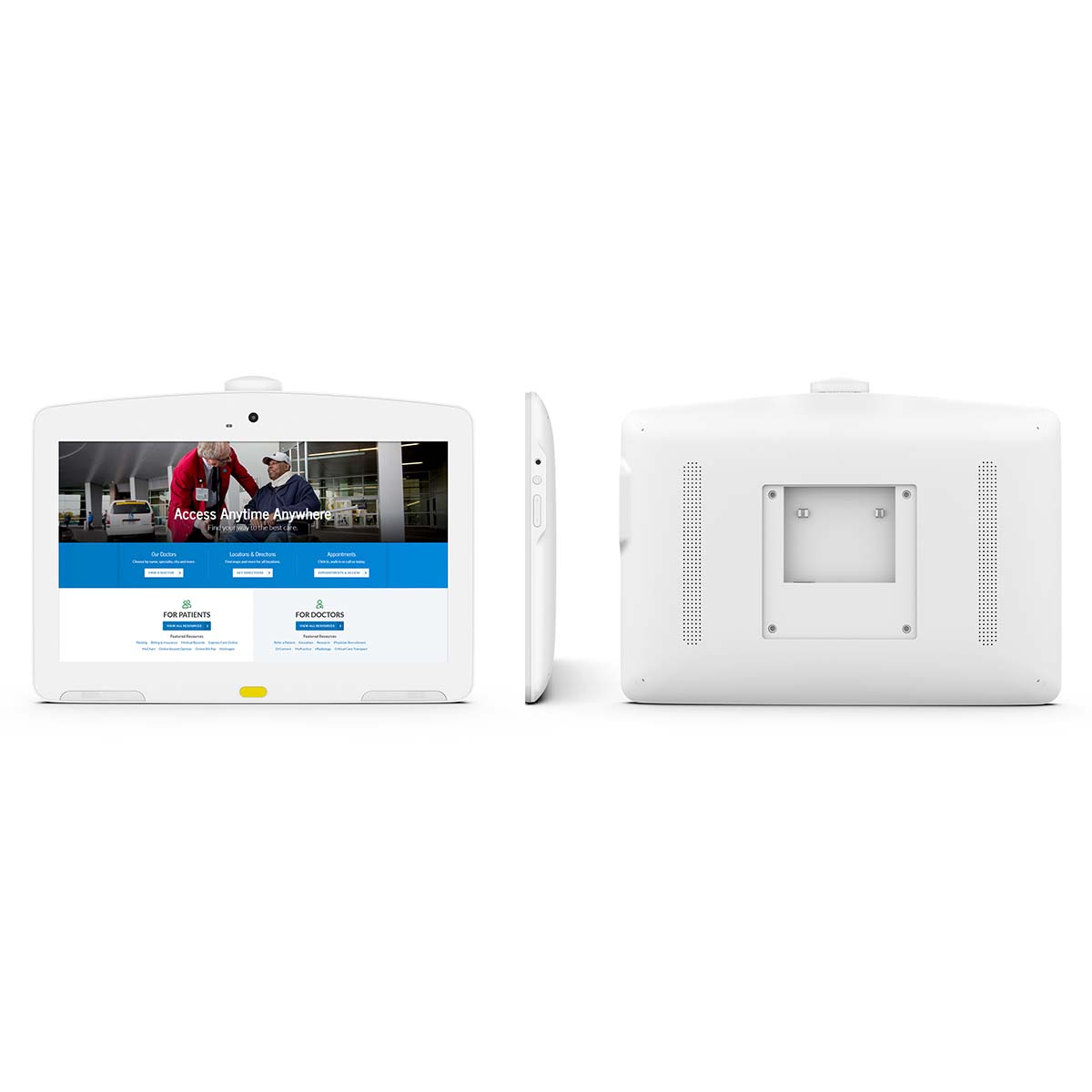

13.3-inch Hospital Point Of Care Terminal
Feature
• Support Android8.1 OS
• G+G CTP for excellent experience
• 13.3″ IPS panl with 1920*1080 resolution and supports 4K video
• Support WIFI 802.11 b/g/n, Bluetooth 4.0 and NFC
• Support USB port, serial port and RJ45 port with POE function
• Support front camera with cover shield
• Anti-bacterial plastic for using in hospital environment
• Support customization, some changes to mechanical design or ODM service based MOQ
• Built-in Light Sensor, Equiped with 100M/1000M Ethernet RJ45
• Design with 100x100mm VESA hole, easy to install like fixed mounted on wall, arm or set up on the table.
| System Hardware Configuration | CPU | Type | Rockchip RK3288 ARM® Cortex™-A17 Quad-core |
| Speed | 1.8GHz | ||
| GPU | Type | Integrated 2D/3D Mali-T764 GPU, up to 600MHz | |
| RAM | DDR3 | 2G | |
| ROM | EMMC | 16G | |
| Light Sensor | Bulit-in | ||
| Operation System | OS Version | Android8.1 | |
| Mechanical | Dimension | 337.3 x 238.1 x 25.1mm | |
| Weight | 1.1KG | ||
| Device Color | White | ||
| Shell Material | ABS anti-bacterial plastic | ||
| Display | LCD | Screen Size | 13.3″ 16:9 LCD IPS panel |
| Resolution | 1920*1080 | ||
| Brightness | 250 cd/m2 | ||
| View angles | 80/80/80/80(L/R/U/D) | ||
| Contrast ratio | 700 | ||
| TP | Touch Panel | 10 point Capacitive, G+G | |
| Front Camera | 2.0MP (with cover shield) | ||
| Others | Speaker | Built-in | 2*2W |
| Mic | Built-in | ||
| Button | Power/volume+/volume-/call(home) | ||
| Wall mounting | VESA,100x100mm | ||
| Language | Multi-language | ||
| Working temp | 0℃ to 40℃ | ||
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4k | |
| Audio format | MP3/WMA/AAC etc. | ||
| Photo | Jpeg, BMP etc | ||
| Data Communication | WIFI | 802.11b/g/n | |
| Bluetooth | Bluetooth 4.0 | ||
| Ethernet | 100M/1000M Ethernet | ||
| NFC | 13.56M(Optional) | ||
| Interface | USB Device | Micro USB OTG | |
| Power Jack | DC power input | ||
| RJ45 | 100M/1000M Ethernet | ||
| Serial port | Serial port | ||
| Earphone Jack | 3.5mm earphone | ||
| Accessories | User manual | Standard | |
| Power Adaptor | Standard | Adapter,12V/1A | |
MF13 has been specially designed for the use in hospital or clinical environment, this terminal is based Android8.1OS with 13.3“ screen and powered by Rockchip3288 Quad-core processor, the 1920×1080 resolution G+G and Capactive Touch Panl ensures the excellent experience. It supports WIFI 802.11 b/g/n, USB port and 100M/1000M Ethernet RJ45R with POE function, To meet applications in hospital, the front camera has equiped with front camera with sliding privacy screen. Beside above features, and the shell requires Anti-bacterial plastic. and 100×100 Vesa hole makes it easy to install like fixed mounted on wall, arm or setting up on the table. Therefore, our Terminal can be arm-mounted on bedside or wall-mounted in doctor room to allow doctors and patients visit medical records based cloud service, or medicine management in pharmacy, but for Patients, they can also access education, their current care team, meals order, communicating with their family and entertainment etc through our terminal to create a personalized experience.
