8-inch Rugged Terminal with high brightness
Feature
• Support Andorid9.0 OS
• Dragontrail glass for touch panel, with Minimum 700 nits brightness
• Support wide frequencies for cellular including 3G, 4G LTE
• Support dual band WIFI 802.11(a/b/g/n/ac), 2.4G+5.8G
• Support 1D/2D barcode scanner
• Support USB3.0 connector
• Support HDMI port
• Support docking charger docking extension
• Support NFC
• Support accurate GPS Navigation
• Up to IP67 protection level
• Support wrist strap for wide applications
• 2.0MP front camera and 13.0MP rear camera
| System Hardware Configuration | CPU | Type | Qualcomm MSM8953 Octa-core |
| Speed | 2.0GHZ | ||
| GPU | Type | Adreno 506 1920 × 1200 @ 60 fps | |
| RAM | LPDDR3 | 4GB | |
| ROM | Emmc | 64GB | |
| G_sensor | built-in | Gravity acceleration sensor | |
| L-Sensor | built-in | Ambient Light Sensor | |
| M-semsor | built-in | Magnetism Sensor (Compass) | |
| Gyro-Sensor | Soft | Virtual Gyro | |
| Indicator light | build in | Red light will flash when device has low power. red long light when power more than 20%, green long light when full power | |
| OS | OS Version | Android 9.0 | |
| Mechanical | Dimension | 225.6*144.6*21.5mm | |
| Weight | device:710g | ||
| Device Color | Black | ||
| Display | LCD | Screen Size | 8“ 16:10 |
| Resolution | 1280×800 IPS LCD | ||
| Brightness | Minimum 700cd/㎡ | ||
| TP | Touch Panel | Multipoints Capacitive，G+G， Rigidity: above 7H-Anti-scratch，support handwriting |
|
| Others | Camera | Front | 5.0MP |
| Rear | 13MP auto-facus with flashlight | ||
| Speaker | build in | Embedded 8Ω/0.8W waterproof speakerx 1 | |
| Mic | build in | Sensitivity:-42db, output resistance2.2kΩ | |
| Battery | Type | build in polymer li-ion battery | |
| Capacity | 3.7V/8500mAh | ||
| Endurance | About 10Hrs(default 50% volumn，default 400 lumens brightness，play 1080P HD video) | ||
| Data Communication | WIFI | built-in | 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | built-in | BT4.1 (BLE) class1.5 transmission distance：10m | |
| 4G LTE | built-in | support | |
| GPS | built-in | Capture sensitivity:-160 dBm；Cool Start Time:<30 seconds, Hot start time:<30 seconds | |
| NFC | built-in | Support | |
| Data Collection | 1D Barcode Scanner | optional | MOTO SE655E100R |
| optical resolution: 5mil | |||
| SCAN Speed: 50 times/s | |||
| support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 1 | |||
| 2D Barcode Scanner | optional | Zebra SE2707 Hardware decoder | |
| optical resolution:5mil | |||
| scan speed:50 times/s | |||
| support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | |||
| Interface | TF slot | Extensive External Memory | support TF x1 max：128G |
| SIM card | SIM card slot | SIM card slot x1 | |
| USB Interface | Extend external memory and data transfer | Standard USB 3.0*1 USB type C x1(data&charing) | |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 | |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 (Overvoltage protection of circuit) |
|
| HDMI | Video Output | HDMI 1.4a Type C x1 | |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 | |
| IP rating | Device | IP67 | |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | |
| Operate Temp | -10 °C to 50 °C | ||
| Store Temp | -30 °C to 70 °C | ||
| Humidity | Humidity: 95% Non-Condensing | ||

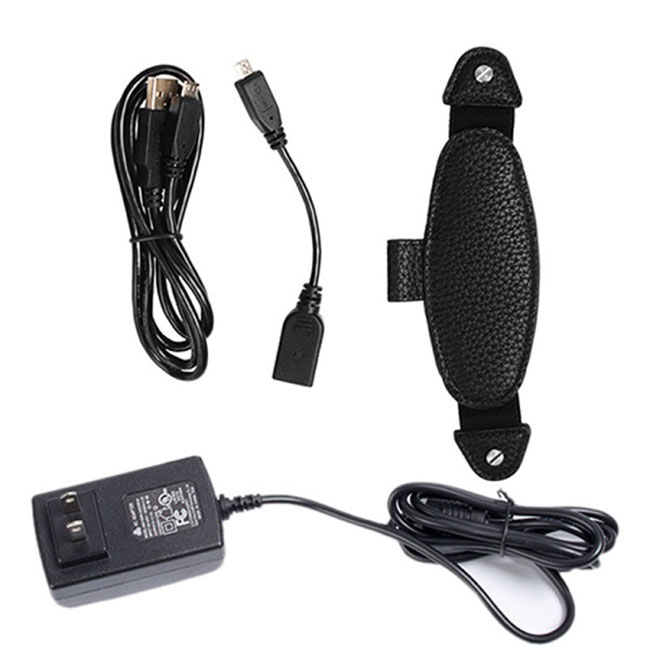

| Accessories | OTG cable | Standard | USB OTG to MICRO USB cable length:45mm |
| USB cable | Standard | USB to micro 5P L=1.2M 4core aluminum foil shield cable | |
| Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 5V/3A USA Standard CE approval (optional: EU Standard) | |
| Strap | Standard | Extensible belt on the back case, convenient to hold | |

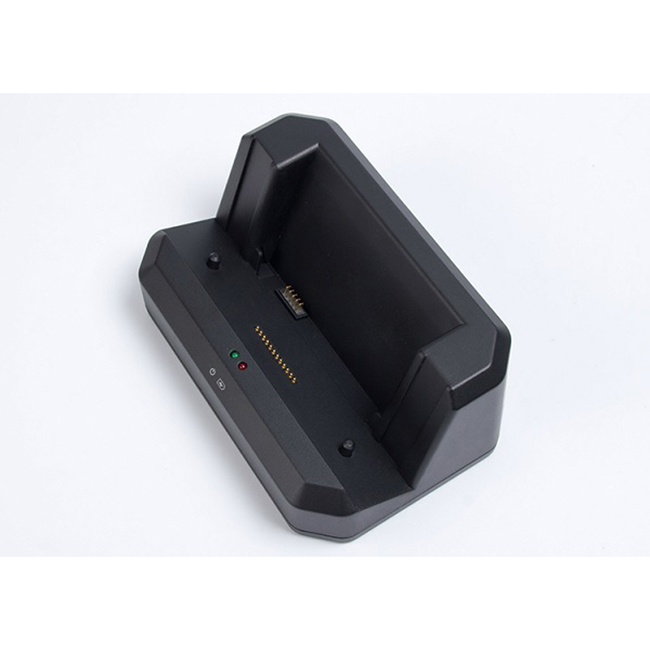

| charging-dock | optional | 3xUSB2.0, 1xRJ45, 1xDC-in | |

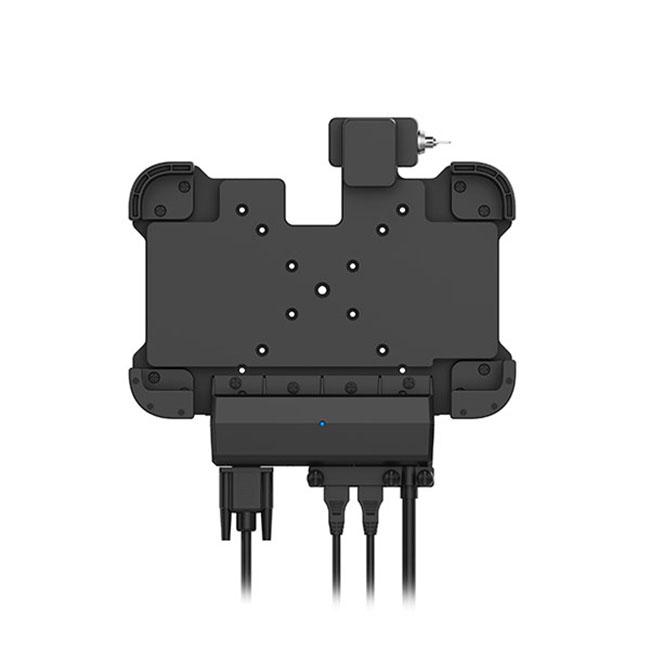

| holder/bracket | optional | With 1xDB9 serial port，2xUSB2.0, 1xRJ45 | |
| TP protective film | optional | ||

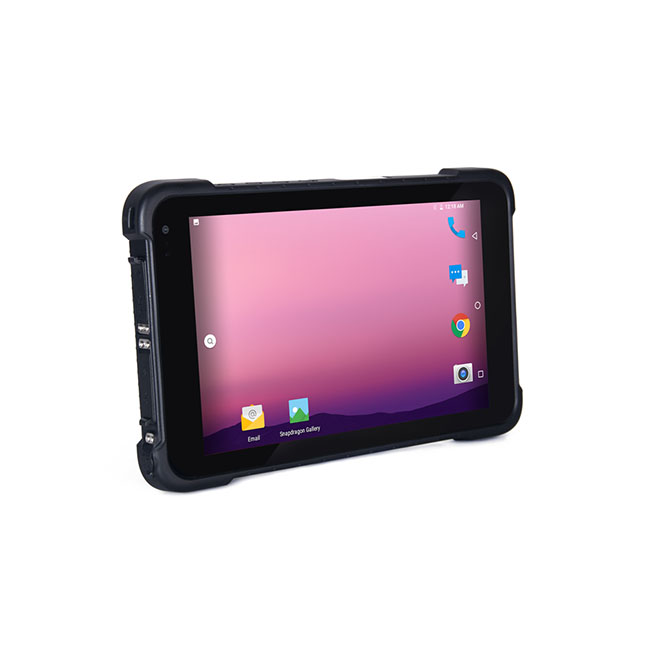

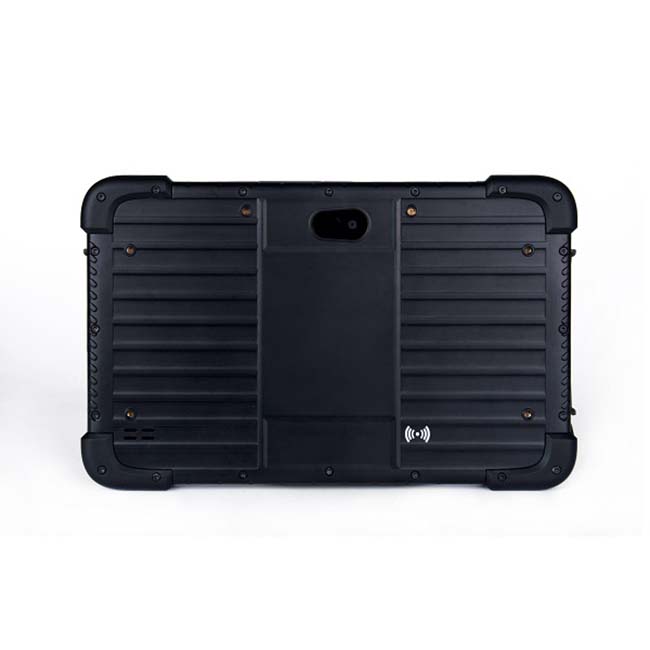

K86 is Android9.0 based 8-inch Rugged Terminal with high brightness panel for some special applications. The terminal adopts Qualcomm MSM8953 Octa-core processor with 2.0GHZ speed. The special designed enclosure endows it very good ingress protection rating of IP67. K86 has high-effective wireless data connection and transmission, dual band WIFI, 802.11(a/b/g/n/ac), support frequency 2.4G+5.8G and the Bluetooth4.1. Also, the navigation model supports GLONASS,QZSS,GPS etc. Dragontrail glass for touch panel could give you the excellent experience. And the 8500mAh battery supports a long-time use. Clients could put the device on the charger dock or take it away as a handheld device. if ethernet RJ45 is required, the charging-dock or bracket would be a good option. therefore, our K86 is widely used in may applications like vehicle dispatching, fleet management, mining &oil & industrial control, marine etc.
