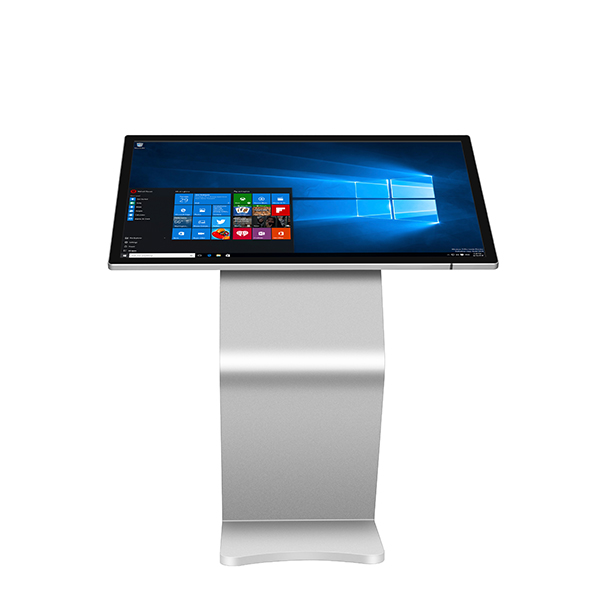

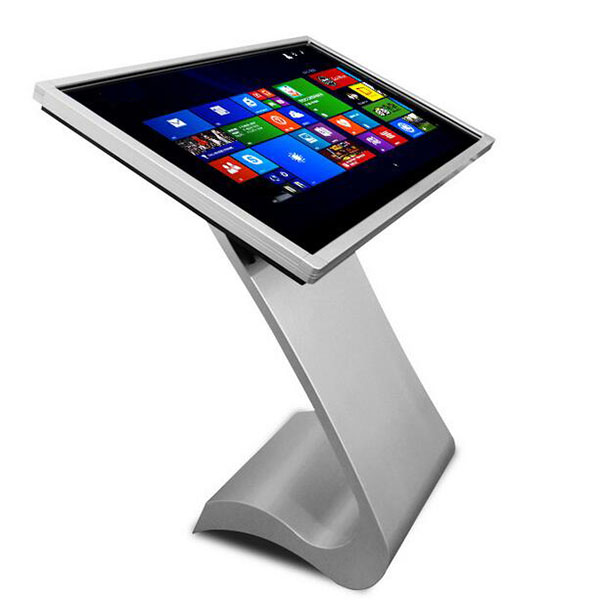

Interactive Touch Kiosk Stands For Bank, Hospital, Government Etc
Feature
• Support wide screen sizes to select from 10 inch to 98 inch
• Wide solutions with supported Operation System Android, Windows and Linux
• 4K supported resolutions
• Optional touch type includes IR / PCAP/ Touch ifoil
• Available to customize color and add Logo in mass production
• Abondon interfaces like USB, HDMI, RJ45 etc
• Slim and smart design; Durable steel frame, Easy to install and operate
• Moisture proof, Antirust, Anti-acid, Anti-dust, Static free
• Meet the applications in Bank, hospital, shopping mall, government, restaurant, movie theater, hotels etc
| Panel Datasheet | Panel type | LED Panel |
| Panel Size | 10.1″ to 98″ etc | |
| Brightness | 250nits / 300nits / 350nits / 400nits / 450nits / 500nits | |
| Resolution | 800*600/1024*768/1280*800/1366*768 /1920*1080 / 3840*2160（4K) |
|
| Contrast Ratio | 1000:1/ 1200:1 / 1400:1 / 4000:1 | |
| Responsive Time | 3ms~8ms | |
| Viewing Angle | H160/V140，H160/V150，H170/V170，H178/V178 | |
| Panel Life | 50000hrs | |
| Display mode | Landscape, portrait, full screen, split screen | |
| Optional Panel Brand | AUO, Sharp, Samsung, LG, Panasonic etc | |
| Touch Panel Datasheet | Touch Max Resolution | 4980*4980 |
| Touch Type(Optional) | IR / PCAP/ Touch ifoil | |
| Touch point | 10points | |
| Transparency | > 90%, Up to 100% | |
| Response Speed | <12ms | |
| Touch precision | 0.625mm | |
| Minimum Touch | 3mm | |
| Supported Operation System | windows/android/linux | |
| Material | Fashionable and delicate tempered glass protective panel Aluminum alloy profile frame, baking process High quality cold-rolled steel plate back cover The inner frame and mounting plate are made of anticorrosive and rust-proof galvanized plate The surface for rust phosphating, electrostatic spray and spray oil paint, etc. |
|
| Android version | CPU | RK3288 quad core / RK3399 (optional：Allwinner A20/A83/A83T Octa-Core etc) |
| Operation System | Android 6.0/7.1 | |
| RAM | 2G/4G | |
| Memory | 8GB/16G/32G | |
| Bluetooth | supported | |
| WIFI | 802.11b/g/n | |
| RJ45 | Supported | |
| Firmware Upgrade | Upgrade from SD card/mini USB | |
| Interfaces | 2*USB, 1* HDMI, 1*SD, 1*MINI USB, 1*RJ45 | |
| File system | FAT(RW),FAT32(RW),NTFS® | |
| Video Format | 1080PDIVX/H264/H263/AVI/FLV/m2ts/mkv/mp4/MJPEG/ MPEG/rm/rmvb/MOV/BDAV/HTML5/vc1 |
|
| Audio Format | MP3, WMA, OGG, WAVE. | |
| Image Format | BMP/JPG/PNG/GIF/JPEG/TIFF | |
| Windows version | CPU | J1900/i3/i5/i7 |
| Memory | 2G/4G/8G/16G | |
| Hard Disk/SSD | 64G/128G/256G SSD | |
| Graphic card | INTEL HD Graphics 4000 | |
| WIFI | Atheros AR938x wireless network | |
| Bluetooth | optional | |
| Interface(I/O) | USB port*4, HDMI*1, VGA*1, audio, RJ45*1 | |
| Operation System | Windows | |
| Linux version | Optional | We have main-board to build device |
| Play mode: | Single repeat play, folder loop play, full loop play | |
| Speaker | Built-in 2 x speaker | |
| Working Environment | Working temp | 0ºC~50ºC |
| Storage temp | -20ºC~60ºC | |
| Working humidity | 20%~80%(noncondense ) | |
| Storage humidity | 10%~90%(noncondense) | |
| Power Supply | 12V/4A, 100~240V, 50/60GHz | |
| Warranty | one year | |
| Device colour | black; available to customize in mass production | |
| Packing | Export wood box | |
| Others | Slim and smart design; Durable steel frame, Easy to install and operate; Moisture proof, Antirust, Anti-acid, Anti-dust, Static free, available to customize color and add Logo | |
| Applications | Bank, hospital, shopping mall, government, supermarket, restaurant, movie theater, retail stores, hotels, airports, railway stations etc | |
Interactive Touch Kiosk here is a series for Kiosk Stands terminals with available panel size 10“ to 98”, the series products use wide solutions with supported Operation System Android, Windows and Linux. The high resolution of panel and top panel brands like AUO, Sharp, Samsung, LG, Panasonic etc are available to select. You could decide whether touch function is needed in your projects. To meet most of the applications, the interfaces like USB, HDMI, RJ45 was designed as a standard. Besides, to ensuere good quality, we have requirements to the material like tempered glass protective panel, Aluminum alloy profile frame, baking process. High quality cold-rolled steel plate back cover. Therefore, such series standard digital signage products are widely used in Bank, hospital, shopping mall, government, supermarket, restaurant, movie theater, retail stores, hotels, airports, railway stations etc, if you are interested, please feel free to let us know your detailed requirements.
