K12

12-inch IP65 Rugged Android Windows Terminal with HDMI, DB9, RJ45

Feature

• Support Windows 10 / Android 5.1
• G+G Corning gorrila glass and 1280×800 resolution for touch panel
• Support 4G LTE for data communication
• Support standard DB9 connector (RS232,RS485)
• Support optional 1D/2D barcode scanner
• Support 12600mAh for long time use.
• Support HDMI port, Serial Port and RJ45 port
• Support USB2.0 & USB3.0 connector
• Support NXP NFC(13.56M)
• Support accurate GPS Navigation
• Up to IP67 protection level

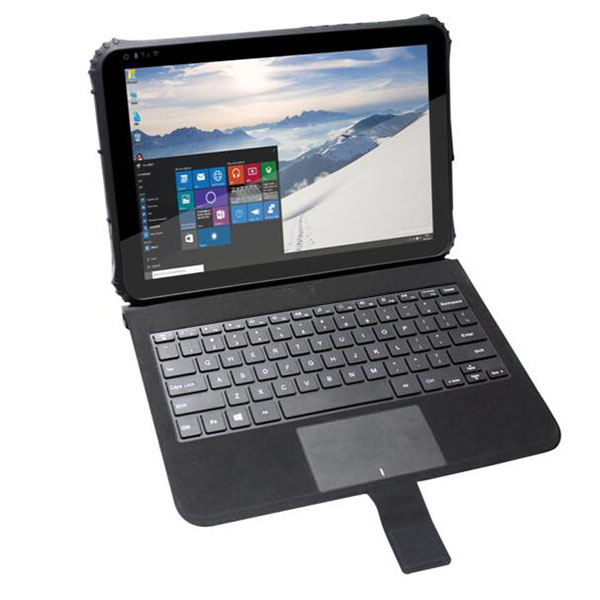

• Support wrist strap and leather keyboard
• 2.0MP front camera and 5.0MP rear camera
• Model K12S based Intel®Kabylake Core™ m3-7Y30 / Skylake M3-6Y30 (up to 2.60 GHz) is Optional to meet your higher requirements.





System Hardware Configuration CPU Type Intel cherry Trail Z8350(Model:K12)
Intel®Kabylake Core™ m3-7Y30 / Skylake M3-6Y30(K12S)
Speed 1.44Ghz-1.84GHz
GPU Type Intel® HD Graphics
RAM DDR3L 4GB
Flash Emmc 64GB   (128G optional)
G_sensor built-in gravity sensor
Operation System Android Version Windows 10 IOT   Default language:English;
Android 5.1
Mechanical Dimension 319.6*216*23.4 mm
Weight Main Unit: 1500g
Device Color Black

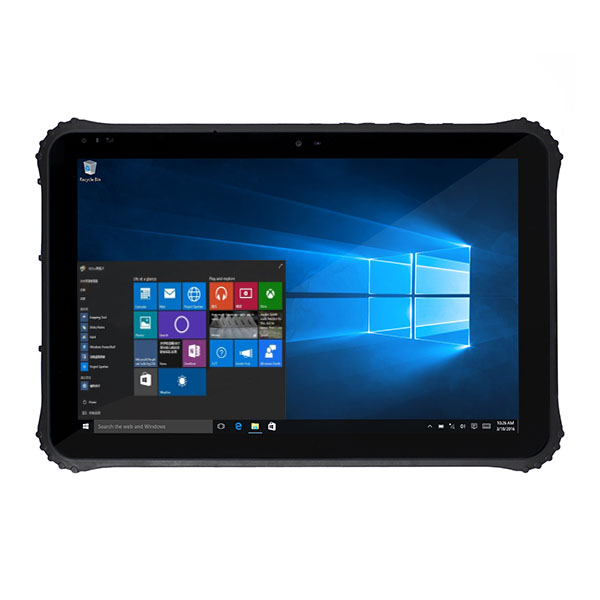

Display LCD Screen Size 12.2 inch   16:10
Resolution 1920*1200 IPS screen
Brightness 280Nit
TP Touch Panel 10 points Capacitive,G+G, Corning gorrila glass
Others Camera Front 2.0MP
Rear 5.0MP
Speaker built-in Embedded 8Ω/0.8W waterproof speakerx 2
Mic built-in Sensitivity:-42db, output resistance2.2kΩ
Battery Type Lithium-ion polymer / swappable
Capacity 3.7V/12600mAh
Endurance 8Hrs (default 50%volumn, 200lumens brightness, play 1080P HD video)
Data Communication WIFI WIFI module WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G dual band WIFI
Bluetooth built-in BT4.2(BLE) class1 transmission distance:10m
3G built-in built-in
4G LTE Optional Optional
GPS built-in U-blox NEO-7,Support:GLONASS,QZSS,GPS;Cold start:<30S,Hot start:<28S
NFC optional NXP NFC 13.56MHz  Support ISO/IEC : 14443A/14443B/
15693/18092/mifare protocol,read card distance:4cm
Data Collection 1D Barcode Scanner optional MOTO  SE655E100R
Optical Position:5mil
Scan speed: 50/s
Symbol System:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2D Barcode Scanner optional Honeywell N3680   Hardware decoder
Optical Position:5mil
Scan speed:50/s
Symbol System:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Interface TF slot External Memory support TF   x1    max:128G
SIM slot SIM card slot SIM card x1

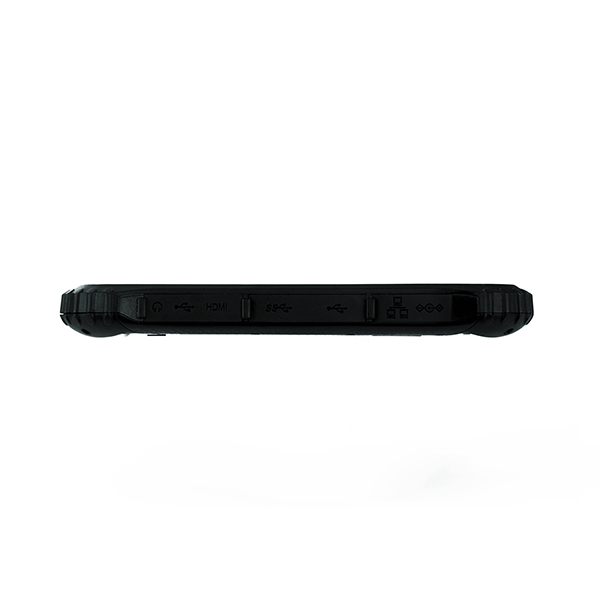

USB Interface Extend external memory and data transfer USB 2.0*2 (4pin) (Host)for windows
USB 3.0*1 (9pin)
Micro USB connector USB2.0 Micro USB x1
Earphone Jack Audio Output ∮3.5mm standard earphone jack  x1

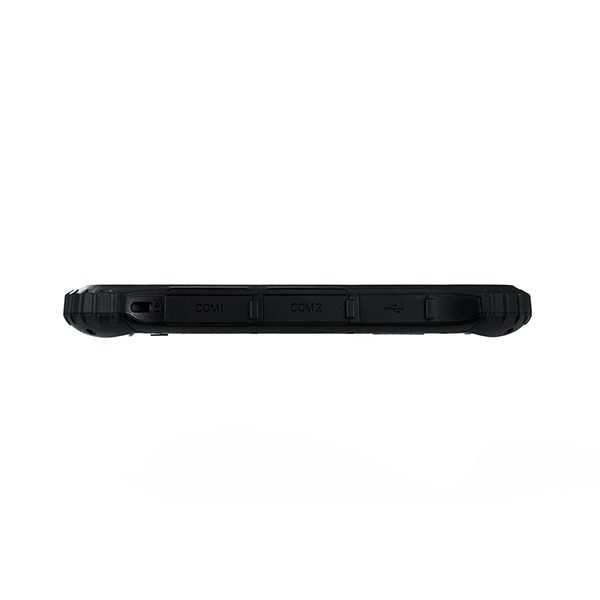

DB9 Serial Port  DB9 (RS232) ×1  DB9 (RS485) ×1
RJ45 Ethernet 10/100Mbps ×1
DC Jack Power DC 5V 3A ∮3.5mm Power connector  x1
HDMI Video Output HDMI 1.4a  x1

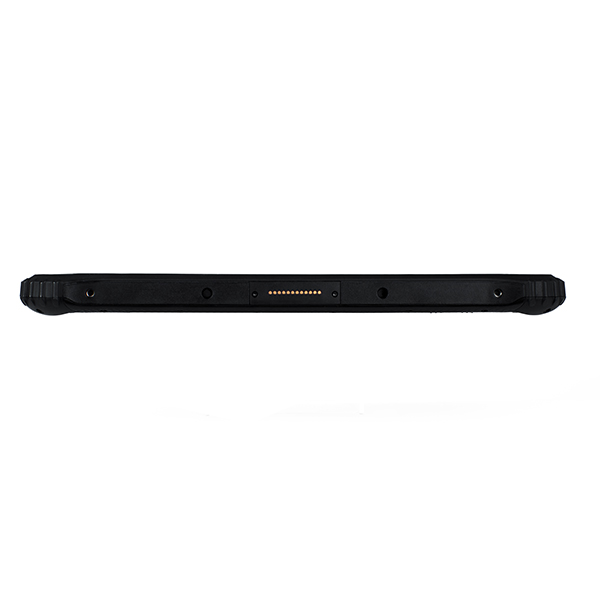

Extensive Slot pogo Pin 12pin  Pogo Pin   x1

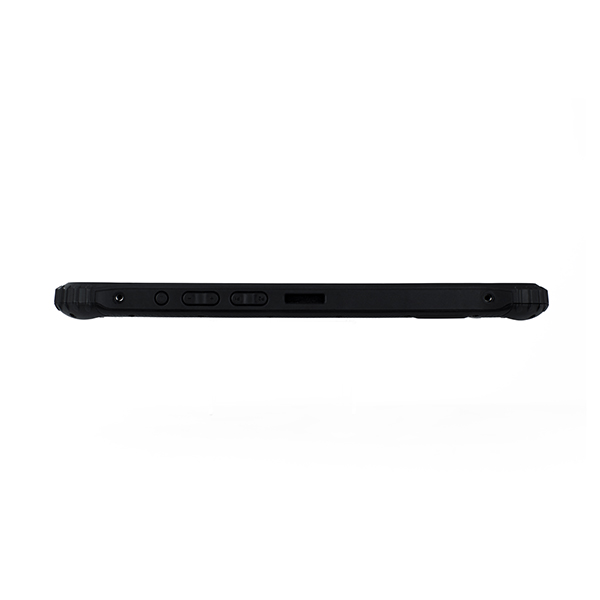

Button Key Power On/Off  x1
Volume volume up/down volume+- x2
F KEY Scanner Code scanner(back of unit) x1
Program Program Key Self define key  x2
Certifications Device IP65, CE, MIL-STD-810G
Battery UN3803,MSDS, IEC62133
Product Reliability Drop Height 100cm  composite wood floors, in operation status
Operate Temp -10 °C to 50 °C
Store Temp -30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing
Accessories USB cable Standard USB to micro 5P L=1.2M  4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V、50Hz/60Hz output DC 5V/3A
USA standard   CE approved
Strap Standard Extensible belt on the back case, convenient to hold
charging-dock optional 1xUSB2.0, 1xUSB3.0, 1xRJ45, 1xDC-in
holder/bracket optional With 1xDB9 serial port,2xUSB2.0, 1xRJ45
SLR Sunlight visible film optional For LCD touch panel
TP protective film optional

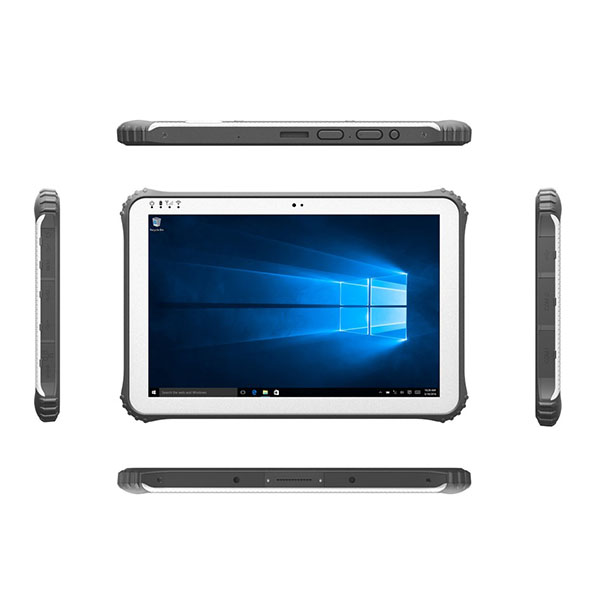

K12 is a Windows10/Android5.1 based 12.2-inch Rugged Tablet with optional modules 4G LTE, NFC, Barcode Scanner etc,this terminal is powered by Intel cherry Trail Z8350 Processors . The special designed enclosure makes it have a good ingress protection rating of IP65. K12 has high-effective wireless data connection and transmission,dual band WIFI, 802.11(a/b/g/n/ac), support frequency 2.4G+5.8G and the Bluetooth4.2. G+G Corning gorrila glass and 1920X1080 resolution for touch panel could give you the excellent experience. And the 12600mAh battery could suppout a long-time use. The device has 2.0MP front camera and 5.0 MP rear camera. Beside above features, the interfaces like USB, HDMI port, standard DB9 connectort and RJ45 port, are also helpful for various applications and development. Therefore, our K12 is widely used in may applications like vehicle dispatching, fleet management, mining &oil & industrial control, marine, goverment project etc.
If you are looking for a higher configuration than K12. We have K12S based Intel®Kabylake Core™ m3-7Y30 / Skylake M3-6Y30 (4M Cache, up to 2.60 GHz) to meet your high application requirements.
