V-86H

8-inch IP67 Rugged Windows10&Android5.1 Terminal with 4G+64G Memory and serial port,RJ45

Feature

• Support Windows 10 or Android5.1
• Dragontrail glass for touch panel
• Support 3G, 4G LTE
• Support dual band WIFI 802.11(a/b/g/n/ac), 2.4G+5.8G
• Support 1D/2D barcode scanner;
• Support USB2.0 connector;
• Support HDMI port;
• Support docking charger docking extension
• Support NXP NFC(13.56M)
• Support accurate GPS Navigation
• Up to IP67 protection level
• Support wrist strap for wide applications

System Hardware Configuration CPU Type Intel Cherrytrail Z8350
Speed 1.44Ghz-1.92GHz
GPU Type Intel® HD Graphics
RAM LPDDR3 4GB  (optional 2G)
ROM Emmc 64GB (Opitonal 32G/128G)
G_sensor built-in Gravity acceleration sensor
Operation System OS version Windows 10 HOME  (Optional : Windows 10  Pro)
Android5.1
Mechanical Dimension 228*145*16.5mm
Weight Device unit: 760g
Device Color Black
Display LCD Screen Size 8“   16:10
Resolution 800*1280 IPS LCD
Brightness 320Nit
TP Touch Panel Multipoints Capacitive,G+G,
Rigidity: above 7H-Anti-scratch,support handwriting
Others Camera Front Front:2.0MP   with indicator light
Rear Rear: 5.0MP
Speaker built-in Embedded 8Ω/0.8W waterproof speakerx 1
Mic built-in Sensitivity:-42db, output resistance2.2kΩ
Battery Type build in polymer li-ion battery
Capacity 3.7V/8500mAh
Note:  If use 4G configuration, battery capacity is 7800MAH
Endurance 8Hrs(default 50% volumn,default200 lumens brightness,play 1080P HD video)
Data Communication WIFI WIFI module WIFI 802.11(a/b/g/n/ac), frequency 2.4G+5.8G dual band WIFI,   intel 3165D2WG
Bluetooth built-in BT4.2 (BLE) class 1 transmission distance:10m
3G/4G LTE Optional Sample has to add as it already finished in SMT,
could remove in mass production
GPS built-in U-blox NEO-7,support :GLONASS,QZSS,GPS;
Capture sensitivity: -160 dBm;Cool Start Time:<30 seconds,
Hot start time:<28 seconds,
(Optional :U-blox M8N)
NFC built-in NXP NFC 13.56MHz   support ISO/IEC :14443A/14443B/15693/18092/mifare protocol,
Card reading distance:4cm
Data Collection 1D Barcode Scanner OPTIONAL MOTO  SE655E100R
Optional2 :MOTO 2707module
optical resolution: 5mil
SCAN Speed: 50 times/s
support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
2D Barcode Scanner OPTIONAL MOTO  SE4710   hardware decoding, Support Buzzer
optical resolution:5mil
scan speed:50次/s
support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Interface TF slot External Memory support TF   x1    max:128G
USB Interface Extend external memory and data transfer USB2.0*1 (Host)
Earphone Jack Audio Output ∮3.5mm standard earphone jack  x1
DC Jack Power DC 5V 3A ∮3.5mm Power connector  x1
(Overvoltage protection of circuit,Maximum protection voltage DC24V)
HDMI Video Output HDMI 1.4a Type C  x1
Extensive Slot pogo Pin 12pin  Pogo Pin   x1
Certifications Device IP67, CE NB, MIL-STD-810G
Battery UN38.3,MSDS, IEC62133
Product Reliability Drop Height 1.2m   composite wood floors, in operation status
Operate Temp -10 °C to 50 °C
Store Temp -30 °C to 70 °C
Humidity Humidity: 95% Non-Condensing
Accessories OTG cable Standard USB OTG to MICRO USB cable length:45mm
USB cable Standard USB to micro 5P L=1.2M  4core aluminum foil shield cable
Power Adaptor Standard AC100V ~ 240V、50Hz/60Hz output DC 5V/3A      USA Standard  CE approval (optional: EU Standard)
Strap Standard Extensible belt on the back case, convenient to hold
charging-dock optional 3xUSB2.0, 1xRJ45, 1xDC-in

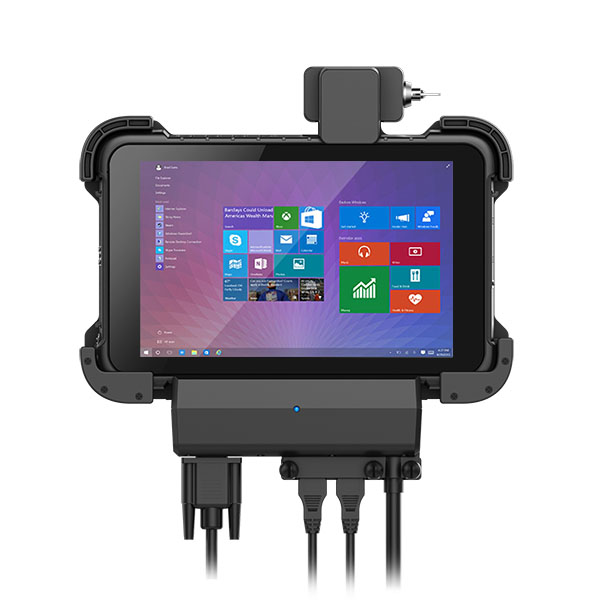

holder/bracket optional With 1xDB9 serial port,2xUSB2.0, 1xRJ45
TP protective film optional

RT831 is a Windows or Android5.1 based 8-inch Rugged Terminal with optional modules 3G, 4G LTE, GPS, NFC, Barcode Scanner etc,The special designed enclosure makes it has a good ingress protection rating of IP67. RT831 has high-effective wireless data connection and transmission,dual band WIFI, 802.11(a/b/g/n/ac), support frequency 2.4G+5.8G and the Bluetooth4.2. U-blox or other good GPS model for your navigation and location. Dragontrail glass for touch panel could give you the excellent experience. And the 8500mAh battery could suppout a long-time use. Clients could put the device on the charger dock or take it away as a handheld device. therefore, our RT831 is widely used in may applications like vehicle dispatching, fleet management, mining &oil & industrial control, marine etc.
