8-inch IP67 Rugged Windows10 Terminal with HDMI, 4G LTE, NFC, Barcode Scanner
Feature
• Support Windows 10 home OS
• Dragontrail glass for touch panel
• Support 3G, 4G LTE
• Support dual band WIFI 802.11(a/b/g/n/ac), 2.4G+5.8G
• Support 1D/2D barcode scanner;
• Support USB2.0 connector;
• Support HDMI port;
• Support docking charger docking extension
• Support NXP NFC(13.56M)
• Support accurate GPS Navigation
• Up to IP67 protection level
• Support wrist strap for wide applications
| System Hardware Configuration | CPU | Type | Intel Baytrail-T(Quad-core ),Z3735F |
| Speed | 1.33Ghz-1.92GHz | ||
| GPU | Type | Intel HD Graphic(Gen7) | |
| RAM | LPDDR3 | 2GB | |
| ROM | Emmc | 32GB （Opitonal 64G/128G） | |
| G_sensor | built-in | Gravity acceleration sensor | |
| Operation System | Windows Version | windows 10 HOME Default language：English (Optional : Windows 10 Pro) |
|
| Android Version | Android8.1 available based MTK 8735A Quad Core (Model Named RT821) |
||
| Mechanical | Dimension | 228*145*16.5mm | |
| Weight | Device unit: 630g ，Unit with giftbox and standard accessories:1330g，docking：290g | ||
| Device Color | Black | ||
| Display | LCD | Screen Size | 8“ 16:10 |
| Resolution | 800*1280 IPS LCD | ||
| Brightness | 320Nit | ||
| TP | Touch Panel | Multipoints Capacitive，G+G， Rigidity: above 7H-Anti-scratch，support handwriting |
|
| Others | Camera | Front | Front:2.0MP with indicator light |
| Rear | Rear: 5.0MP | ||
| Speaker | built-in | Embedded 8Ω/0.8W waterproof speakerx 1 | |
| Mic | built-in | Sensitivity:-42db, output resistance2.2kΩ | |
| Battery | Type | build in polymer li-ion battery | |
| Capacity | 3.7V/8500mAh Note: If use 4G configuration, battery capacity is 7800MAH |
||
| Endurance | 8Hrs(default 50% volumn，default200 lumens brightness，play 1080P HD video) | ||
| Data Communication | WIFI | WIFI module | WIFI 802.11(a/b/g/n/ac), frequency 2.4G+5.8G dual band WIFI, intel 3165D2WG |
| Bluetooth | built-in | BT4.1 (BLE) class 1 transmission distance：10m | |
| 3G/4G LTE | Optional | Sample has to add as it already finished in SMT, could remove in mass production |
|
| GPS | built-in | U-blox NEO-7,support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start Time：<30 seconds， Hot start time：<28 seconds， (Optional ：U-blox M8N) |
|
| NFC | built-in | NXP NFC 13.56MHz support ISO/IEC :14443A/14443B/15693/18092/mifare protocol， Card reading distance：4cm |
|
| Data Collection | 1D Barcode Scanner | OPTIONAL | MOTO SE655E100R Optional2 :MOTO 2707module |
| optical resolution: 5mil | |||
| SCAN Speed: 50 times/s | |||
| support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 | |||
| 2D Barcode Scanner | OPTIONAL | MOTO SE4710 hardware decoding, Support Buzzer | |
| optical resolution:5mil | |||
| scan speed:50次/s | |||
| support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse | |||
| Interface | TF slot | Extensive External Memory | support TF x1 max：128G |
| USB Interface | Extend external memory and data transfer | USB 2.0*1 | |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 | |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 (Overvoltage protection of circuit) |
|
| HDMI | Video Output | HDMI 1.4a Type C x1 | |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 | |
| Certifications | Device | IP67, CE NB, CCC, MIL-STD-810G | |
| Battery | UN38.3，MSDS, IEC62133 | ||
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status | |
| Operate Temperature | -10 °C to 50 °C | ||
| Store Temperature | -30 °C to 70 °C | ||
| Humidity | Humidity: 95% Non-Condensing | ||
| Accessories | OTG cable | Standard | USB OTG to MICRO USB cable length:45mm |
| USB cable | Standard | USB to micro 5P L=1.2M 4core aluminum foil shield cable | |
| Power Adaptor | Standard | AC100V ~ 240V、50Hz/60Hz output DC 5V/3A USA Standard CE approval (optional: EU Standard) | |
| Strap | Standard | Extensible belt on the back case, convenient to hold | |

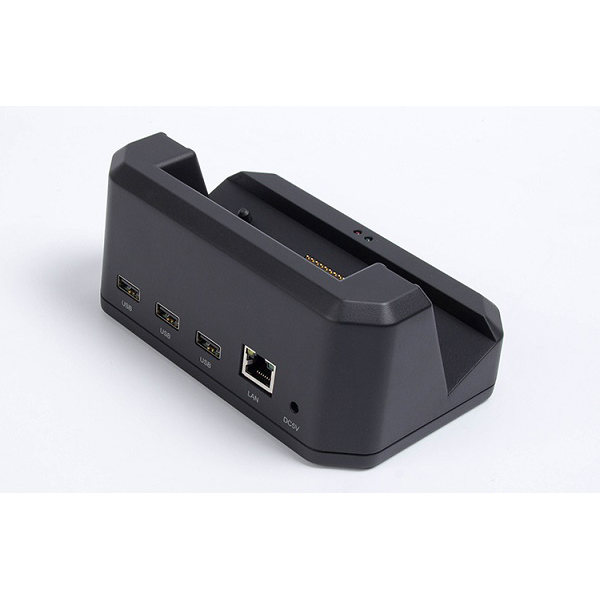

| charging-dock | optional | 3xUSB2.0, 1xRJ45, 1xDC-in | |
| holder/bracket | optional | With 1xDB9 serial port，2xUSB2.0, 1xRJ45 | |
| TP protective film | optional | ||
RT811 is a Windows based 8-inch Rugged Terminal with optional modules 3G, 4G LTE, GPS, NFC, Barcode Scanner etc，The special designed enclosure makes it has a good ingress protection rating of IP67. RT811 has high-effective wireless data connection and transmission，dual band WIFI, 802.11(a/b/g/n/ac), support frequency 2.4G+5.8G and the Bluetooth4.1. U-blox or other good GPS model for your navigation and location. Dragontrail glass for touch panel could give you the excellent experience. And the 8500mAh battery could suppout a long-time use. Clients could put the device on the charger dock or take it away as a handheld device. therefore, our RT811 is widely used in may applications like vehicle dispatching, fleet management, mining &oil & industrial control, marine etc. If you are interested in such kind of terminal, please feel free to contact our team.
