10" to 15" Conference Tablet with LED Light Ring RS1032/RS1033/RS1383/RS1583 Andorid10 supported
Feature
- Support Android8.1 OS, up to 1.8GHZ speed CPU
- G+G Capactive Touch Panel for excellent experience
- 10.1″ IPS panl with 1280*800 resolution
- Support WIFI 802.11 b/g/n, Bluetooth 4.0 and NFC/RFID
- Abundant intefaces like USB port, serial port and RJ45 port with POE function
- Support front camera, optional Wifi AC(5G)
- Equiped with 100M/1000M Ethernet RJ45
- Support LED light with different color to show different situations according to different applications.
- Support different size for your requirement from 10″ to 15.6″
| System Hardware Configuration | CPU | Type | RK3288 Quad core cortex A17 (optional RK3399) |
| Speed | 1.8GHz | ||
| GPU | Type | Integrated 2D/3D Mali-T764 GPU, up to 600MHz | |
| RAM | DDR3 | 2G | |
| ROM | EMMC | 16G | |
| Operation System | OS Version | Android8.1( 9.0/10.0 based RK3399) | |
| Mechanical | Dimension | 275.3 x 170.36 x 25mm | |
| Weight | 0.75KG | ||
| Device Color | Black/White | ||
| Shell Material | ABS plastic | ||
| Display | LCD | Screen Size | 10.1″ LCD IPS panel |
| Resolution | 1280*800 | ||
| Viewing angle | 85/85/85/85(L/R/U/D) | ||
| Aspect Ratio | 16:10 | ||
| Contrast ratio | 800 | ||
| TP | Touch Panel | 10 point Capacitive | |
| Camera | Front Camera | 2.0 MP (Optional Binocular camera) | |
| Others | Speaker | Built-in | 2*1.5W |
| Mic | Built-in | ||
| LED Light bar | LED light bar with RGB and mixed color | ||
| VESA | Vesa 204.5mm | ||
| Language | Multi-language | ||
| Working temp | 0℃ to 40℃ | ||
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc. | |
| Audio format | MP3/WMA/AAC etc. | ||
| Photo | Jpeg, BMP, PNG etc | ||
| Data Communication | WIFI | 802.11b/g/n (optional 802.11b/g/n/ac) | |
| Bluetooth | Bluetooth 4.0 | ||
| Ethernet | 100M/1000M Ethernet | ||
| RFID/NFC/HID | Optional | ||
| Interface | Card Slot | SD card | |
| USB | USB Host | ||
| Micro USB | Micro USB OTG | ||
| USB | USB for Serial | ||
| Rj45 With Poe | RJ45 | ||
| PoE | IEEE802.3at/af | ||
| Power Jack | DC power input | ||
| Earphone | 3.5mm earphone + Micphone | ||
| Accessories | User manual | Standard | |
| Power Adaptor | Standard | Adapter,12V/1.5A | |

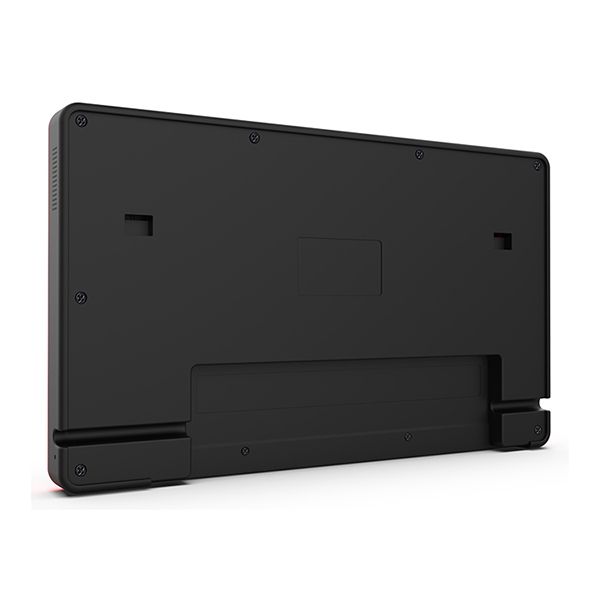

RS1032 is one of our 10” conference room signage, it is powered by Rockchip3288 Quad-core processor with up to 1.8GHZ speed CPU and smooth operating system Android8.1. the 1280×800 resolution and Capactive Touch Panel ensures the excellent experience. It supports WIFI 802.11 b/g/n, Bluetooth and 100M/1000M Ethernet RJ45 with POE function, the main feature for this product is the LED light bar around tablet, with different colors to show under different situations according to different applications. and we have black and white color for options. such type of LED light tablet is mostly used in meeting room and hosptial patient, doctor room etc.we have different sizes and different LED Light types that users can select. Besides above features, the equipped POE ( could be removed if recessary) would allow the tablet to be wall mounted without exposed cables.
