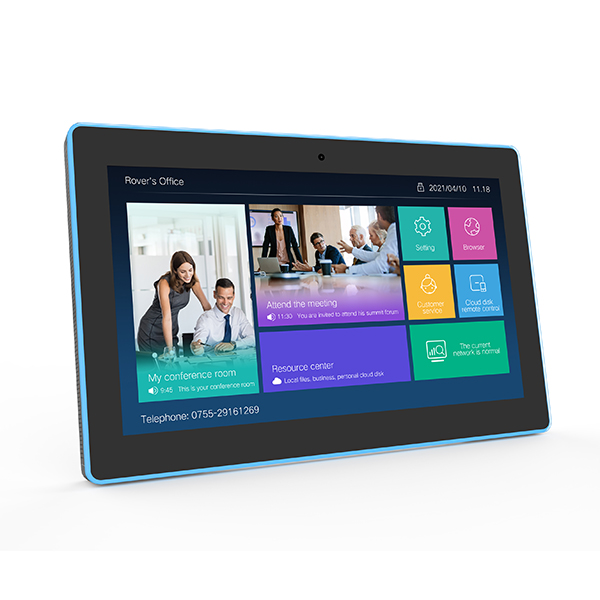

Conference Room Scheduling Tablet with LED light 13.3″ & 15.6″

RS1383 & RS1583

Feature

● Support Android10.0 OS, high performance of the CPU
● G+G Capactive Touch Panel for excellent experience
● 13.3″/ 15.6″ IPS panl with 1920*1080 resolution
● Support WIFI 802.11 b/g/n and optional wifi 5G
● Abundant intefaces like USB port, serial port and RJ45 port with POE function
● Support white color as well like using in hospital
● Support front camera, Bluetooth 4.0 and optional NFC/RFID module
● Equiped with 100M/1000M Ethernet RJ45
● Support LED light with different color to show different situations according to different applications.
● Support customization, some changes to mechanical design or ODM service

System Hardware Configuration CPU Type RK3399  Dual-core A72 quad-core A53
RAM DDR3 2G
ROM EMMC 16G
Operation System OS Version Android7.1/10.0
Mechanical Dimension 333 x 225mm x 28.5mm
Weight 1.6KG
Device Color Black/White
Shell Material ABS plastic + Metal
Display LCD Screen Size 13.3″ LCD IPS panel
Resolution 1920*1080
Viewing angle 85/85/85/85(L/R/U/D)
Aspect Ratio 16:9
Contrast ratio 800
TP Touch Panel 10 point Capacitive
Camera Front Camera 5.0 MP
Others Speaker Built-in  2*3W
Microphone support
SIM Slot 4G LTE   (optional)
LED Light bar LED light bar with RGB and mixed color
VESA Vesa 75x75mm
Language Multi-language
Media plays Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.
Audio format MP3/WMA/AAC etc.
Photo Jpeg, BMP, PNG etc
Data Communication WIFI 802.11b/g/n  (Wifi ac optional)
Bluetooth Bluetooth 4.0
Ethernet 100M/1000M Ethernet
NFC Optional NFC 13.56MHz, ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
Interface Card slot SD card
USB USB Host
Micro USB USB OTG
USB USB for serial (RS232 format)
RJ45 Ethernet interface  (POE function standard  IEEE802.3at, POE+,class 4,  25.5W )
Power jack DC power input
Earphone 3.5mm earphone + Micphone
Accessories User manual Standard
Power Adaptor Standard  Adapter,12V/2A

● Support Android10.0 OS, high performance of the CPU
● G+G Capactive Touch Panel for excellent experience
● 13.3″/ 15.6″ IPS panl with 1920*1080 resolution
● Support WIFI 802.11 b/g/n and optional wifi 5G
● Abundant intefaces like USB port, serial port and RJ45 port with POE function
● Support white color as well like using in hospital
● Support front camera, Bluetooth 4.0 and optional NFC/RFID module
● Equiped with 100M/1000M Ethernet RJ45
● Support LED light with different color to show different situations according to different applications.
● Support customization, some changes to mechanical design or ODM service

For more information, please feel free to contact our sales team: sales@vecoton.com

Thank you for your support
