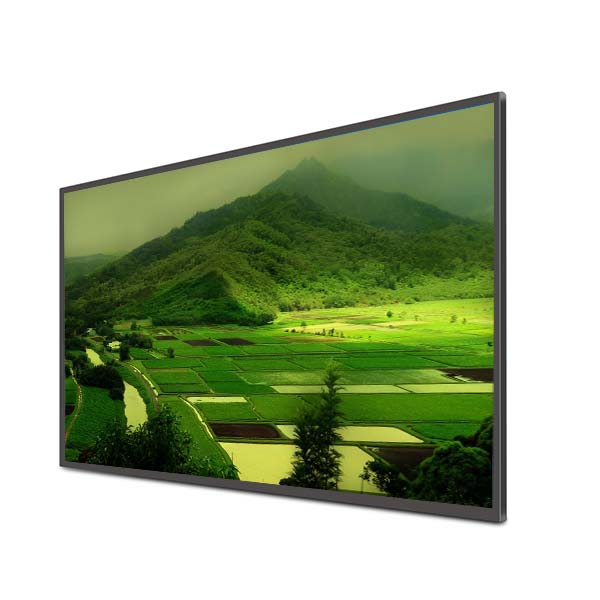

32-inch Digital Signage With Capactive Touch, Model DF3208 / DF3203 / DF3205
Feature
· Support Android11 OS (Optional Andorid12 on DF3205)
· G+G CTP for excellent experience
· 32″ IPS panel with 1920*1080 resolution and supports 1080P
· Support dual band WIFI 802.11 b/g/n, and optional WIFI ac (5G)
· Support HDMI port, USB port and RJ45 port
· Support USB device mode and USB Host mode
· Support customized logo printing and color for shell based MOQ
· Available to expand EMMC to 32G/64G
· Support front camera for wide applications
· Slim design with 100x100mm VESA hole, easy to install
· Support optional card reader NFC, RFID, HID
| System | CPU | RK3568 Quad core cortex A55 |
| RAM | 2GB (Optional 4GB) | |
| Internal memory | 16GB (Optional 32GB/64G) | |
| Operation system | Android 11 | |
| Touch screen | 10-Point capacitive touch screen | |
| Data Communication | WiFi | DF3208: 802.11b/g/n DF3203: 802.11b/g/n/ac, 2.4G+5G DF3205: 802.11a/b/g/n/ac/ax (WiFi6 ) |
| Ethernet | 100M/1000M Ethernet | |
| Bluetooth | Bluetooth 4.2 | |
| NFC / RFID / HID Reader |
Optional | |
| Display | Panel | 32″ LCD |
| Resolution | 1920*1080 | |
| Display mode | Normally black | |
| Viewing angles | 85/85(H),85/85(V) | |
| Contrast ratio | 3000 | |
| Luminance | 250cdm2 | |
| Aspect Ratio | 16:9 | |
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support to 4k max |
| Audio format | MP3/WMA/AAC etc. | |
| Photo | jpeg/png | |
| Interface | Card slot | SD,support up to 64GB |
| Mini USB | USB OTG (DF3205 supports Type-C) | |
| USB | USB Host 3.0 | |
| USB | USB Host 2.0 | |
| Power Jack | DC power input | |
| RJ45 | Ethernet interface | |
| HDMI | HDMI output (DF3205 supports HDMI input) | |
| Earphone | 3.5mm earphone | |
| Others | VESA | 100x100mm |
| Camera | Routine angle 5.0MP | |
| Microphone | single microphone | |
| Speaker | 2*3W | |
| Language | Multi-language | |
| Working temp | 0–40degree | |
| Certificates | ce/fcc | |
| Accessories | User manual | Standard |
| Power Adaptor | 12V,5A | |
| Stand | Standard |

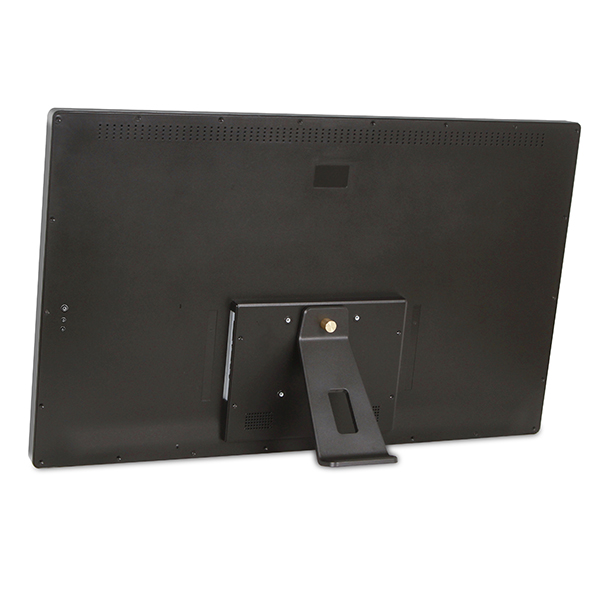

DF3208 is an Android11 based 32-inch Digital Signage With Capactive Touch, this terminal is powered by Rockchip3568 Quad-core processor. This reuglar model was designed with 100x100mm VESA hole at the rear of the shell which could be easy to install like fixed mounted on wall or set up on the table. The 32″ IPS touch panel with 1920*1080 resolution ensure the excellent experience. some application like in hospital require front camera to Catch patients, so we design front camera and white shell as a option. Beside above features, the abondon interfaces like USB, HDMI, RJ45 port and customizable are also helpful for various applications and development. In addition, the device supports optional card reader module like NFC, RFID, HID etc. Therefore, DF3208 is widely used in Bank, hospital, shopping mall, government, restaurant, hotels, airports, railway stations, Transit solution etc
For more information, please feel free to contact our sales team: sales@vecoton.com
