21.5" Room Sinage With Led Light Ring
Feature
· Support Android14 OS
· G+G Capactive Touch Panel for excellent experience
· 21.5″ touch screen with 1920*1080 resolution
· Support WIFI 802.11b/g/n/a/ac/ax (Wi-Fi 6 ), Bluetooth 5.3

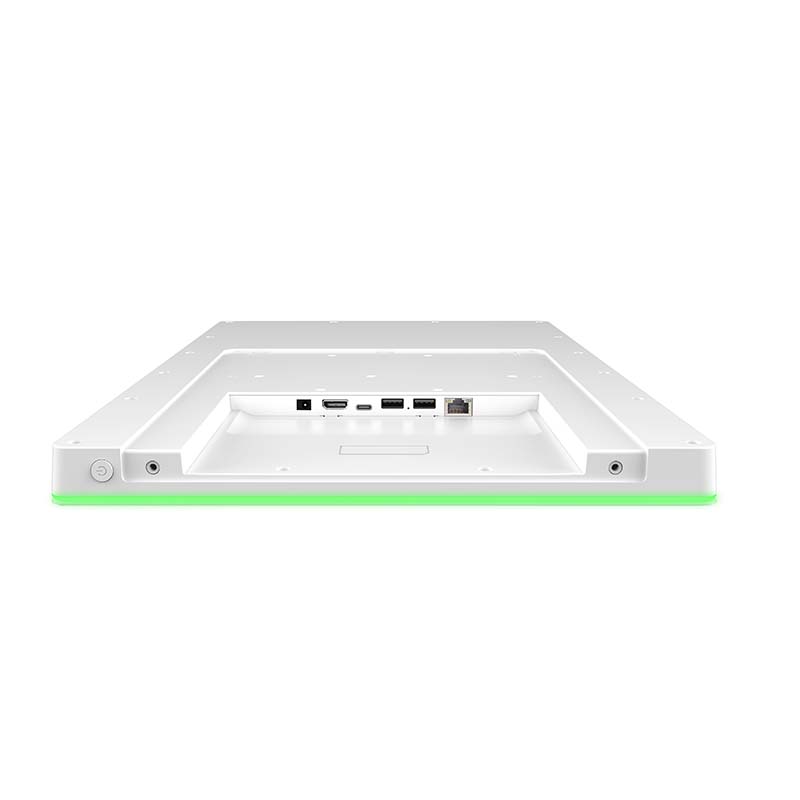

· Abundant intefaces like USB, Type c, serial port, RJ45, and HDMI input ports
· Support white color and black color
· Support optional POE module, NFC, RFID etc

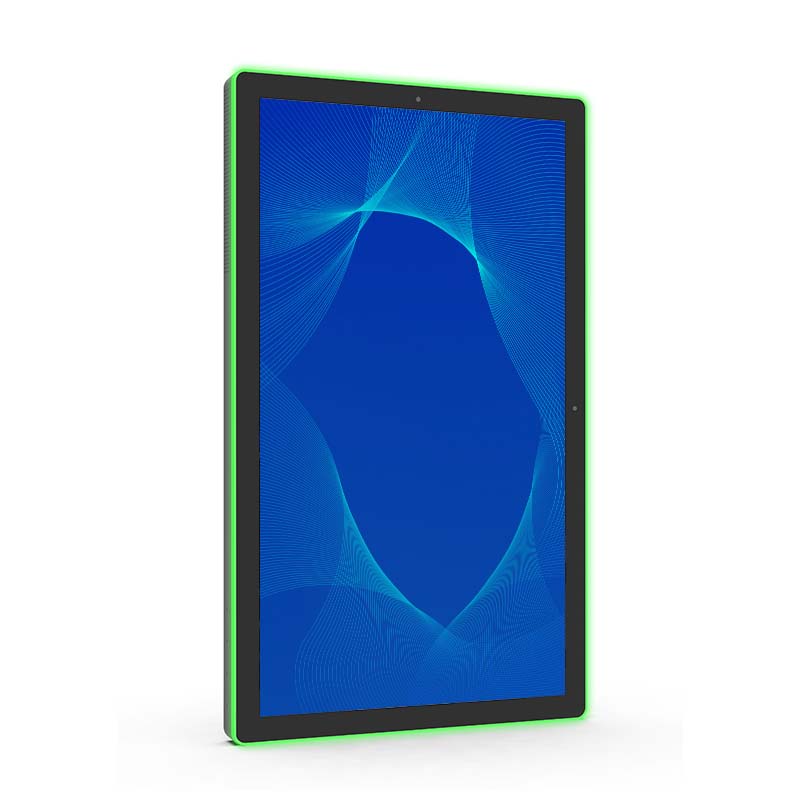

· Support LED light ring to control different color according to different applications.
· Support VESA installation with 200x100mm design
· Support customization & ODM service based MOQ
| System | CPU | RK3576S Quad core cortex A53 +Quad core cortex A72 |
| RAM/DDR3 | 4G (optional 8G) | |
| ROM/EMMC | 32G (optional 64/128G) | |
| OS Version | Android14 | |
| Data Communication | WiFi | IEEE 802.11b/g/n/a/ac/ax (Wi-Fi 6 ) |
| Bluetooth | Bluetooth 5.3 | |
| Ethernet | 10M/100M/1000M | |
| Accessories | Adapter | Adapter,12V/4.0A |
| User manual | yes | |
| Wall mounted | *1 | |
| Display | Panel Size | 21.5″LCD |
| Panel Type | IPS | |
| Resolution | 1920*1080 | |
| Display Colors | 16.7M Colors | |
| Color Gamut | 72% NTSC | |
| Viewing angle | R/L 89/89, U/D 89/89 | |
| Display mode | Normally black | |
| Contrast ratio | 3000:1 | |
| Response Time | 7ms | |
| Back-light Type | Eled | |
| Luminance | 250cdm2 | |
| Aspect Ratio | ,16:9 | |
| Touch | Model Type | Capacitive touch screen |
| Number of points | 10-Point | |
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC, etc.support up to 4K |
| Audio format | MP3/WMA/AAC/WAV/OGG, etc | |
| Photo | JPEG/PNG/GIF,etc | |
| Working Surrounding | Working Temp | 0℃—40℃ |
| Storage Temp | -20℃—60℃ | |
| Working Humidity | 20~80%RH | |
| Storage Humidity | 10~95%RH | |
| Interface | RJ45 | Ethernet interface |
| USB | USB 2.0 Host | |
| USB | USB 3.0 Host | |
| Type-C | Only supports ADB function | |
| HDMI IN | Support 800*600,1024*768,1280*720,1280*800, 1280*1024,1366*768,1600*900,1920*1080, etc |
|
| Power Jack | DC power input | |
| Others | Product Colors | White/Black |
| VESA | 200x100mm | |
| Button | Power | |
| G-sensor | Support 90 degrees | |
| Speaker | 2*2.2W | |
| Microphone | Four microphones | |
| NFC | Optional，13.56MHz，ISO/IEC 18092, ISO/IEC 21481, ISO/IEC 14443 A&B, ISO/IEC 15693, Japanese Industrial Standard (JIS) (X) 6319-4, MIFARE Classic encrypted tags and cards | |
| RFID | Optional ,125k, ISO/IEC 11784/11785, support EM4100, TK4100/GK4100 | |
| POE | OPtional (Support IEEE802.3bt,up to 60W) | |
| LED Light bar | LED light bar with RGB and mixed color | |
| Camera | 5.0MP Regular angle | |
| Language | Multi-language |
· Support Android14 OS
· G+G Capactive Touch Panel for excellent experience
· 21.5″ touch screen with 1920*1080 resolution
· Support WIFI 802.11b/g/n/a/ac/ax (Wi-Fi 6 ), Bluetooth 5.3
· Abundant intefaces like USB, Type c, serial port, RJ45, and HDMI input ports
· Support white color and black color
· Support optional POE module, NFC, RFID etc
· Support LED light ring to control different color according to different applications.
· Support VESA installation with 200x100mm design
· Support customization & ODM service based MOQ
