Touchscreen Digital Signage
A type of digital signage with classical design or ultra slim bezel design，meets wide applications like meeting room, school education, patient whiteboard etc

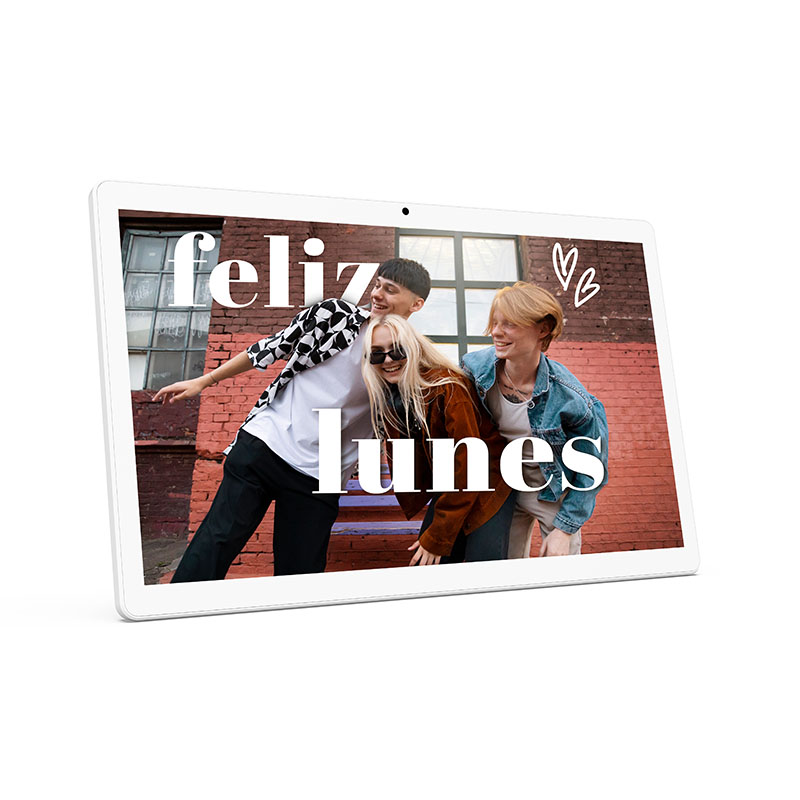

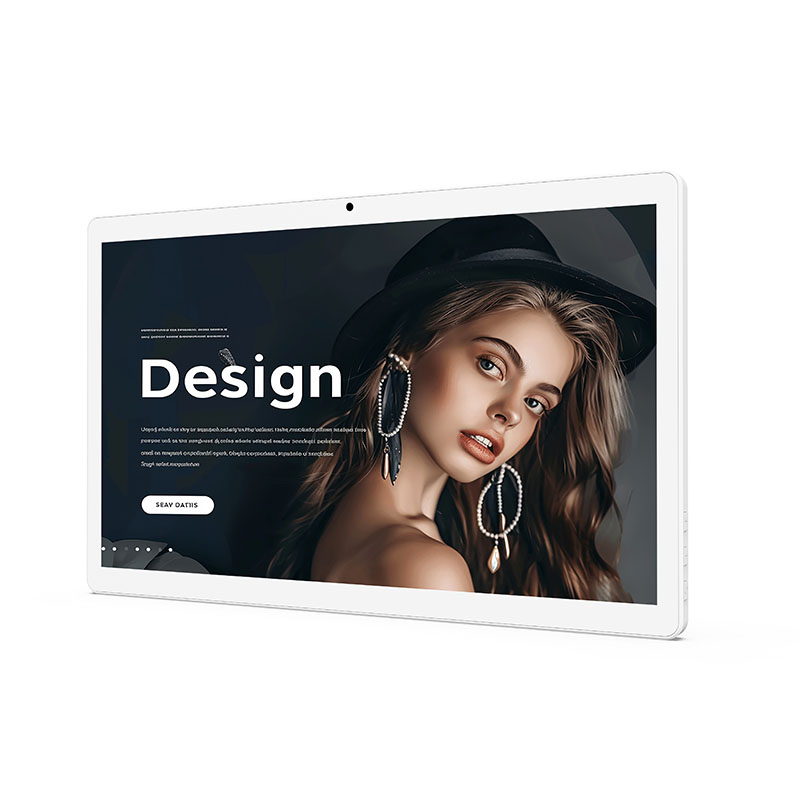

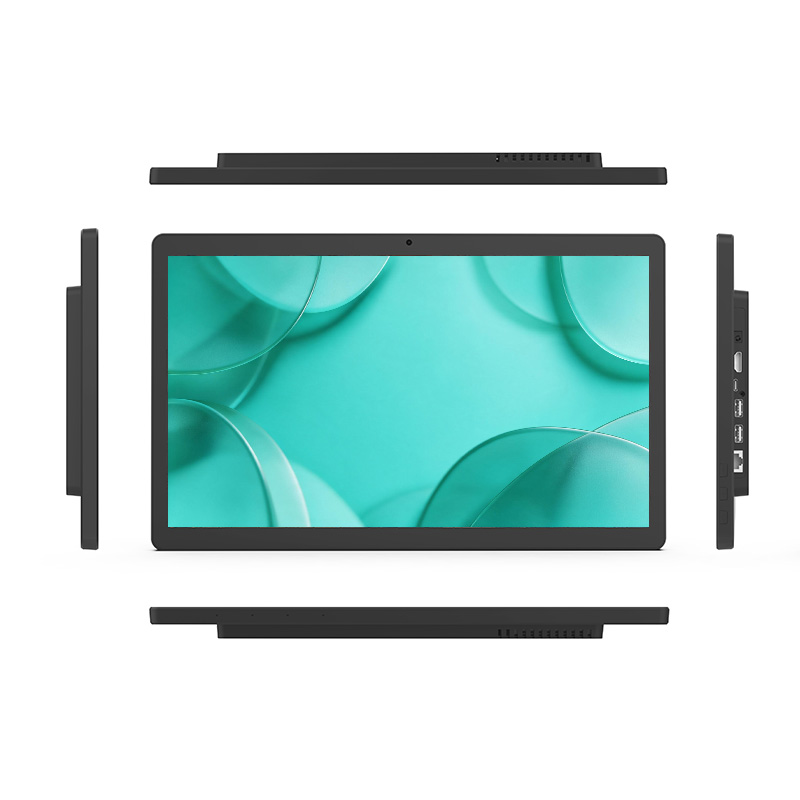

15.6" Ultra Slim Bezel Digital Signage With Front Camere
Model: DF1589 / DF1585 / DF1588
Introduction
DF1589 touchscreen digital signage is a 15.6‑inch all‑in‑one interactive commercial display built for high‑demand public‑facing environments. Powered by RK3576S octa‑core processor paired with 4GB RAM and 64GB onboard storage, this Android 14 digital signage delivers smooth multitasking for content playback, guest interaction, and on‑site data processing. Featuring 10‑point capacitive touch, Wi‑Fi 6, Bluetooth 5.4, gigabit Ethernet and optional NFC & POE, it supports flexible wired and wireless connectivity for retail, hospitality, corporate lobbies, healthcare facilities, and self‑service kiosk deployments. The 1920*1080 full‑HD panel with long‑life backlight ensures stable daily operation, while rich I/O ports, VESA mounting compatibility and noise‑canceling quad‑microphone system simplify wall‑mount or custom installation for diverse on‑premise digital engagement projects.
The 15.6‑inch 1080P full‑HD screen adopts 10‑point capacitive touch technology. It delivers precise, lag‑free multi‑touch input for self‑check‑in, product browsing and interactive menu navigation, ideal for high‑frequency guest interaction in hospitality and retail spaces. The 30000‑hour backlight lifetime guarantees long‑term stable daily usage.
Comes standard with Wi‑Fi 6, Bluetooth 5.4, gigabit Ethernet, HDMI 2.0 IN, multiple USB ports and Type‑C OTG. Optional NFC and IEEE802.3at POE further expand capability. Users can connect peripheral devices, access network resources, or implement contactless identification for corporate, healthcare and kiosk applications.
Equipped with RK3576S octa‑core CPU, Mali‑G52 GPU and 3 TOPS NPU, paired with 4GB RAM + 64GB storage. It handles high‑definition video decoding, multi‑app running and interactive touch responses reliably for long‑hour commercial operation in retail, lobby and self‑service scenarios.
Vecoton provides muti-chipset SoC soulutions for your selection, Highest performance and cost-effective solutions are available for customers to choose from.
Vecoton deveopes with the third party casting apk development team to provide Wireless cast app on some of devices with license paid before shipment, which is convenient for integrators or end-users to use
We configure the specs according to customer needs. whatever it's apk installation, debug, system modification or production with printed brand on front PPC, or logo on start up, we can even evaluate hardware modifications when there is good project quantity.
Model Difference
Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime
Available In Multiple Sizes
15.6" / 21.5" / 24" / 32”
Specification Overview
Optional NFC / RFID/ HID Reader
Multiple card reader module options for smart applications such as secure identity verification, digital interaction, access control, payment systems, membership management etc.Simply tap a compatible card, wristband or tag for quick and convenient interaction.
√ NFC: Optional, 13.56MHz√ RFID: Optional, 125k√ HID: Optional, evaluated case by case per project requirements & supply availability
payment system
Identity verification
Access control
Digital interaction

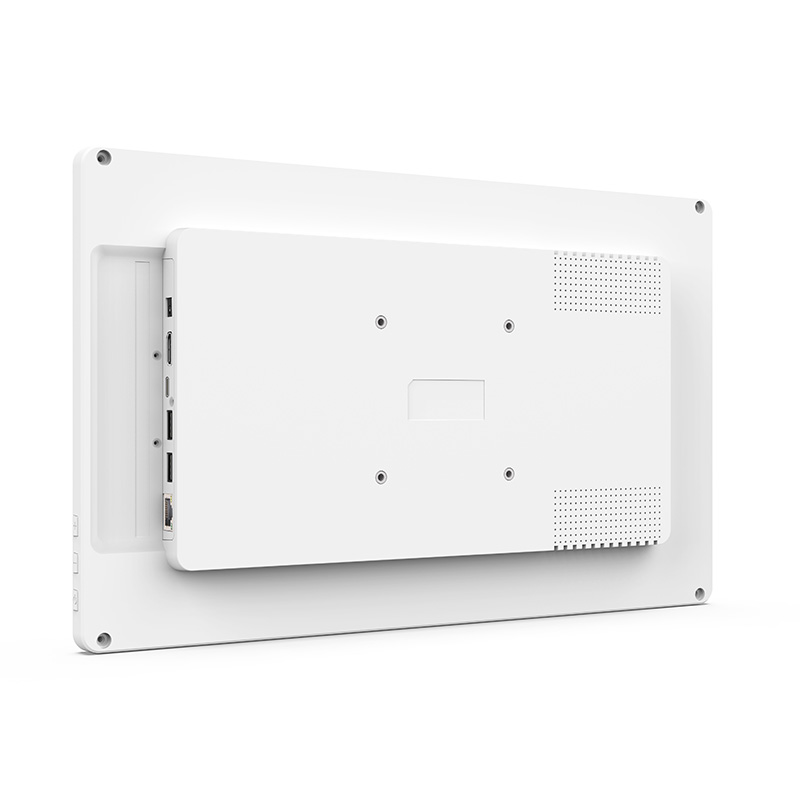

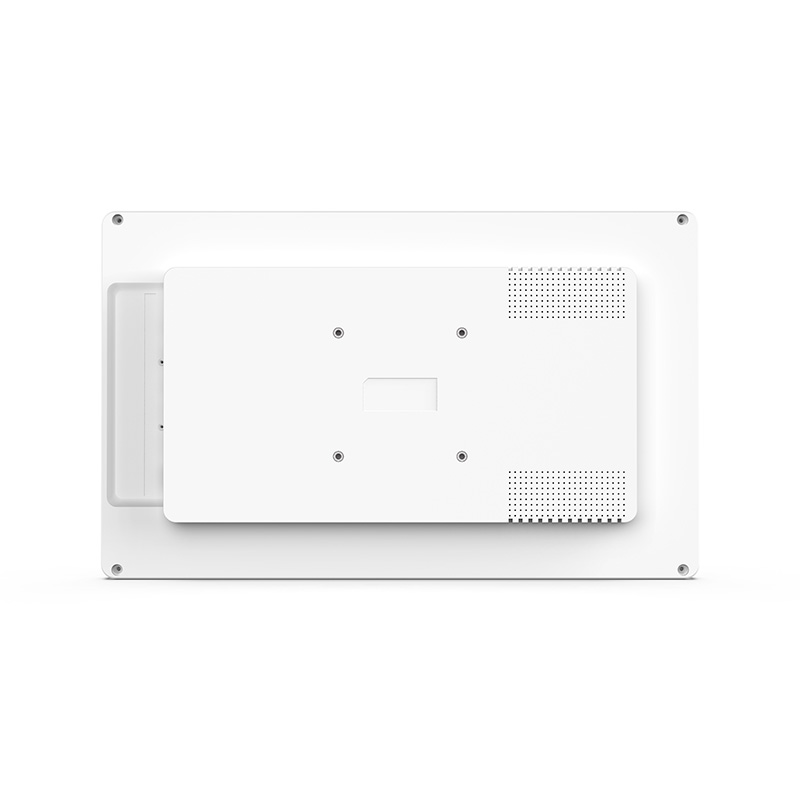

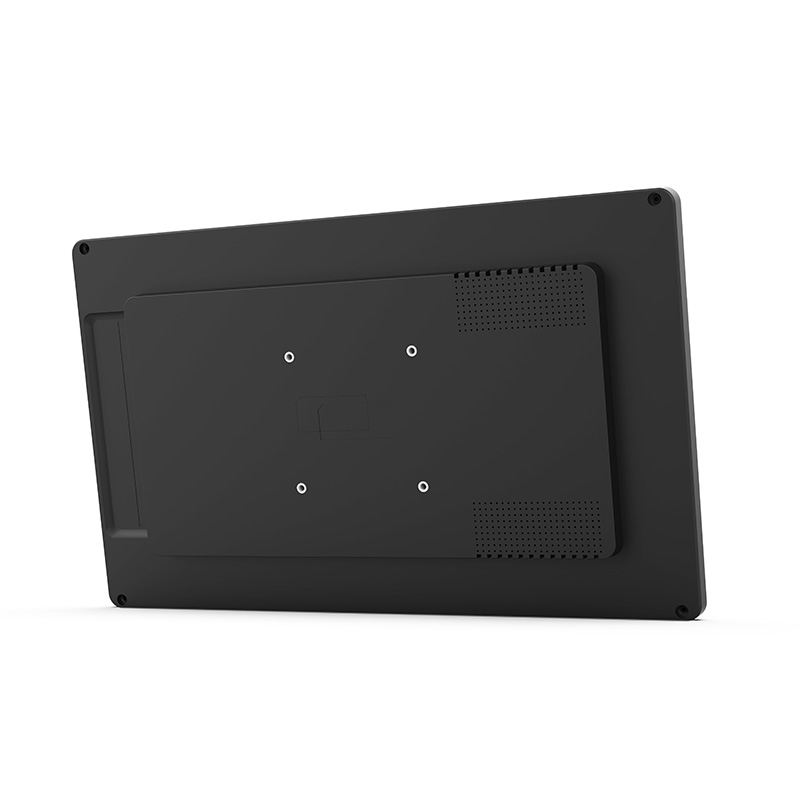

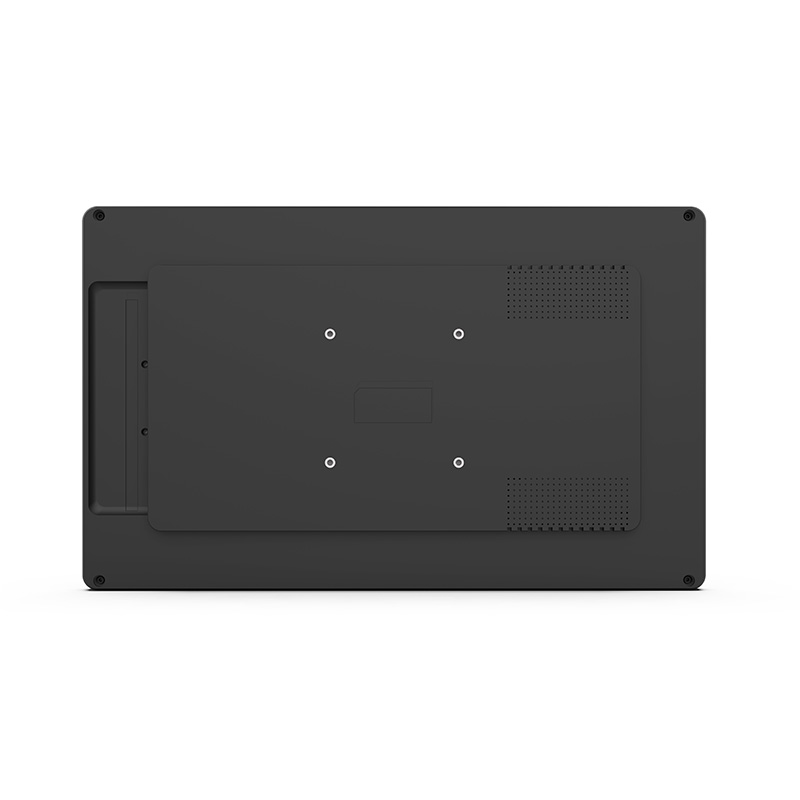

Optional VESA plate
Pick Your Ideal Mounting Style
Flexible mounting & bracket choices for any installation environments.Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection. For more stand mount requirements, contact us for more information.
Next Steps Upon Your Interest
Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC, screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend suitable solutions for you, thank you!
