Introduction

The DF75X touchscreen digital signage is a premium 75-inch all-in-one interactive display built for high-impact commercial and collaborative environments. Powered by the RK3588 octa-core processor and running Android 13, this signage comes standard with 4GB DDR3 RAM and 64GB EMMC storage, with configurable upgrades up to 16GB RAM and 128GB storage to handle heavy interactive workloads. It features a stunning 4K UHD IPS LCD panel delivering 3840*2160 resolution, 99% sRGB color gamut, 4000:1 contrast ratio and wide 88° viewing angles, bringing vivid, true-to-life visuals for large-format presentations. Equipped with 10-point capacitive touch (IR touch optional), built-in dual 12W speakers and an 8-microphone array with noise reduction and echo cancellation, it creates a smooth interactive and audio experience. Connectivity options include Wi-Fi 6, Gigabit Ethernet, Bluetooth 5.0, and optional NFC for ID card reading. Rich ports such as HDMI IN, dual USB 3.0, full-function Type-C and RJ45 support flexible peripheral connection and signal input. With a rugged metal shell, 600x400mm VESA mounting, wide operating temperature range and AC 100–240V universal power, the DF75X is ideal for corporate meeting rooms, hospital patient whiteboard, classroom interactive whiteboards, retail flagship stores, hotel lobbies, exhibition halls and public information kiosks to run digital ads, real-time information, video conferencing and interactive content.

Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime

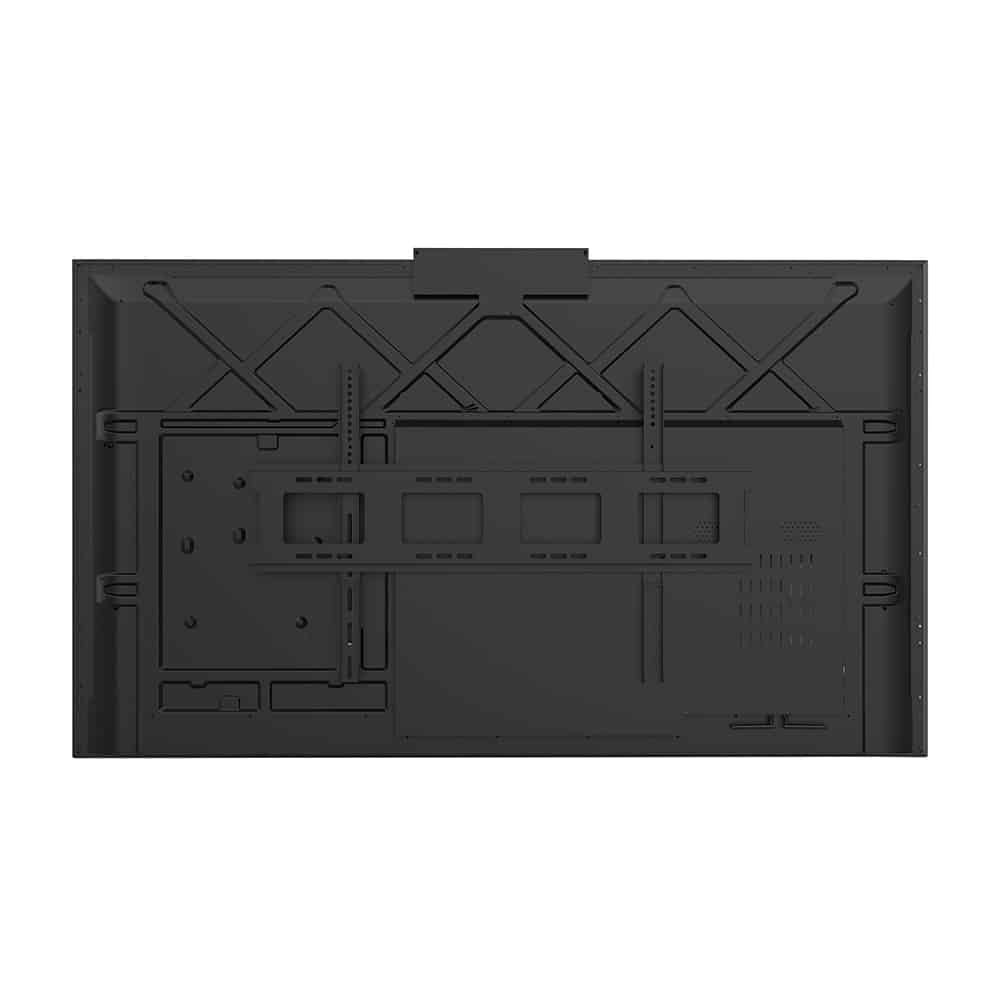

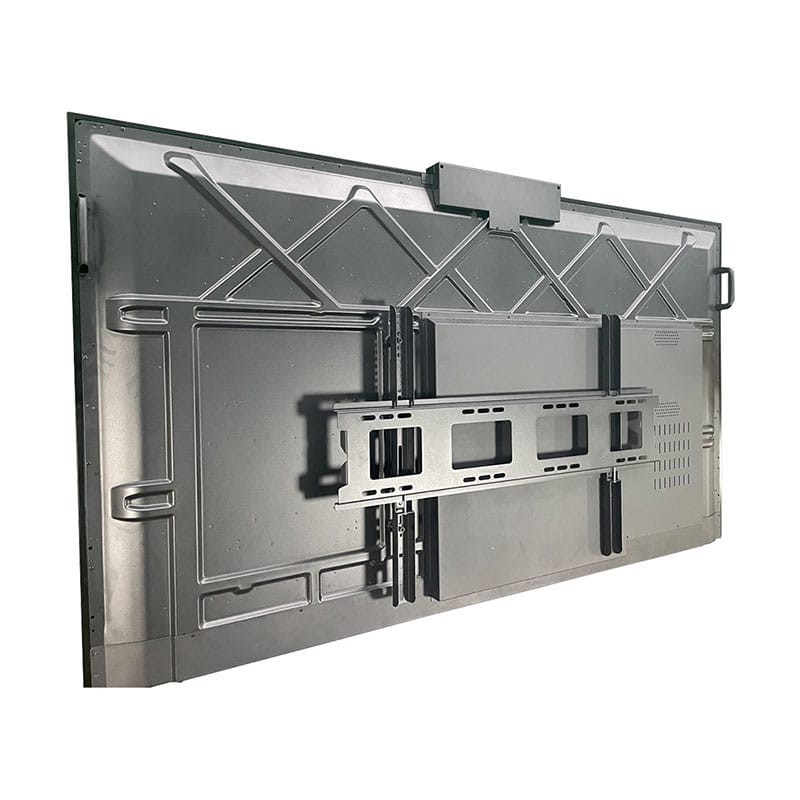

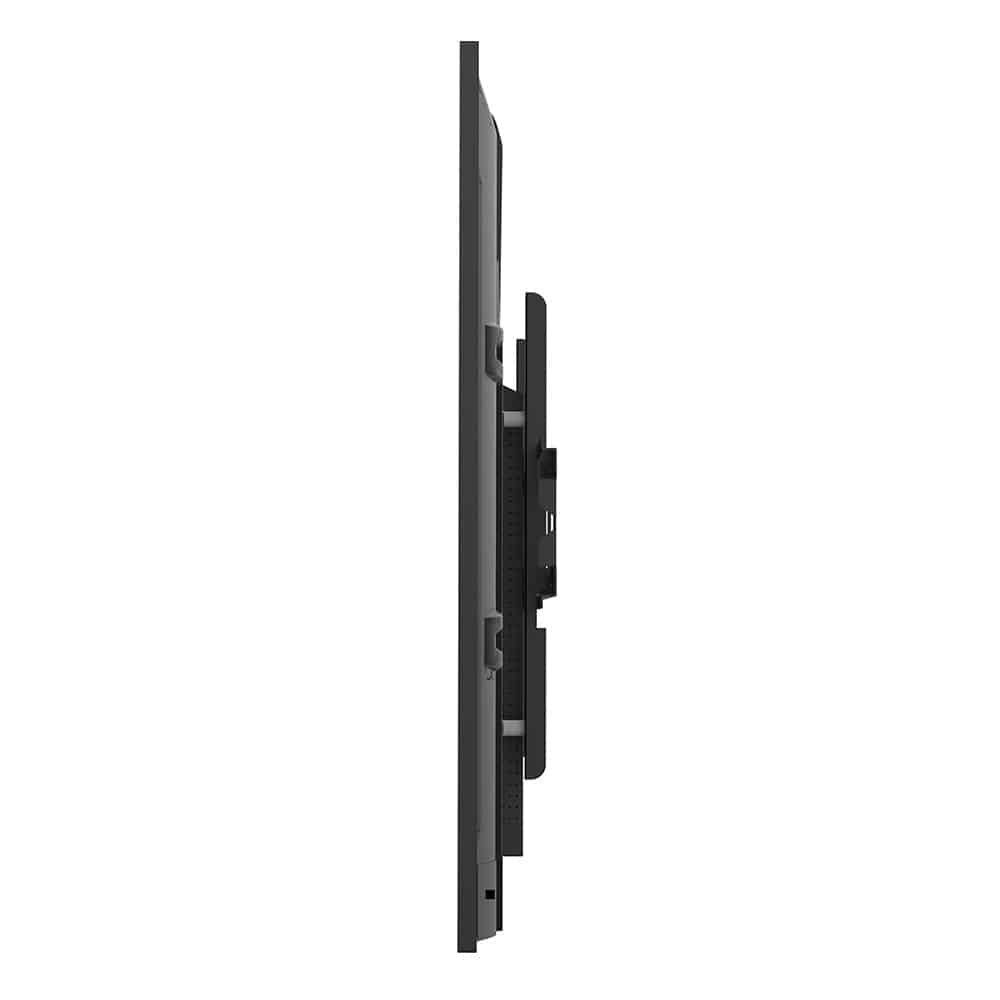

Optional VESA plate

Flexible mounting & bracket choices for any installation environments.
Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection.
For more stand mount requirements, contact us for more information.

Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC,  screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.

It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend  suitable solutions for you, thank you!
