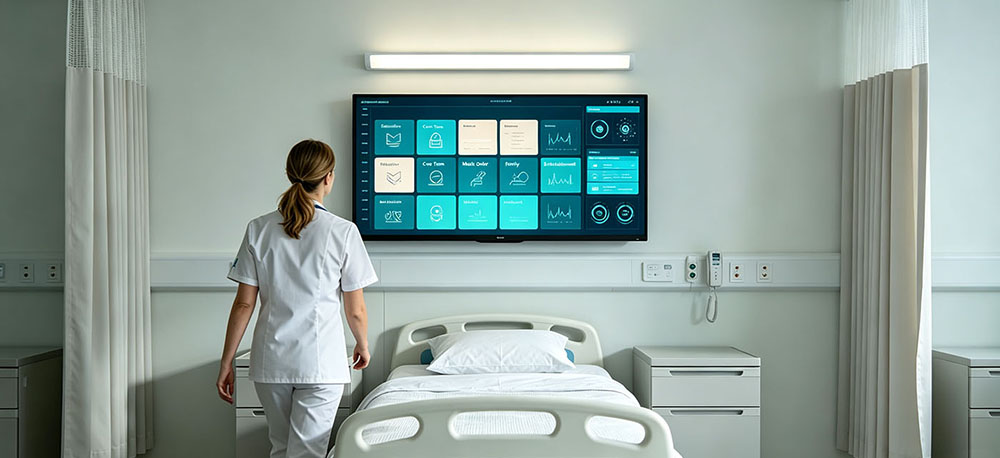

patient room whiteboard

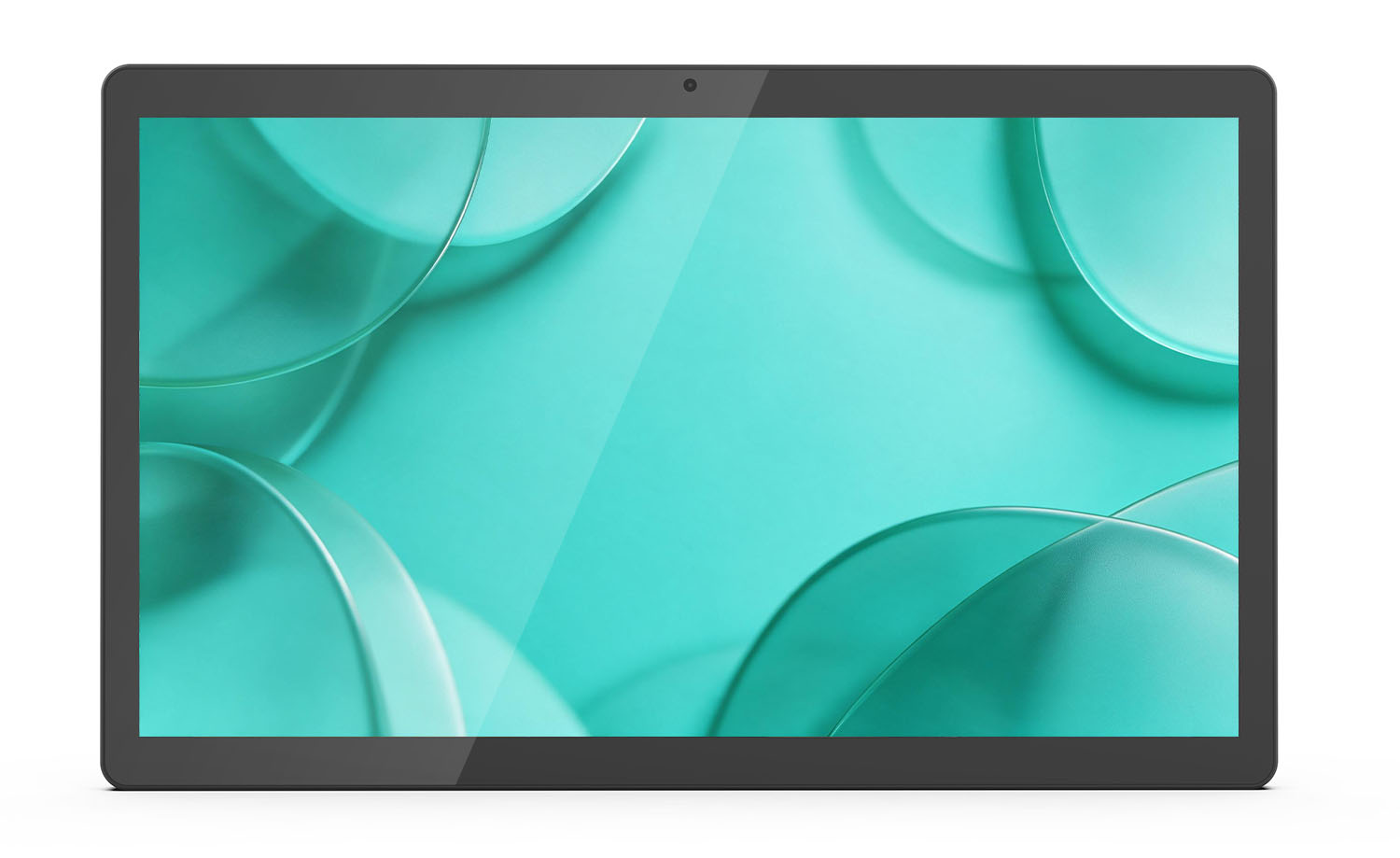

tablet pc with hdmi input

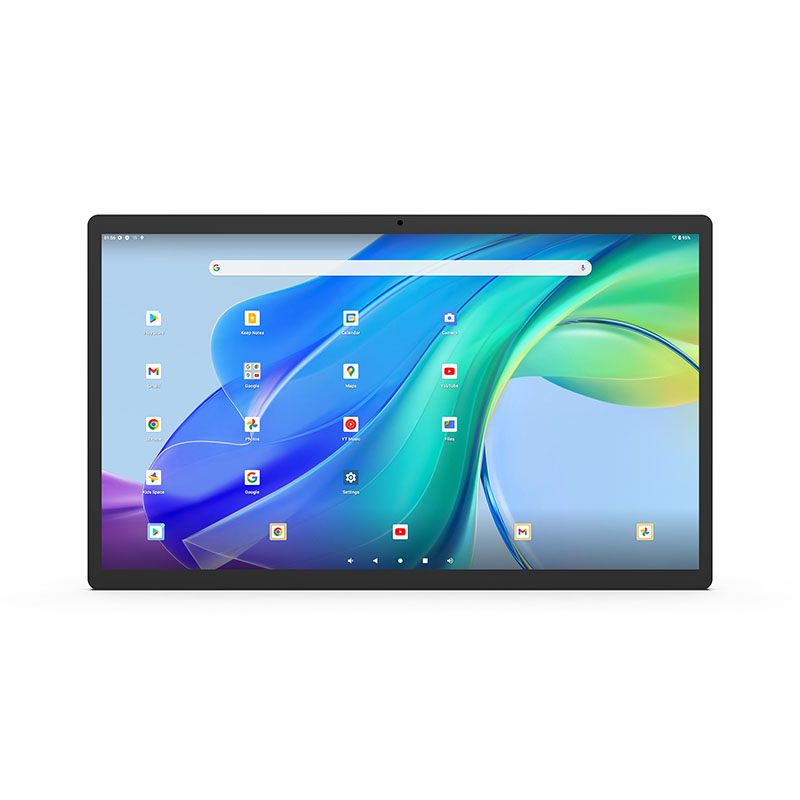

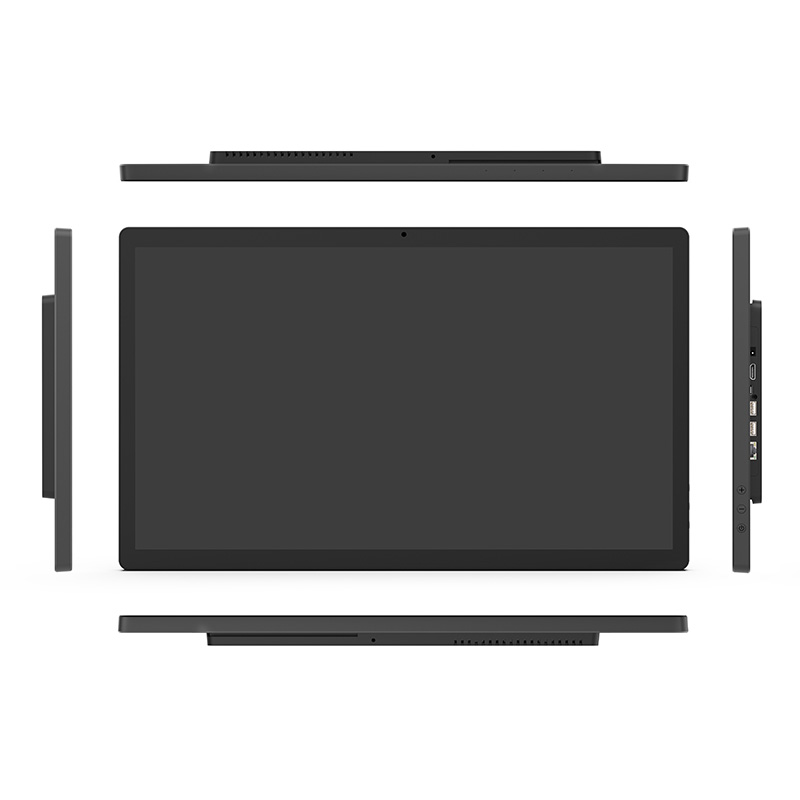

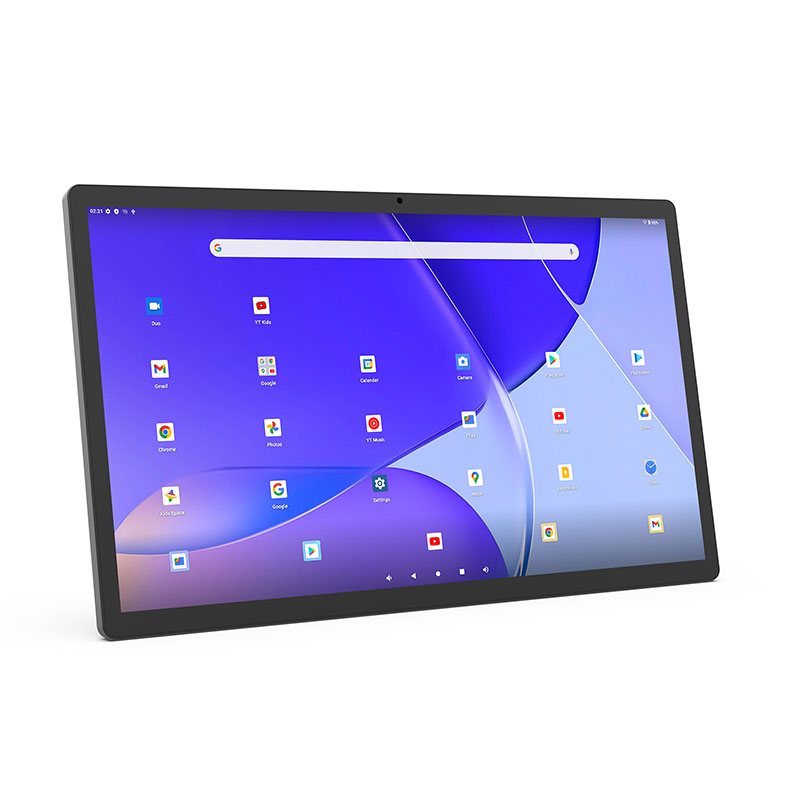

21.5" Ultra Slim Bezel Digital Signage With Front Camere

Model: DF2189 / DF2185 / DF2188

Introduction

Built around the high‑performance RK3576S octa‑core processor and running Android 14, our DF2189 21.5‑inch Ultra Slim Digital Signage delivers responsive interactive display performance for commercial and institutional deployments. Featuring full‑HD 1920×1080 resolution, 10‑point projected capacitive touch, and built‑in Wi‑Fi 6 plus Gigabit Ethernet connectivity, this all‑in‑one digital signage adapts seamlessly to retail self‑service kiosks, corporate lobbies, hospital waiting areas, education classrooms, and public transit information hubs. With long‑life backlight, integrated dual speakers, quad noise‑canceling microphones, optional NFC and POE power supply, the DF2189 combines reliable media decoding capability, rich I/O interfaces, and flexible VESA wall‑mount installation. It empowers businesses to roll out dynamic content, customer interaction, and real‑time information broadcasting while lowering long‑term maintenance efforts for continuous daily operation.

The advantages you may concern

Vivid 21.5‑inch Full‑HD Interactive Display

Vivid 21.5‑inch Full‑HD Interactive Display

The 21.5‑inch 1080P panel delivers 3000:1 contrast ratio and wide 89‑degree viewing angles across all directions. 10‑point capacitive touch supports precise multi‑touch gestures, ideal for self‑service check‑in, product browsing, and public interactive inquiry in lobbies, clinics and shopping centers.

cast_connected

Versatile Wired & Wireless Connectivity

Equipped with Wi‑Fi 6, Bluetooth 5.4, Gigabit Ethernet, optional NFC and POE support, the DF2189 offers stable network access for remote content management. NFC enables visitor check‑in and identity verification for hospitals, office buildings and retail locations, while POE simplifies cable layout for wall‑mounted projects.

High‑Powered Octa‑Core Computing Performance

High‑Powered Octa‑Core Computing Performance

Powered by RK3576S octa‑core SoC paired with 4GB RAM and 64GB onboard storage, this touchscreen digital signage ensures smooth multitasking, fast app loading, and fluent playback of high‑definition video streams. It handles heavy interactive workloads in retail kiosks, hospital and public information terminals without lag

Muti-Solutions

Muti-Solutions

Vecoton provides muti-chipset SoC soulutions for your selection, Highest performance and cost-effective solutions are available for customers to choose from.

Wireless Cast functionality

Wireless Cast functionality

Vecoton deveopes with the third party casting apk development team to provide Wireless cast app on some of devices with license paid before shipment, which is convenient for integrators or end-users to use

Customization Service

Customization Service

We configure the specs according to customer needs. whatever it's apk installation, debug, system modification or production with printed brand on front PPC, or logo on start up, we can even evaluate hardware modifications when there is good project quantity.

Model Difference

Model No.Chipset SoCSupported OS And Remark
DF2185RK3588S2Android 13, WIFi IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6 )
DF2189RK3576SAndroid14, WiFi IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
DF2188RK3568Android14, Wifi2.4G&5G

Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime

Available In Multiple Sizes

15.6" / 21.5" / 24" / 32”

Specification Overview

  • iconSystem Config
  • iconPanel Config
  • iconInterface Config
SystemCPURK3576S Quad core cortex A72+Quad core cortex A53
GPUARM Mali G52 MC3
NPU3 TOPS
RAM4GB
Internal memory64GB
Operation systemAndroid 14
Data CommunicationWiFiIEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
BluetoothBluetooth 5.4
Ethernet10M/100M/1000M
NFCOptional,NXP PN7160, ISO/IEC 18092(NFCIP-1),ISO/IEC 21481(NFCIP-2),ISO/IEC 14443A,ISO/IEC 14443B, ISO/IEC15693,Mifare Classic,Mifare Ultralight,MIFARE DESFire EV1/ EV2 ,Sony FeliCa
DisplayPanel size21.5″
Resolution1920*1080
Color gamut72% NTSC
Viewing angleR/L 89/89, U/D 89/89
Contrast ratio3000:1
Luminance250 nits
Backlight lifetime30000h
Aspect Ratio16:9
TouchTouch typeCapacitive touch screen
Number of points10-Point
Media playsDecoderH.264,H.265,VP9,AV1,AVS2,JPEG
EncoderH.264,H.265,JPEG
Working SurroundingWorking Temperature0℃—40℃
Storage Temperature-20℃—60℃
Working Humidity20~80%RH
Storage Humidity10~95%RH

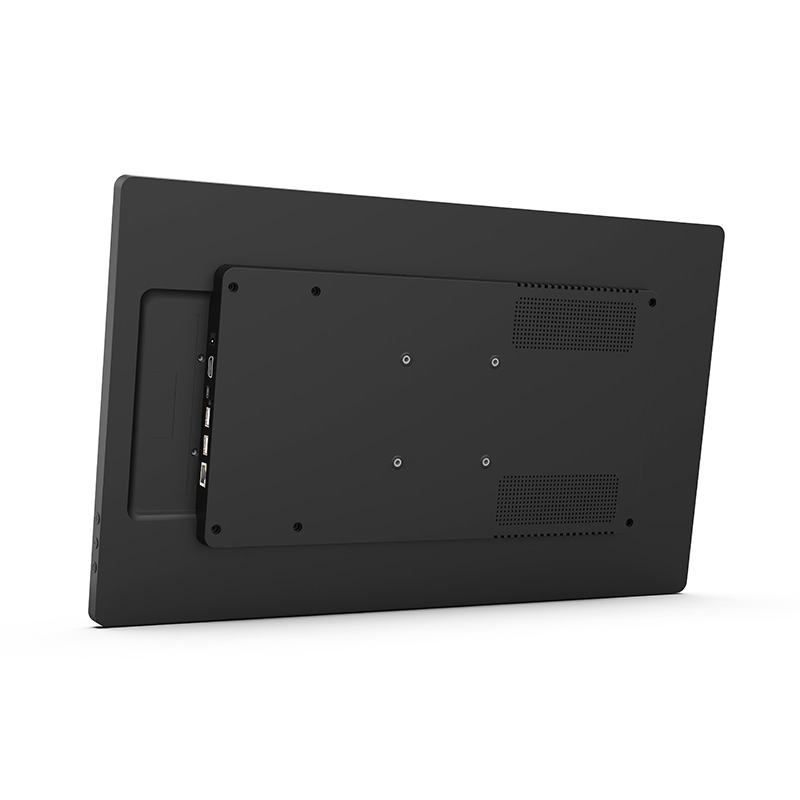

InterfaceRJ451×Ethernet interface
USB-A1×USB 2.0 HOST
USB-A1×USB 3.0 HOST
Type-C1×Type-C (Only supports OTG)
HDMI IN1×HDMI 2.0
Power JackDC 12V power input

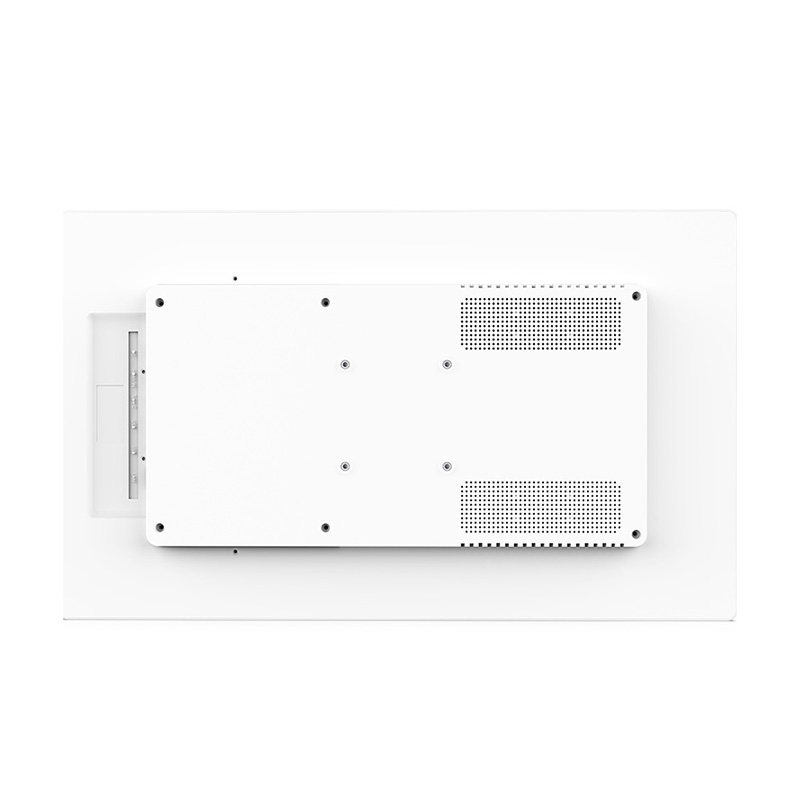

OthersProduct ColorsWhite/Black

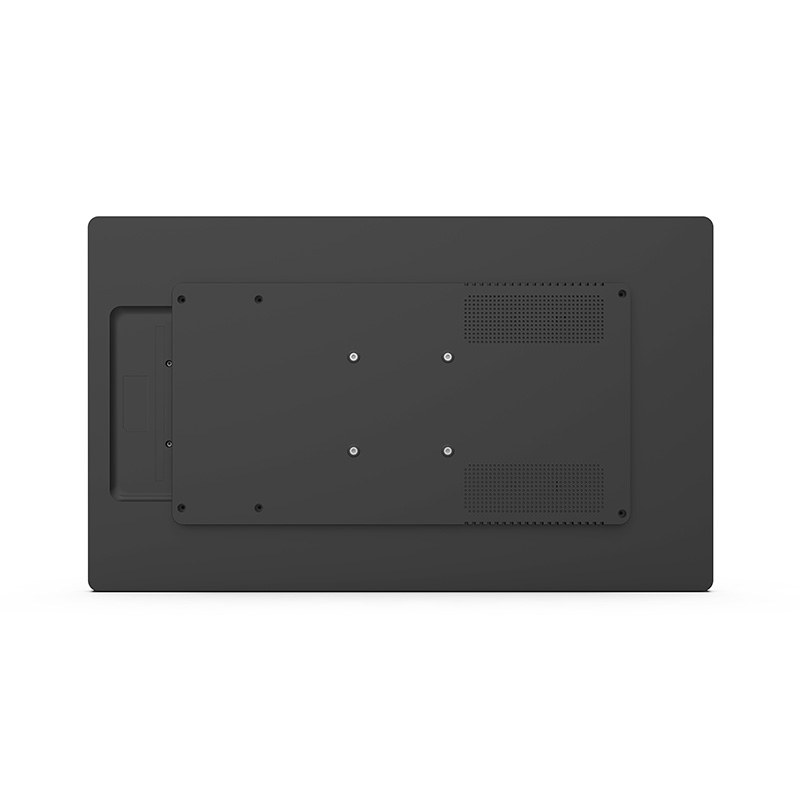

VESA75mm*75mm
ButtonPower/Vol+/Vol-
G-sensorSupport
Speaker4Ω*5W*2
MicrophoneStandard  Quad Microphone , Support noise reduction and echo cancellation
Camera8.0MP
CertificatesCE/FCC,Google EDLA
POEOptional  (IEEE802.3bt)
AccessoriesAdapter12V/3A
User manual*1
Wall mounted*1

Optional NFC / RFID/ HID Reader

Multiple card reader module options for smart applications such as secure identity verification, digital interaction, access control, payment systems, membership management etc.

Simply tap a compatible card, wristband or tag for quick and convenient interaction.

√ NFC: Optional, 13.56MHz
√ RFID: Optional, 125k
√ HID: Optional, evaluated case by case per project requirements & supply availability

payment

payment system

perm_identity

Identity verification

admin_panel_settings

Access control

reddit

Digital interaction

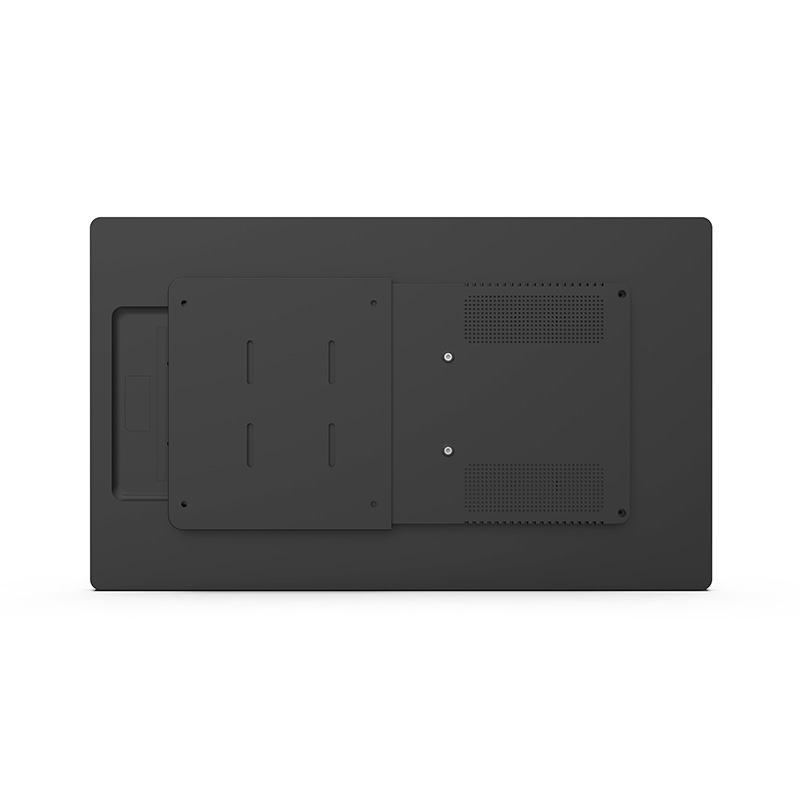

Optional VESA plate

Pick Your Ideal Mounting Style

Flexible mounting & bracket choices for any installation environments.
Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection.
For more stand mount requirements, contact us for more information.

optional-mount

Next Steps Upon Your Interest

Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC,  screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.

It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend  suitable solutions for you, thank you!
