Touchscreen Digital Signage
A type of digital signage with classical design or ultra slim bezel design，meets wide applications like meeting room, school education, patient whiteboard etc
24" Ultra Slim Bezel Digital Signage With HDMI Input
Model: DF2489 / DF2485 / DF2488
Introduction
The DF2489 touchscreen digital signage delivers reliable, high-performance interactive display solutions for commercial, corporate, retail, hospitality and office environments. Powered by the robust RK3576S octa-core processor paired with a 3 TOPS NPU, this 23.8-inch interactive signage runs Android 14, equipped with 4GB RAM and 64GB built-in storage to handle smooth multimedia playback, interactive menus and custom application operations. Featuring a 10-point capacitive touch panel, Full HD 1920*1080 resolution, 99% sRGB color gamut and 4000:1 contrast ratio, it presents vivid, true-to-life visuals for customer engagement. It supports Wi-Fi 6, Bluetooth 5.4 and gigabit Ethernet for stable network connectivity, with optional NFC and POE to streamline installation and visitor authentication. Built-in dual speakers, quad noise-canceling microphones and an optional 8MP camera expand its capability for video conferencing, self-service kiosk and information display use cases. With flexible interfaces including HDMI 2.0 IN, USB ports and Type-C OTG, plus standard VESA mounting, this all-in-one touch signage easily integrates into wall-mounted or customized setups.
Boasting 99% sRGB wide color gamut, 4000:1 contrast ratio and 300 nits brightness, the screen renders rich, lifelike content. 10-point capacitive touch delivers responsive, accurate touch input for menu browsing and user interaction in restaurants, showrooms and public information kiosks.
Comes standard with Wi-Fi 6, Bluetooth 5.4 and 1000M gigabit Ethernet for steady data transmission. Optional NFC supports ID reading and visitor check-in, while optional POE simplifies cabling for wall-mounted deployments in hotels, banks and office buildings.
he RK3576S octa-core CPU with 3 TOPS NPU, 4GB RAM and 64GB storage ensures seamless running of interactive apps and media decoding. Android 14 offers strong compatibility for custom commercial software, ideal for retail self-service and corporate lobby digital displays.
Vecoton provides muti-chipset SoC soulutions for your selection, Highest performance and cost-effective solutions are available for customers to choose from.
Vecoton deveopes with the third party casting apk development team to provide Wireless cast app on some of devices with license paid before shipment, which is convenient for integrators or end-users to use
We configure the specs according to customer needs. whatever it's apk installation, debug, system modification or production with printed brand on front PPC, or logo on start up, we can even evaluate hardware modifications when there is good project quantity.
Model Difference
Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime
Available In Multiple Sizes
15.6" / 21.5" / 24" / 32”
Specification Overview
Optional NFC / RFID/ HID Reader
Multiple card reader module options for smart applications such as secure identity verification, digital interaction, access control, payment systems, membership management etc.Simply tap a compatible card, wristband or tag for quick and convenient interaction.
√ NFC: Optional, 13.56MHz√ RFID: Optional, 125k√ HID: Optional, evaluated case by case per project requirements & supply availability
payment system
Identity verification
Access control
Digital interaction

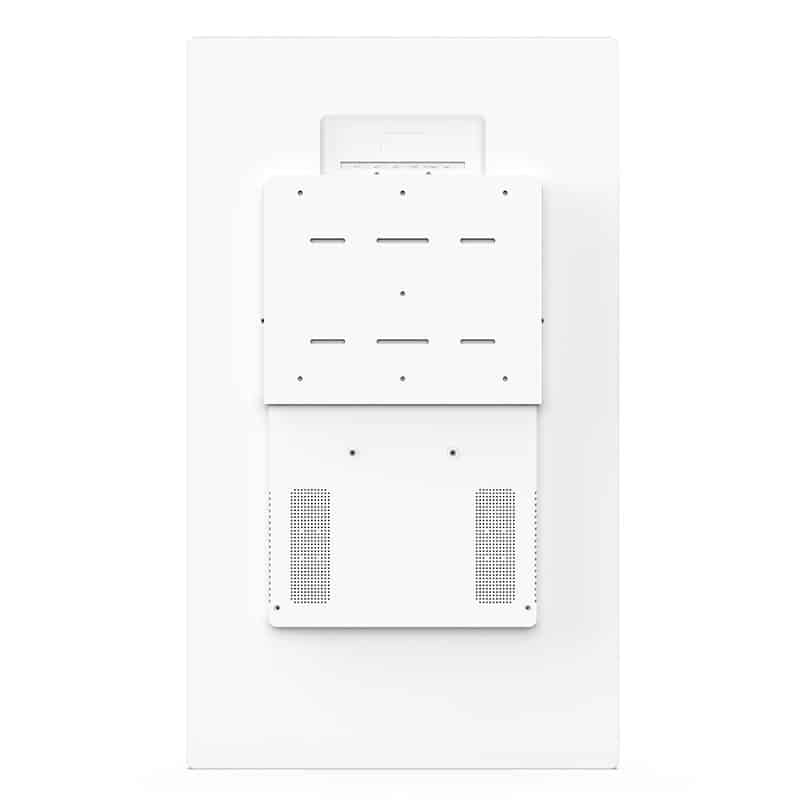

Optional VESA plate
Pick Your Ideal Mounting Style
Flexible mounting & bracket choices for any installation environments.Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection. For more stand mount requirements, contact us for more information.
Next Steps Upon Your Interest
Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC, screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend suitable solutions for you, thank you!
