Features

· RK3576S quad-core Cortex-A55 CPU, Android 14 system
· Optional memory configuration 4G/8G+32G/64G/128G
· 10.1" 10-point capacitive touch IPS LCD, 1280*800 resolution
· WiFi 802.11a/b/g/n/ac/ax + BT5.4 + 10/100/1000M Gigabit Ethernet,

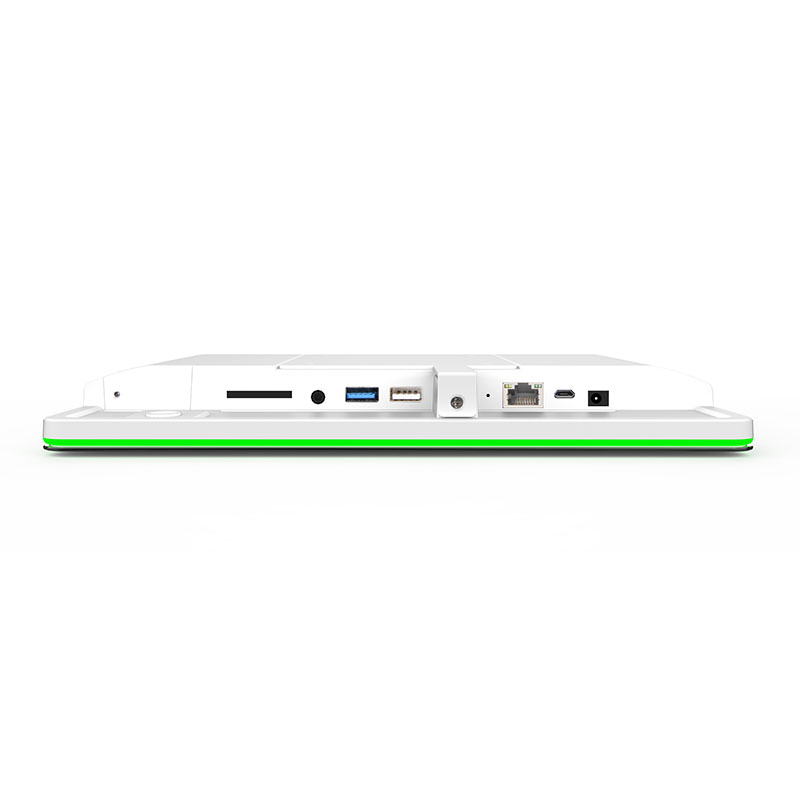

· Abundant ports: USB3.0, TTL serial, 3.5mm audio,
· Support white color and black color
· Support optional POE module, NFC, RFID etc
· SD card slot for max 64GB, 4G SIM slot available
· Optional 125K RFID & 13.56MHz NFC identification modules
· Supports up to 4K media playback, multiple video & audio format decoding
· Wide viewing angle IPS display, 16:10 aspect ratio, 1500:1 high contrast ratio
· RGB led light control file available to send for your configuration
· Support customization & ODM service based MOQ

Introduction

RS1059 is a 10.1‑inch 16:10 industrial touch panel with durable housing. Equipped with RK3576S quad‑core Cortex‑A55 processor, it runs stable Android 14 OS with 4GB RAM (2GB optional)+32GB storage (16GB/64GB optional). Adopting 1280*800 normally‑black IPS LCD with 10‑point capacitive touch, it supports Wi‑Fi 802.11a/b/g/n/ac/ax (WiFi6), Bluetooth 5.4 and 10/100/1000M Gigabit Ethernet, as well as 4G flow card via SIM slot. The device integrates abundant peripheral interfaces including USB3.0 host, TTL serial USB, SD card slot and 3.5mm earphone jack with microphone. It supports optional NFC and RFID modules., the tablet supports auto-rotation via G-sensor, making it an ideal solution for digital door board solution, access control, and secure identity verification etc.

Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime

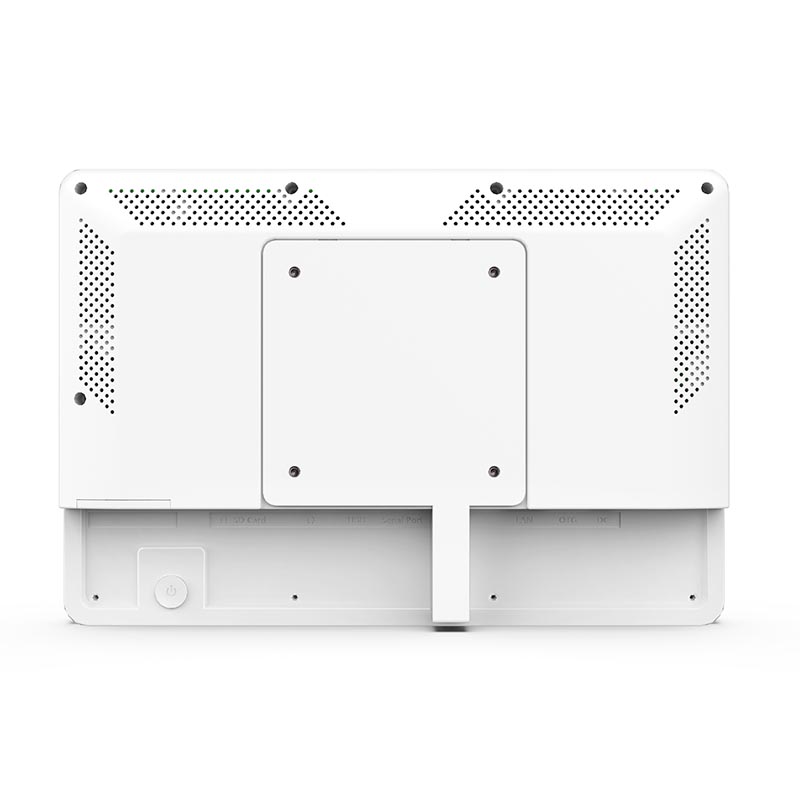

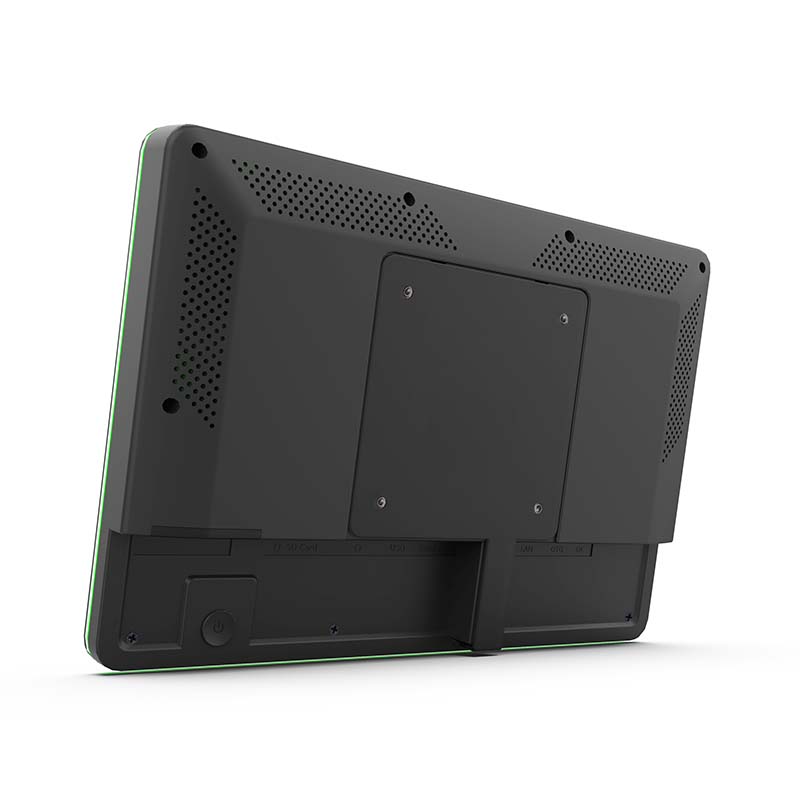

Optional VESA plate

Flexible mounting & bracket choices for any installation environments.
Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection.
For more stand mount requirements, contact us for more information.

Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC,  screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.

It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend  suitable solutions for you, thank you!
