Non-OS Touch Monitor
One of our LCD monitor serials without an operating system, features multi-touch panel, sensitive touch response and optional external camera. Available In Multiple Sizes from 10" to 24" in white/black colour, will extend to larger size soon. Built-in speakers with loud audio for payment alerts and voice prompts, easy to install. Besides that, higher screen brightness is 400 nit. All these features provide a good audio-visual and touch experience for applications such as retail, catering, shopping malls, and hospitals.
10.1" Ultra Thin Non-OS Touch Monitor With Type-C, HDMI input
Model: TM102
Introduction
The TM102 Ultra Thin non-OS touch monitor is a compact 10.1-inch interactive display built for custom embedded integration. Featuring a 1280×800 16:10 panel, 400 nits brightness and G+G capacitive 10-point touch, this bare touch display gives integrators full flexibility to pair it with your preferred host hardware. It comes equipped with Mini HDMI and dual Type-C ports that support DP video input and power delivery, plus dual 1W speakers and 100×100mm VESA mounting. Perfect for small kiosks, industrial control panels, smart home interfaces, medical auxiliary screens, retail price terminals and vehicle-mounted auxiliary displays, it delivers reliable touch interaction without locked-in onboard operating systems.
This 1280×800 panel with 400 nits brightness and 800:1 contrast fits tight enclosure spaces. Its 16:10 aspect ratio offers extra vertical screen space ideal for parameter dashboards, order menus and status readouts on small embedded devices.
Adopting G+G glass-to-glass capacitive touch structure, it supports accurate 10-point multi-touch. The sturdy touch layer resists minor surface scratches and provides responsive tapping, pinching and swiping for frequent-use interactive terminals.
Dual 8Ω 1W speakers are pre-installed to output alert tones, voice prompts and playback audio. It removes the need for separate speaker modules in self-service ticketing, access control and smart cabinet applications.
Two Type-C ports handle DP video signal and power input, alongside a Mini HDMI input for flexible host connections. The simplified cabling design speeds up integration with SBCs, mini PCs and custom controllers for space-limited projects.
Standard 100×100mm VESA mounting and included wall mount support flush wall installation or mounting inside kiosk housings. Available in black or white to match cabinet aesthetics for commercial and industrial deployments.
It runs steadily from 0°C to 40°C with wide humidity adaptability, backed by CE and FCC certifications. Low standby power at only 0.5W makes it suitable for long-running 24-hour small interactive terminals across retail, factory and smart building scenes.

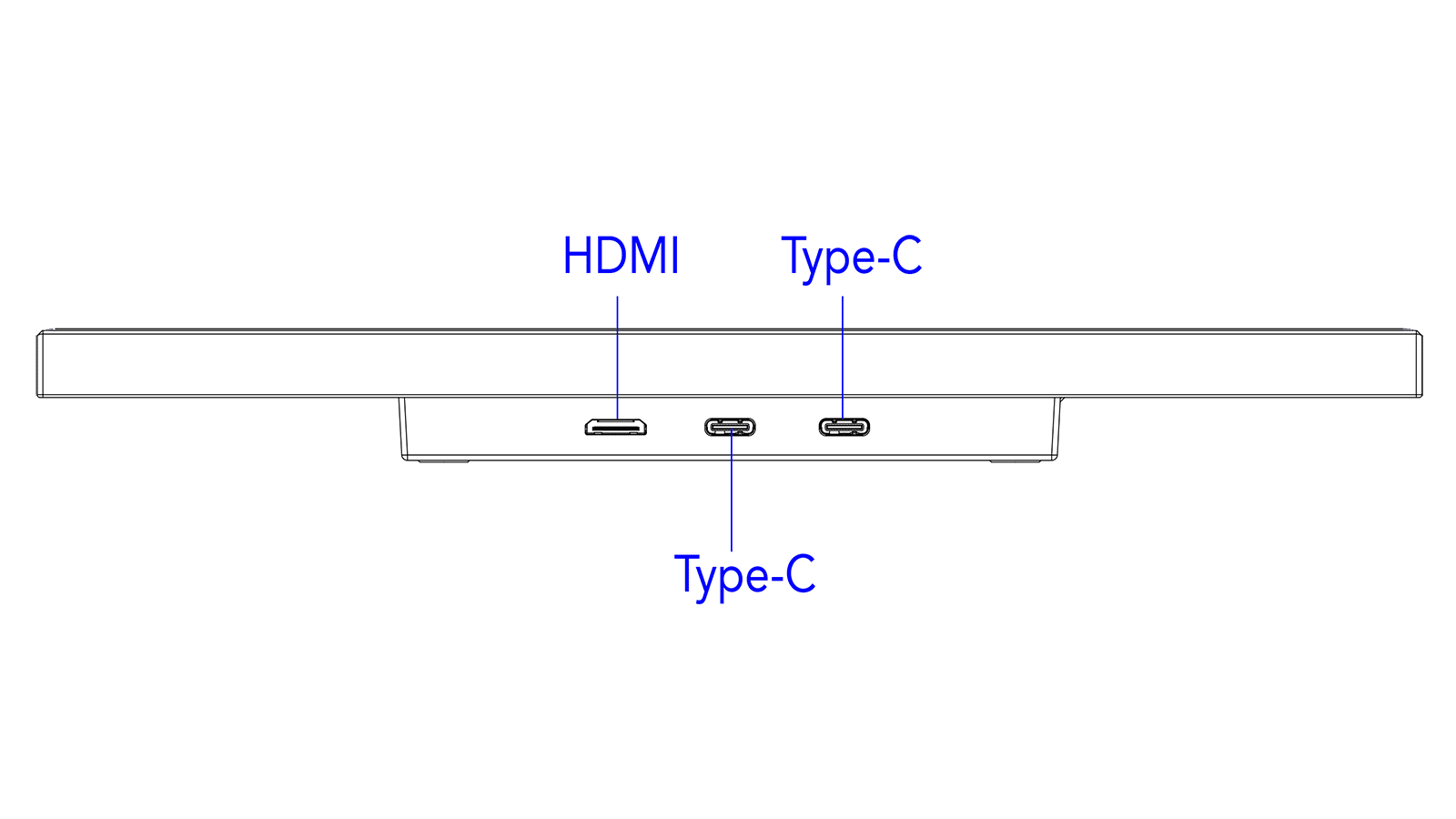

Interfaces overview
Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime
Available In Multiple Sizes
10.1" / 15.6" / 21.5" / 24"
Specification Overview
Ultra Thin Design And Full-Featured Type-C
Boasting just 12mm ultra-slim profile and a lightweight 505g frame, this touch monitor features sleek narrow bezels. It cuts down space usage on countertops and wall mounts, enabling clean, space-efficient setups across all commercial touch deployments.

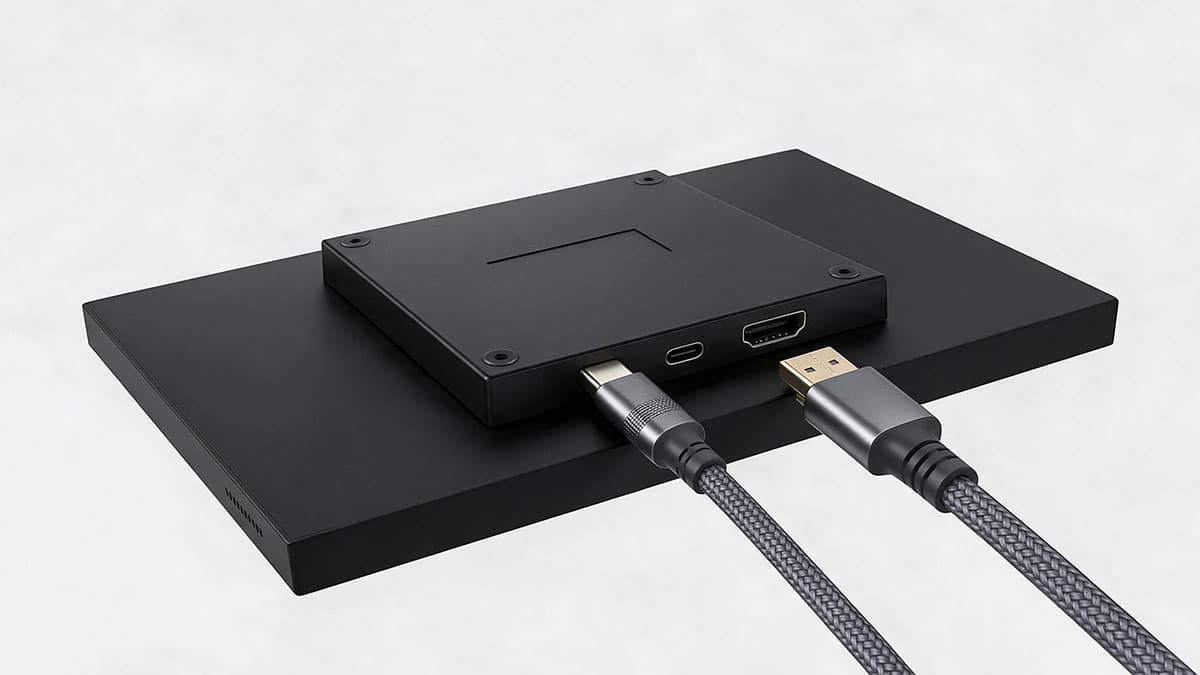

The built-in Type‑C cable consolidates steady power delivery, high‑speed data transfer, and responsive touch signaling in a single connection. It streamlines cabling for commercial touch displays deployed in retail, foodservice, and self‑service kiosk environments.

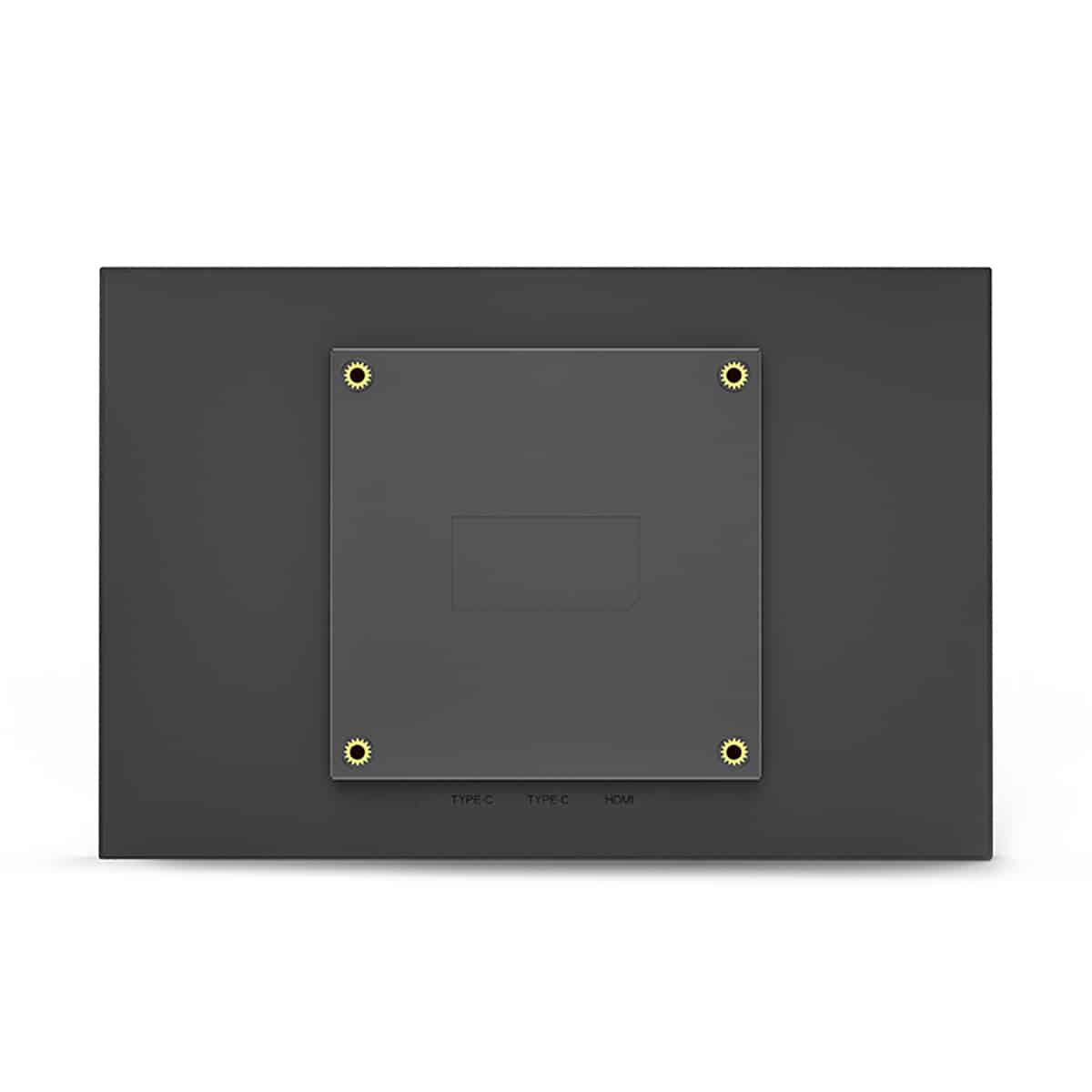

Optional VESA plate
Pick Your Ideal Mounting Style
Flexible mounting & bracket choices for any installation environments.Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection. For more stand mount requirements, contact us for more information.
Next Steps Upon Your Interest
Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC, screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend suitable solutions for you, thank you!
