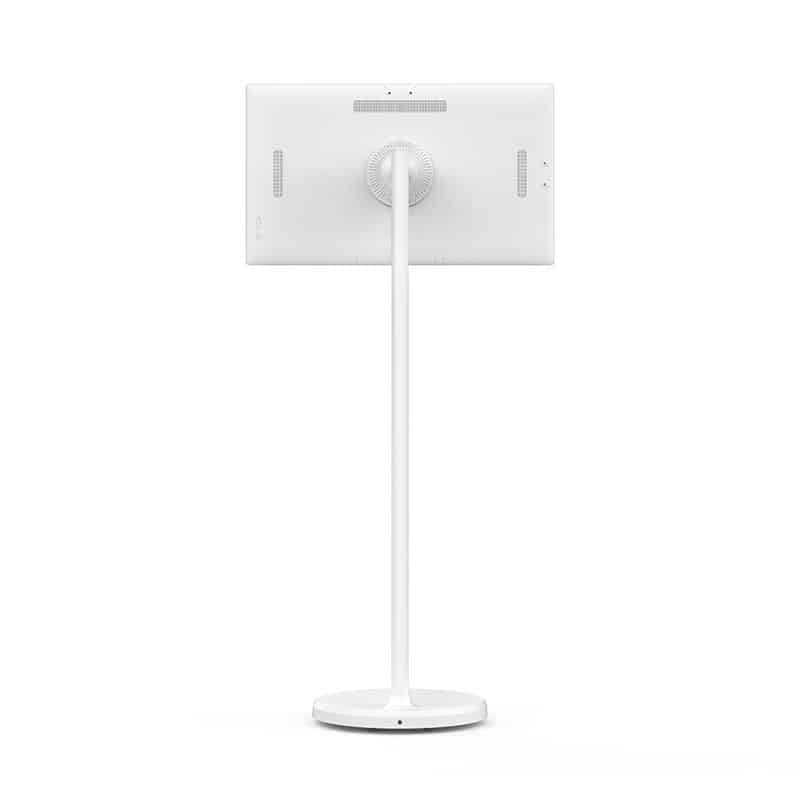

Mobile digital signage

A type of digital signage serial which is designed with ultra slim Bezel and optional external camera and optional adjustable mobile floor stand mount. Suited for retail pop-ups, hotel receptions, office lobbies, exhibition booths, self-service information counters and restaurant menu displays and live streaming etc

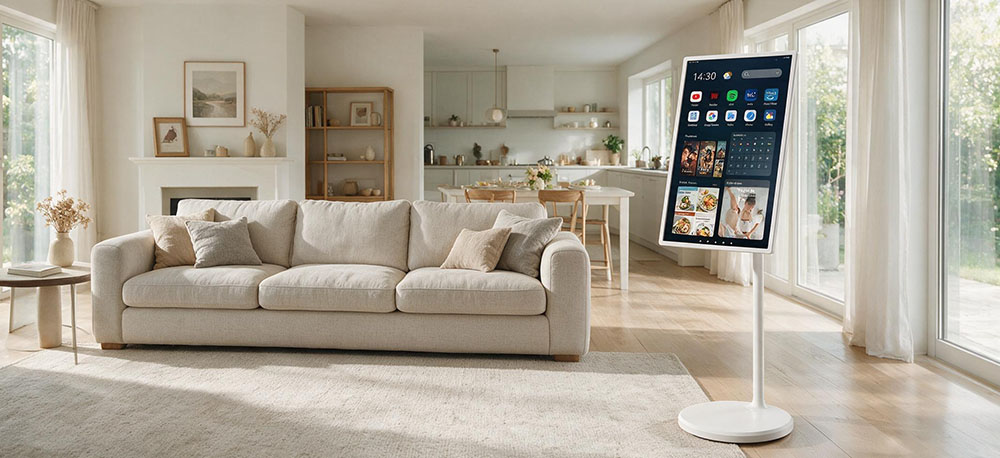

drawing tablets stand alone

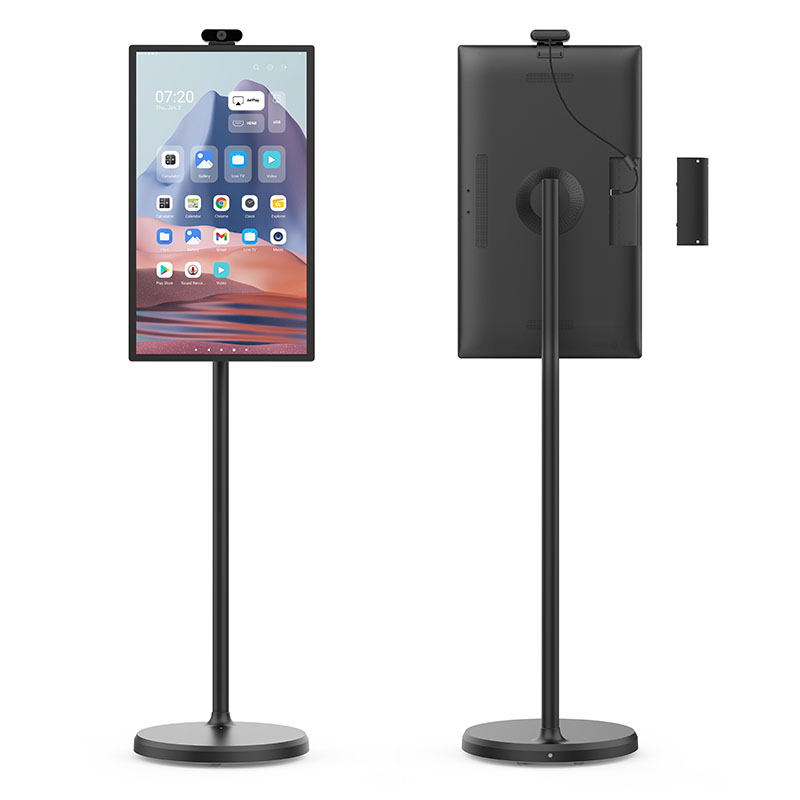

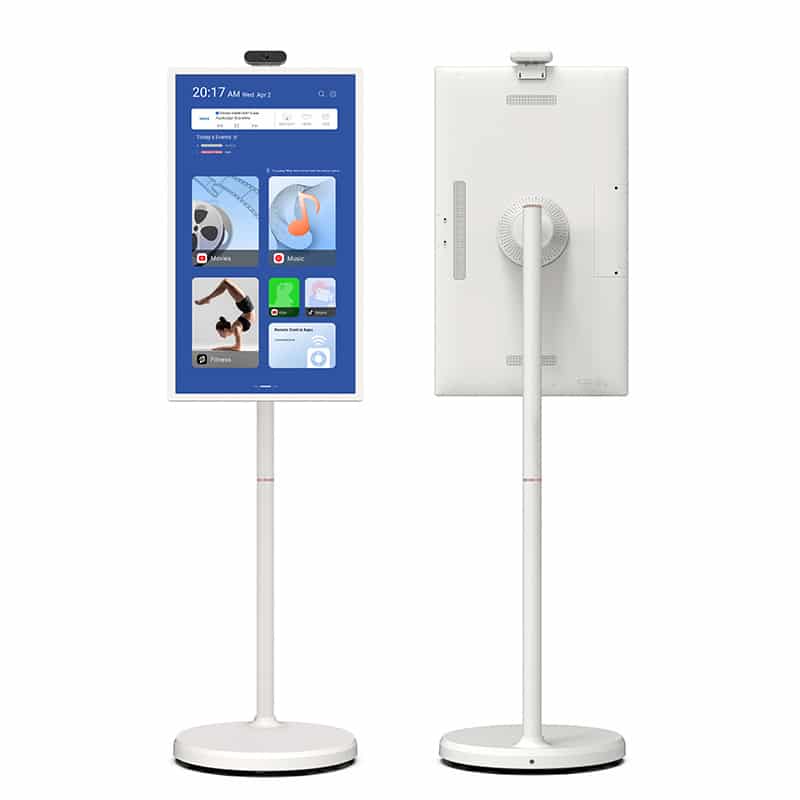

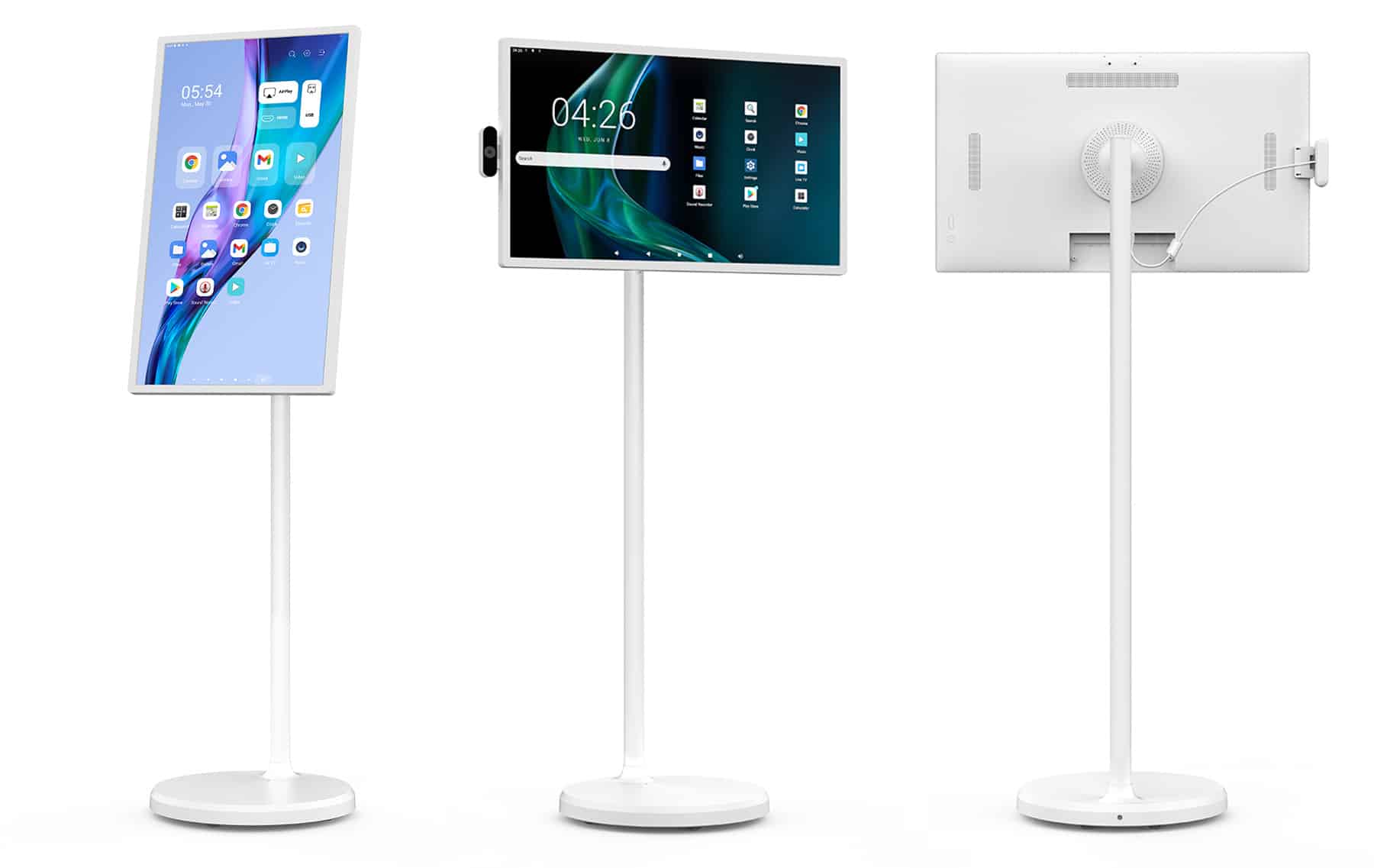

floor standing digital signage

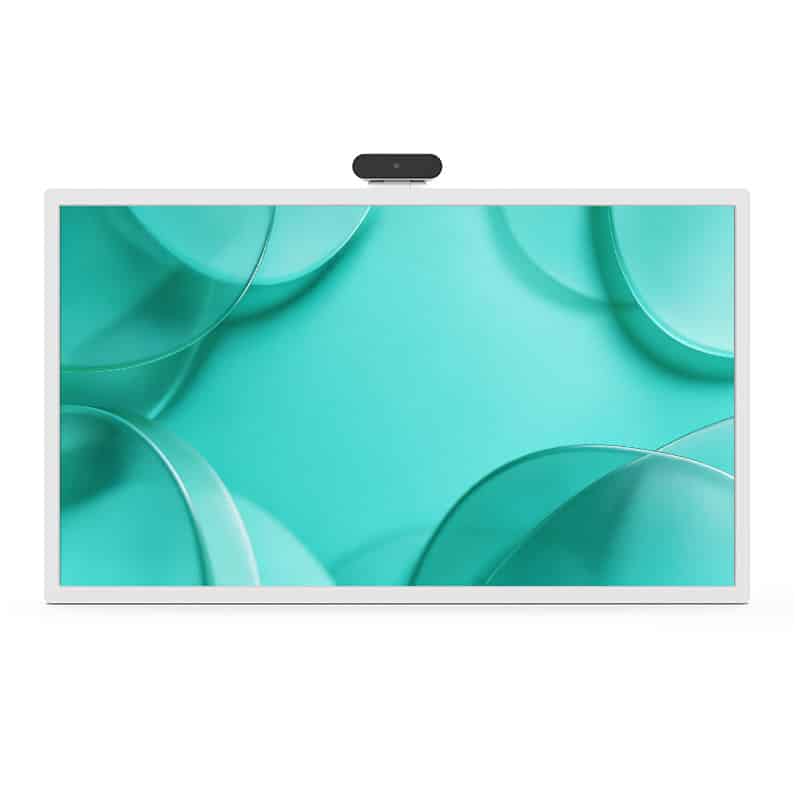

32" Ultra Slim Mobile Digital Signage With Optional External Camera

Model: NF3299 / NF3295

Introduction

The NF3299 ultra slim mobile digital signage delivers compact, lightweight interactive display performance for versatile commercial deployments. Powered by the RK3576S octa-core processor and Android 14 operating system, this 32-inch IPS signage comes standard with 4GB DDR3 RAM and 32GB EMMC storage, with flexible upgrades up to 8GB RAM and 128GB storage to accommodate multi-tasking and media-heavy content. It features a base 1920×1080 full HD IPS panel, with an optional 3840×2160 4K UHD screen upgrade available. The display offers 300 cd/m² brightness, 72% NTSC color gamut and broad 89° viewing angles, producing sharp, consistent visuals from different viewing positions. The integrated 10-point capacitive touch enables natural, responsive user interaction. Built with Wi-Fi 6 (Mu-MIMO), Gigabit Ethernet and Bluetooth 5.3, this signage ensures reliable wired or wireless network connectivity for remote content management. It features abundant ports including USB 2.0/3.0, full-function Type-C and HDMI input, plus dual 5W speakers and dual microphones with noise reduction and echo cancellation. The lightweight ABS plastic shell supports 100×100mm VESA mounting, with an optional height-adjustable rotating stand that lifts up to 180mm and rotates 90 degrees. Suited for retail pop-ups, hotel receptions, office lobbies, exhibition booths, self-service information counters and restaurant menu displays and live streaming. This mobile digital signage adapts seamlessly to temporary or fixed interactive marketing and information delivery, with the 4K panel option for premium high-detail visual presentations.

The advantages you may concern

32-inch IPS Panel with Optional 4K UHD Upgrade

32-inch IPS Panel with Optional 4K UHD Upgrade

The base 1080P IPS LCD screen delivers 16.7M rich colors and 89-degree wide viewing angles. You can upgrade to a true 4K UHD panel for ultra-sharp imagery, perfect for luxury brand promotions, fine product showcases and high-impact exhibition displays. 10-point capacitive touch via HID-USB delivers quick, lag-free multi-touch responses.

cast_connected

Robust Connectivity with Optional NFC and POE

Equipped with Mu-MIMO Wi-Fi 6, 1000M Gigabit Ethernet and Bluetooth 5.3. You can push digital signage content remotely over wireless or wired networks, with Bluetooth for pairing microphones, scanners and other accessories. Optional NFC supports card reading and identity verification, while optional POE power supply reduces wiring complexity for wall-mounted deployments in banks, offices and hospital patient or doctor rooms etc

Octa-Core CPU & Android 14 for Smooth Performance

Octa-Core CPU & Android 14 for Smooth Performance

The RK3576S octa-core chip paired with Android 14 supports native 4K video decoding and stable multitasking. Optional RAM and storage upgrades allow it to run interactive apps. Dual speakers plus dual noise-canceling microphones deliver clear sound pickup and playback, ideal for video consultations and interactive kiosk audio.

360

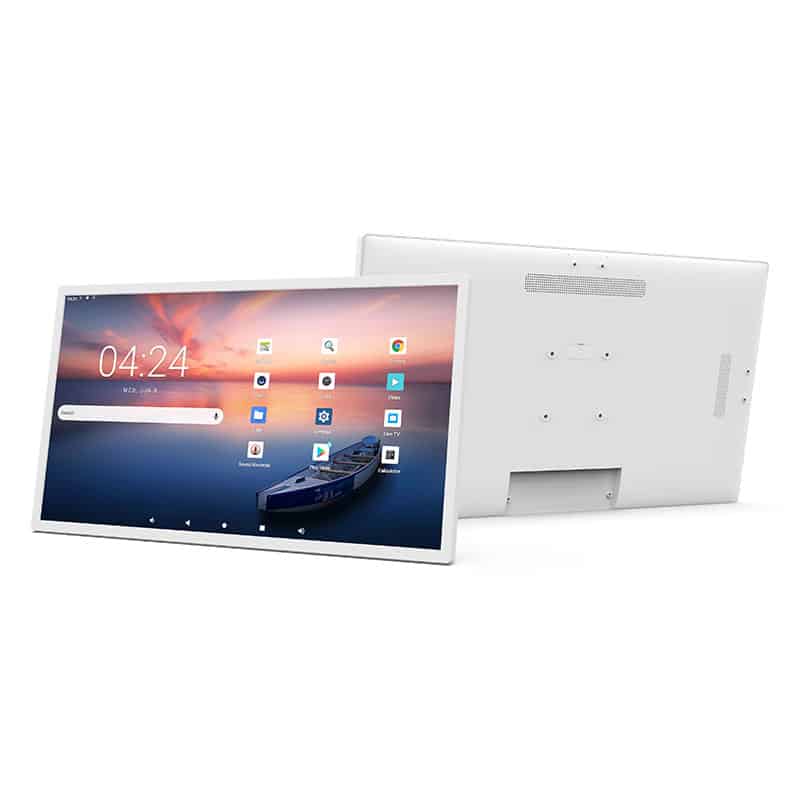

Ultra-Slim Lightweight Design with Flexible Mounting Options

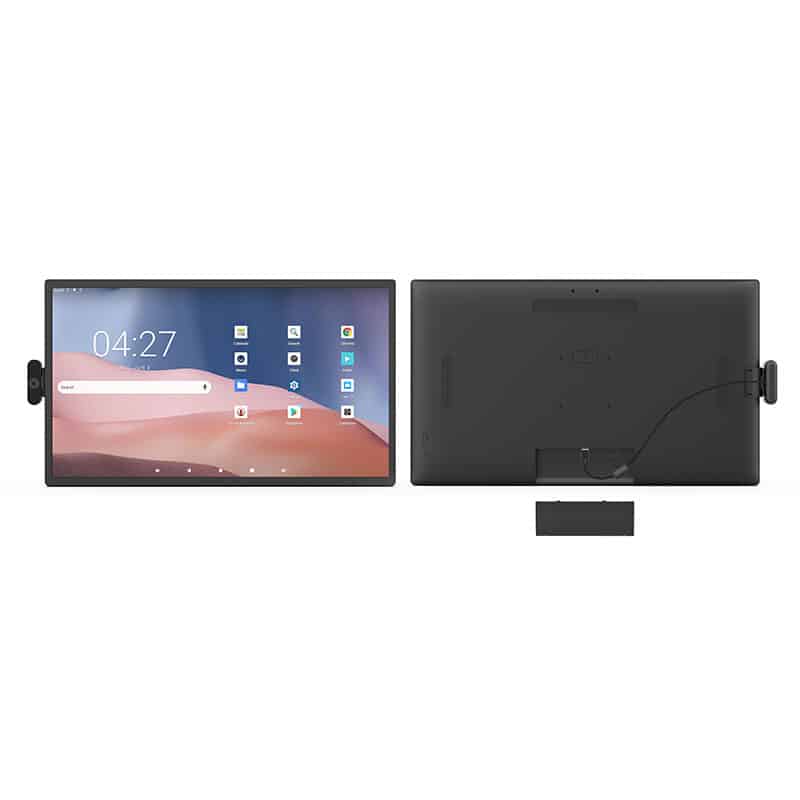

The slim ABS plastic housing weighs only 6.65kg, supporting 100×100mm VESA mounting. An optional adjustable floor stand offers 180mm height lift and 90° rotation, making it perfect for mobile pop-up events and flexible space rearrangement. In addition, this serial tablet has been designed with optional external camera.

Wireless Cast functionality And Comprehensive I/O Ports

Wireless Cast functionality And Comprehensive I/O Ports

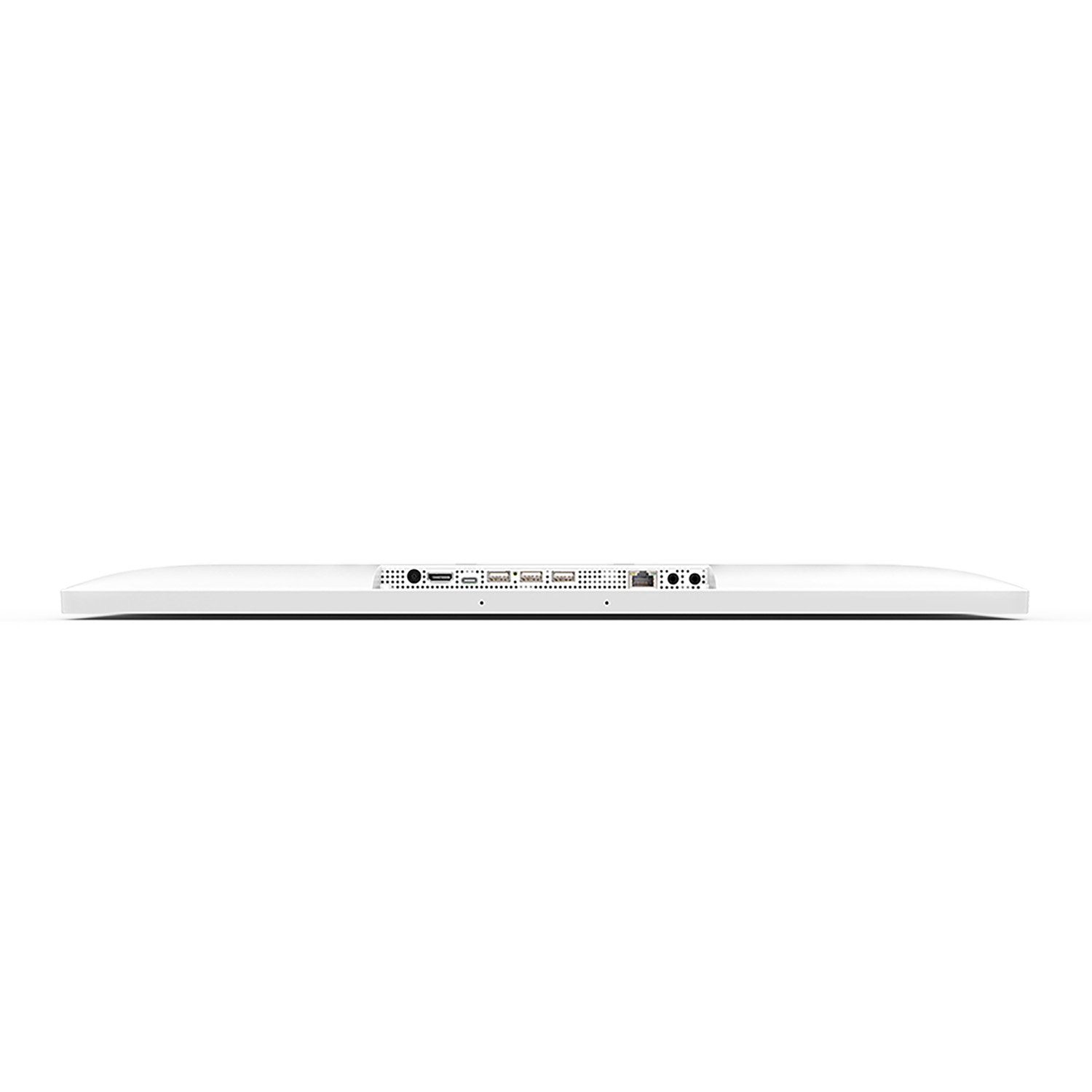

Vecoton deveopes with the third party casting apk development team to provide Wireless cast app on some of devices with license paid before shipment, which is convenient for integrators or end-users to use. It includes USB 3.0, Type-C and HDMI IN and RJ45 Ethernet ports.

Customization Service

Customization Service

We configure the specs according to customer needs. whatever it's apk installation, debug, system modification or production with printed brand on front PPC, or logo on start up, we can even evaluate hardware modifications when there is good project quantity.

Model Difference

Model No.Chipset SoCSupported OS And Remark
NF3299RK3576SAndroid14, optional 4K screen
Standard 4+64G, optional 4/8G+64/128G
NF3295RK3588S2Android13, optional 4K screen
Standard 4+64G, optional 4/8/16G+64/128G

Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime

Available In Multiple Sizes

14" / 21.5" / 24" / 32”

Specification Overview

  • iconSystem Config
  • iconPanel Config
  • iconInterface Config
  • iconStand Mount Config
System CPUQuad core cortex A53+Quad core cortex A72,
RK3576S
RAM/DDR34G (optional 8G)
ROM/EMMC32G  (optional 64/128G)
OS VersionAndroid14
MechanicalDimension773.4*432*38mm
Weight6.65Kg
Shell MaterialABS plastic
Data CommunicationWiFiIEEE 802.11b/g/n/a/ac/ax (wifi 6),
with Mu-MIMO standard
Ethernet10M/100M/1000M
BluetoothBluetooth 5.3
DisplayPanel Size32″ LCD
Panel Type IPS
Resolution1920*1080  (optioanl 3840×2160)
Display Colors16.7M Colors
Color Gamut 72% NTSC
Viewing angleR/L 89/89, U/D 89/89
Display modeNormally black
Contrast ratio1200:1
Response Time8ms
 Back-light TypeEled
Luminance300cdm2
Aspect Ratio16:9
TouchModel Type Capacitive touch screen
Number of points10-Point
Interface for touchHID-USB
Media playsVideo formatMPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC, etc.support up to 4K
Audio formatMP3/WMA/AAC/WAV/OGG, etc
PhotoJPEG/PNG/GIF,etc
 Working SurroundingStorage Temp-20℃—60℃
Working Temp0℃—45℃ 10~90%RH
InterfaceRJ45Ethernet interface
USBUSB 2.0 Host
USB USB 3.0 Host
Type_CFull Function (Except for charging function)
HDMI INSupport800*600,1024*768,1280*720,1280*800,
1280*1024,1366*768,1600*900,1920*1080, etc
Power Jack DC power input
OthersProduct ColorsWhite/Black
VESA100mm*100mm
ButtonPower/Vol+/Vol-
G-sensorSupport
Speaker4Ω*5W*2
MicrophoneStandard dual Microphone, Support noise reduction
and echo cancellation
Camera Optional external USB type camera (vertical portrait,
8.0MP with wide-angle and wide dynamic )
LanguageMulti-language
LanguageMulti-language
AccessoriesAdapter12V/5A
AC CableL=1.5m
User manual*1
RemoteOptional*1

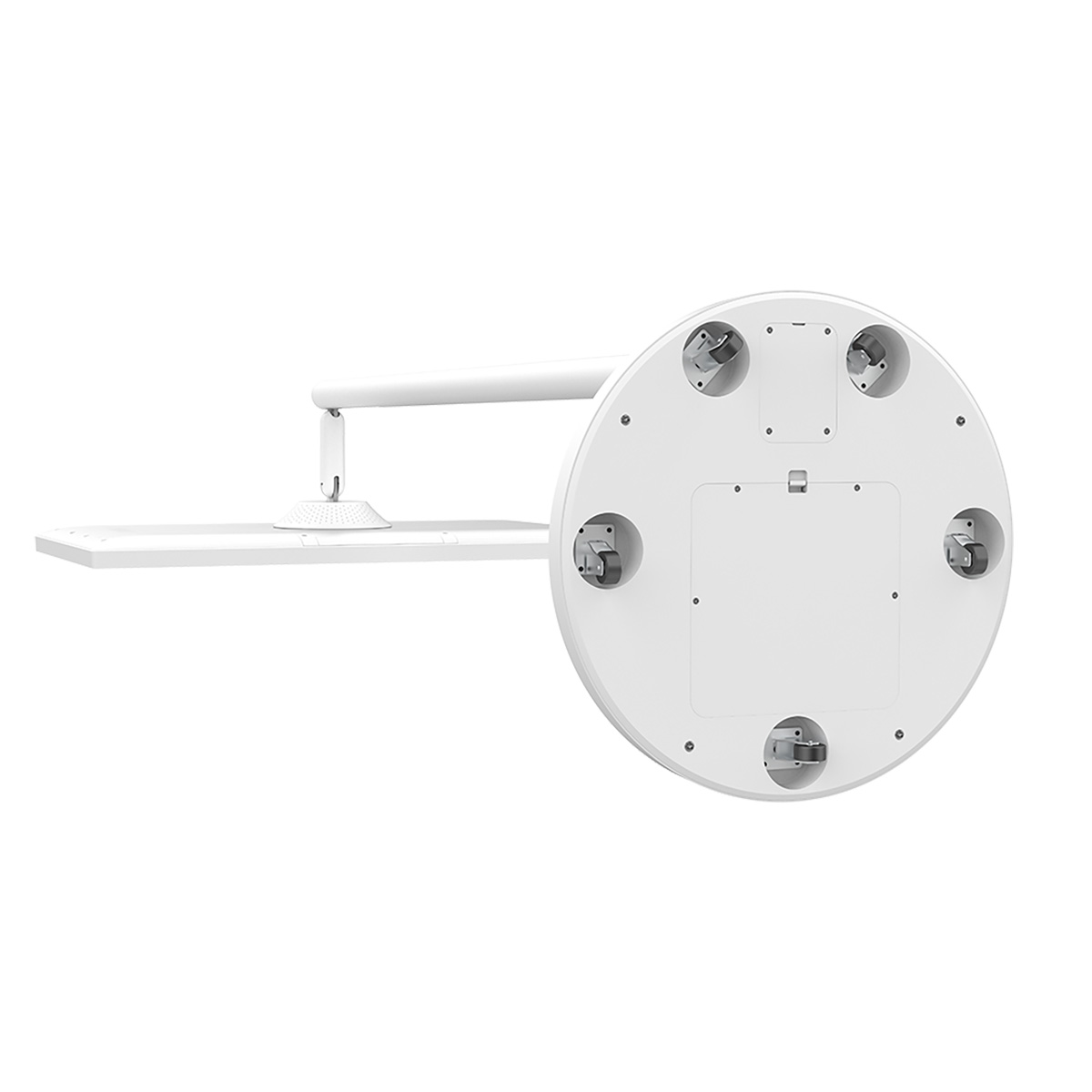

Stand MountingOptional & Lifting up-down 180mm, Rotating 90°

Note: This optional floor stand mount is only for 21.5" / 24" / 32"



ElctronicsInput VoltageDC 18V
Power  consumption≤30W
StandbyStandby≤0.5W
Built-in battery typeRechargeable lithium battery
Rated capacity14.6V/5200mAh、14.6V/6800mAh、14.6V/15000mAh
Full charge running time≈4-6H
Indicator Mode DC Plug In:RED
DC pull out :BLUE
Full charge: GREEN
InterfaceDC slot
6PIN 2.0 connector
 Working SurroundingStorage Temp-20℃—60℃
Working Temp0℃—45℃ 10~90%RH
Construction&
Function
Tilting  (Forward tilt- Lean back)-20° ~ 20°
Rotating ( Clockwise )90°
Turning  ( Left and Right )-15° ~ 15°
Lifting(up-down)180mm
Moving modeStandard universal wheel, can rotate at 360 °C.
OthersProduct ColorsBlack/Beige
AccessoriesAdapter18V
AC Cable1.5M
ScrewPA3x10*4, PWM3x16*4, PWM4x6*4
User manual*1
Cover*1
screwdriver*1



Optional NFC / RFID/ HID Reader

Multiple card reader module options for smart applications such as secure identity verification, digital interaction, access control, payment systems, membership management etc.

Simply tap a compatible card, wristband or tag for quick and convenient interaction.

√ NFC: Optional, 13.56MHz
√ RFID: Optional, 125k
√ HID: Optional, evaluated case by case per project requirements & supply availability

payment

payment system

perm_identity

Identity verification

admin_panel_settings

Access control

reddit

Digital interaction

Optional VESA plate

Pick Your Ideal Mounting Style

Flexible mounting & bracket choices for any installation environments.
Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection.
For more stand mount requirements, contact us for more information.

optional-mount

Next Steps Upon Your Interest

Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC,  screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.

It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend  suitable solutions for you, thank you!
