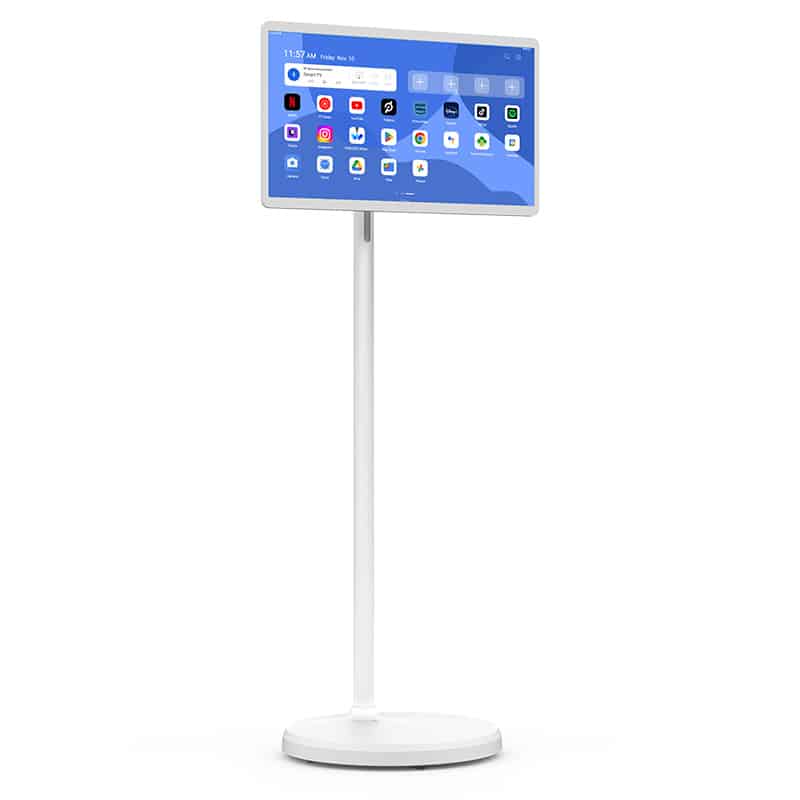

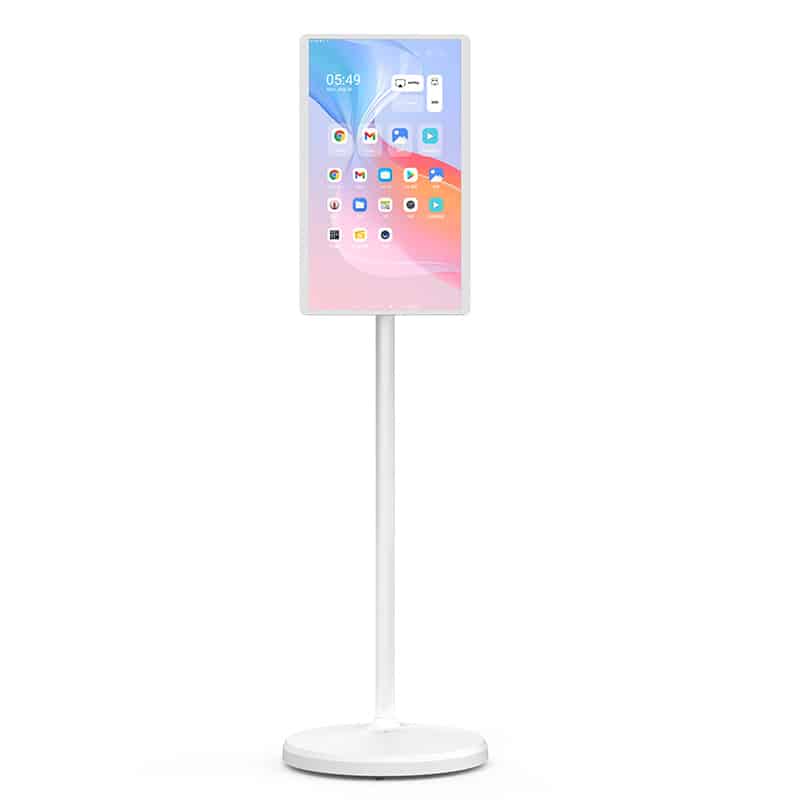

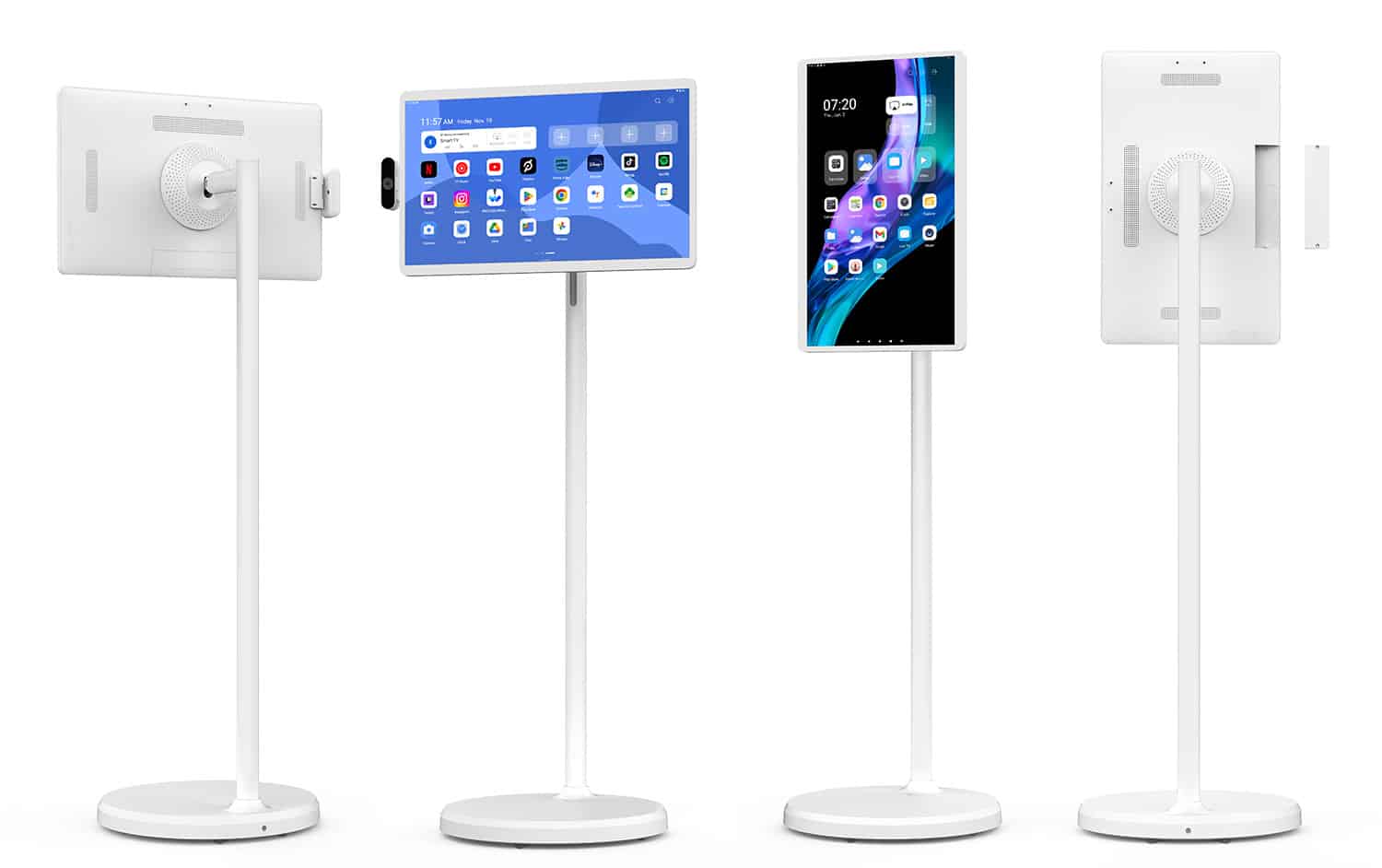

24" Ultra Slim Mobile Digital Signage With Optional External Camera

Model: NF2499 / NF2495

Introduction

The Ultra Slim Mobile Digital Signage NF2495 is a portable, all-in-one interactive display built for flexible on-location digital communications. Powered by the robust RK3588S2 octa-core processor and running Android 13, this 23.8-inch IPS touch signage delivers smooth multimedia playback and responsive 10-point in-cell touch control. It comes standard with 4GB RAM and 64GB storage, with optional upgrades to 8GB RAM and 128GB storage to support heavier content and multi-tasking. Featuring Wi-Fi 6, Gigabit Ethernet, Bluetooth 5.3 and versatile connectivity including full-function Type-C and HDMI IN, this lightweight signage supports up to 8K video decoding. The ultra-thin ABS plastic chassis is available in black or white, paired with an optional height-adjustable stand that lifts 180mm and rotates 90 degrees. It works reliably across retail, corporate lobbies, event exhibitions, healthcare receptions, and education environments, letting you deploy dynamic digital content anywhere without fixed wall mounting.

The advantages you may concern

Vivid IPS Panel with Responsive In-Cell 10-Point Touch

Vivid IPS Panel with Responsive In-Cell 10-Point Touch

The 23.8-inch IPS screen delivers wide 89° viewing angles and crisp 1080P visuals, paired with integrated in-cell 10-point multi-touch. Visitors can smoothly interact with menus, catalogs and forms, ideal for self-service kiosks and interactive event displays.

cast_connected

Full Connectivity Suite Including Wi-Fi 6 & Gigabit LAN

Built-in Wi-Fi 6 with Mu-MIMO, 1000M Ethernet and Bluetooth 5.3 ensure stable high-speed data transfer. Full-function Type-C, HDMI IN and multiple USB ports support external cameras, peripherals and signal input, great for live presentations and remote content updates.

Powerful Octa-Core Performance & Expandable Memory

Powerful Octa-Core Performance & Expandable Memory

Equipped with RK3588S2 octa-core CPU and Android 13 OS, this mobile signage handles high-resolution video, interactive apps and multi-tasking effortlessly. Optional 8GB RAM and 128GB eMMC storage give extra headroom for complex content in busy exhibition and retail scenarios.

360

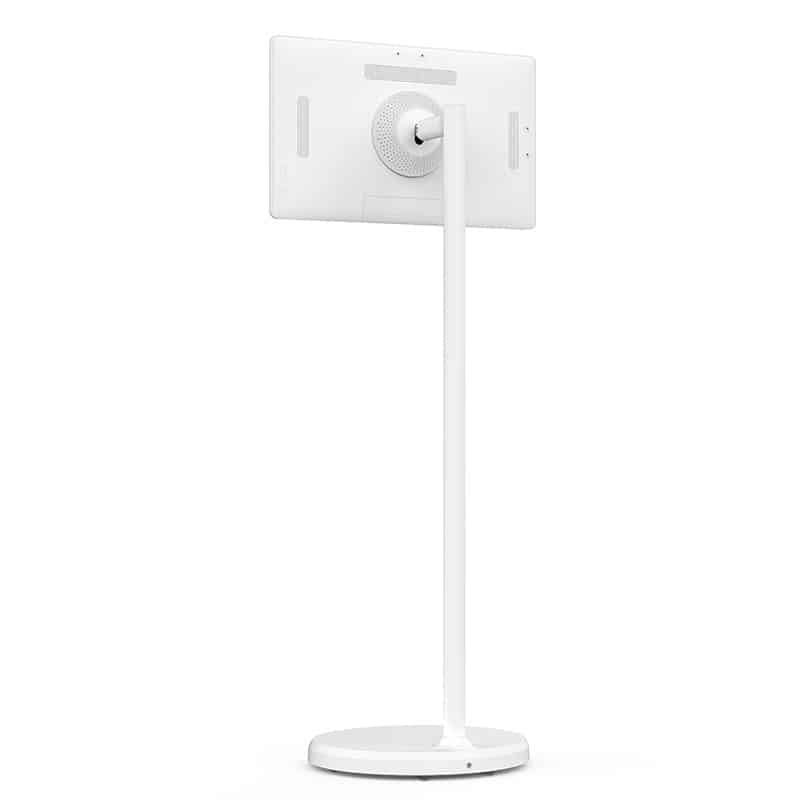

Ultra-Slim Lightweight Design with Flexible Mounting Options

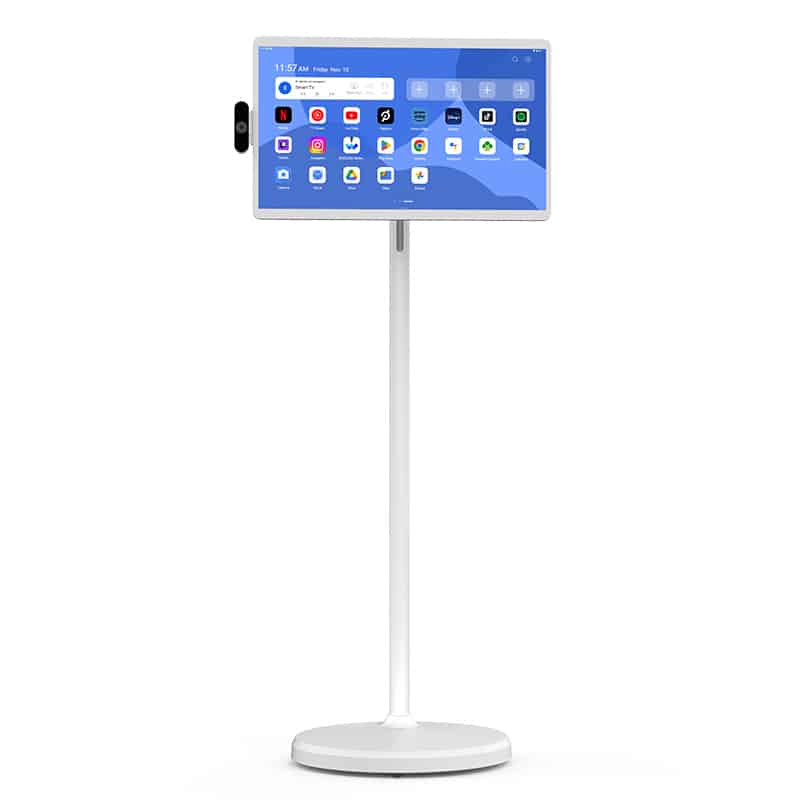

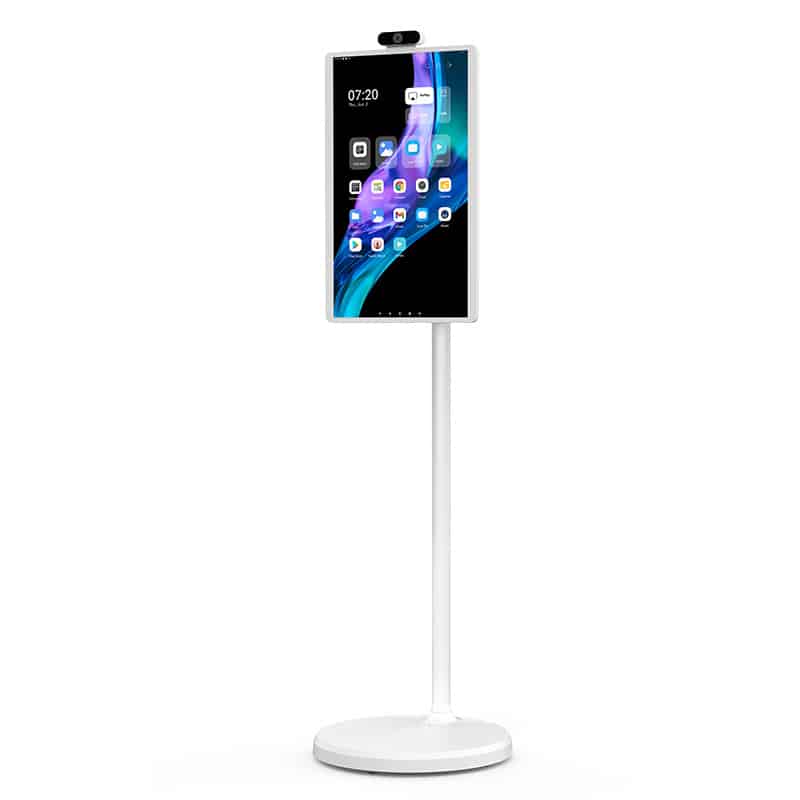

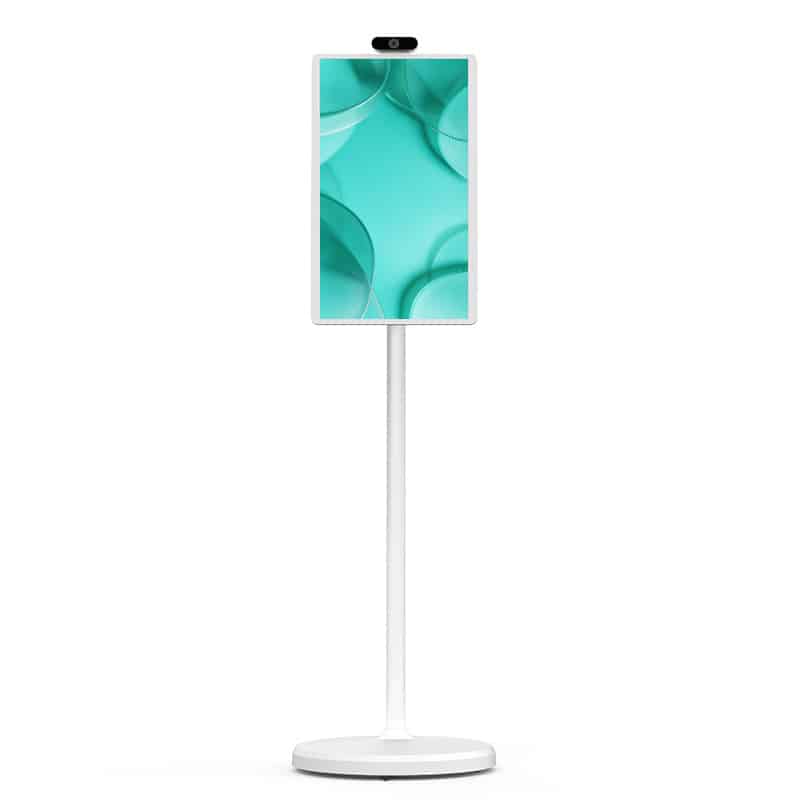

The slim ABS plastic housing weighs only 6.65kg, supporting 100×100mm VESA mounting. An optional adjustable floor stand offers 180mm height lift and 90° rotation, making it perfect for mobile pop-up events and flexible space rearrangement. In addition, this serial tablet has been designed with optional external camera.

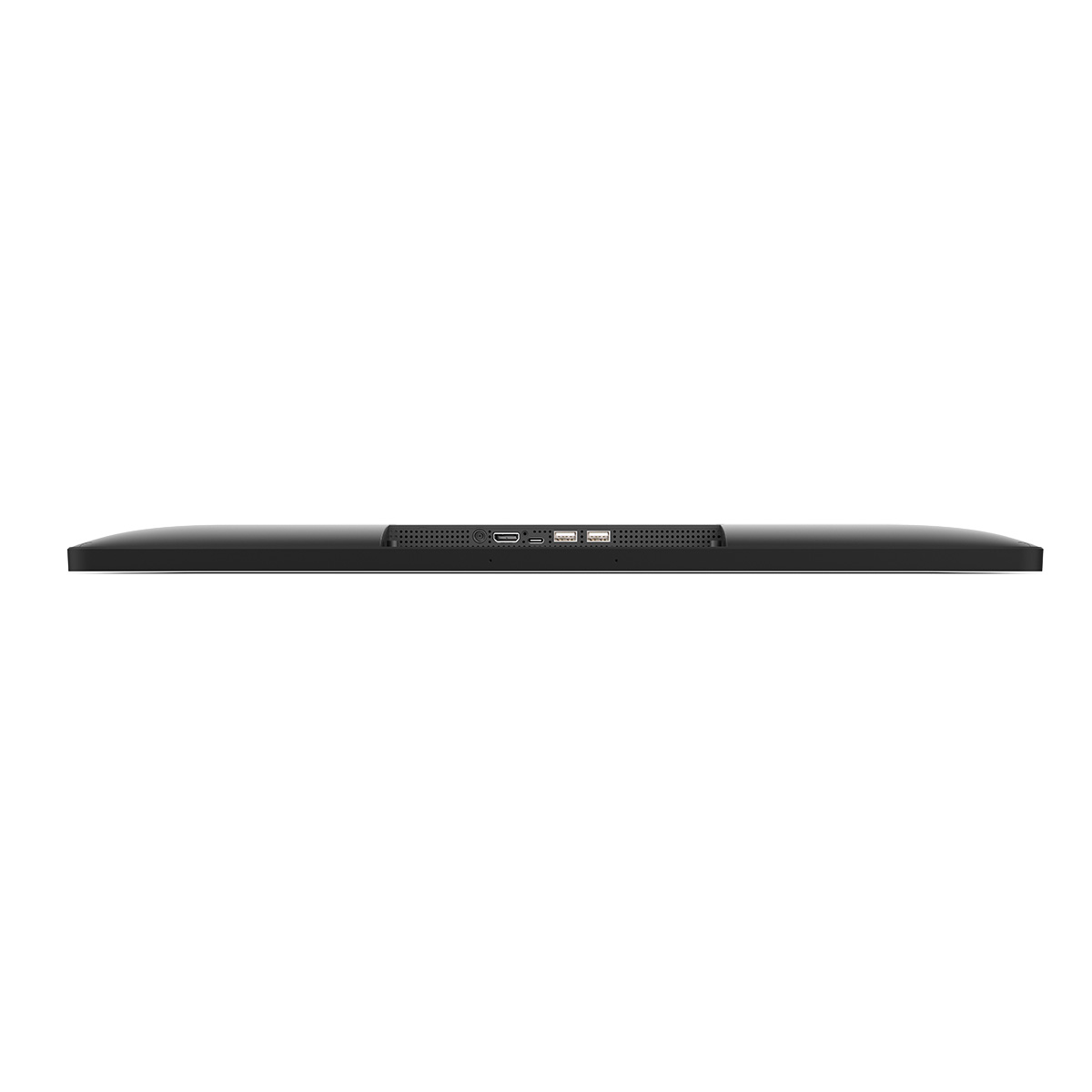

Wireless Cast functionality And Comprehensive I/O Ports

Wireless Cast functionality And Comprehensive I/O Ports

Vecoton deveopes with the third party casting apk development team to provide Wireless cast app on some of devices with license paid before shipment, which is convenient for integrators or end-users to use. It includes USB 3.0, Type-C and HDMI IN and RJ45 Ethernet ports.

Customization Service

Customization Service

We configure the specs according to customer needs. whatever it's apk installation, debug, system modification or production with printed brand on front PPC, or logo on start up, we can even evaluate hardware modifications when there is good project quantity.

Model Difference

Model No.Chipset SoCSupported OS
NF2495RK3588S2Android13, Wifi 802.11b/g/n/a/ac/ax (wifi 6)
NF2499RK3576Android14, Wifi 802.11b/g/n/a/ac/ax (wifi 6)

Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime

Available In Multiple Sizes

14" / 21.5" / 24" / 32”

Specification Overview

  • iconSystem Config
  • iconPanel Config
  • iconInterface Config
  • iconStand Mount Config
System CPUQuad core cortex A55+Quad core cortex A76, RK3588S2
RAM/DDR34G (optional 8G)
ROM/EMMC64G  (optional 128G)
OS VersionAndroid13
MechanicalDimension549.71*335.77*27.8mm
Weight4.05Kg
Shell MaterialABS plastic
Data CommunicationWiFiIEEE 802.11b/g/n/a/ac/ax (wifi 6),
with Mu-MIMO standard
Ethernet10M/100M/1000M
BluetoothBluetooth 5.3
DisplayPanel Size23.8″LCD
Panel Type IPS
Resolution1920*1080
Display Colors16.7M Colors
Color Gamut 72% NTSC
Viewing angleR/L 89/89, U/D 89/89
Display modeNormally black
Contrast ratio1000:1
Response Time9ms
 Back-light TypeEled
Luminance250cdm2
Aspect Ratio16:9
TouchModel Type In cell touch
Number of points10-Point
Interface for touchHID-USB
Media playsVideo formatMPEG-1,MPEG-2,MPEG-4,H.265,H.264,H.263,VC-1,VP8,VP9,MVC,AV1, etc., support up to 8K@60fps
Audio formatMP3/WMA/AAC/WAV/OGG, etc
PhotoJPEG/PNG/GIF,etc
 Working SurroundingStorage Temp-20℃—60℃
Working Temp0℃—45℃ 10~90%RH
InterfaceRJ45Ethernet interface
USBUSB 2.0 Host
USB USB 3.0 Host
Type_C/USB TOUCHMulti-function interface: Default Type-c full function, Connecting to HDMI IN,
optional  external device with touch function
HDMI INSupport 800*600,1024*768,1280*720,1280*800,1280*1024,1366*768,
1600*900,1920*1080,3840*2160, etc
Power Jack DC power input
OthersProduct ColorsWhite/Black
VESA100mm*100mm
ButtonPower/Vol+/Vol-
G-sensorSupport
Speaker4Ω*5W*2
MicrophoneStandard  dual Microphone , Support noise reduction and echo cancellation
NFCOptional, 13.56MHz
Camera Optional  External USB type camera (vertical portrait ,  8.0MP  with  wide-angle and wide dynamic )
LanguageMulti-language
AccessoriesAdapter12V/5A
AC CableL=1.5m
User manual*1
RemoteOptional*1
Stand MountingOptional & Lifting up-down 180mm, Rotating 90°

Note: This optional floor stand mount is only for 21.5" / 24" / 32"



ElctronicsInput VoltageDC 18V
Power  consumption≤30W
StandbyStandby≤0.5W
Built-in battery typeRechargeable lithium battery
Rated capacity14.6V/5200mAh、14.6V/6800mAh、14.6V/15000mAh
Full charge running time≈4-6H
Indicator Mode DC Plug In:RED
DC pull out :BLUE
Full charge: GREEN
InterfaceDC slot
6PIN 2.0 connector
 Working SurroundingStorage Temp-20℃—60℃
Working Temp0℃—45℃ 10~90%RH
Construction&
Function
Tilting  (Forward tilt- Lean back)-20° ~ 20°
Rotating ( Clockwise )90°
Turning  ( Left and Right )-15° ~ 15°
Lifting(up-down)180mm
Moving modeStandard universal wheel, can rotate at 360 °C.
OthersProduct ColorsBlack/Beige
AccessoriesAdapter18V
AC Cable1.5M
ScrewPA3x10*4, PWM3x16*4, PWM4x6*4
User manual*1
Cover*1
screwdriver*1



Optional NFC / RFID/ HID Reader

Multiple card reader module options for smart applications such as secure identity verification, digital interaction, access control, payment systems, membership management etc.

Simply tap a compatible card, wristband or tag for quick and convenient interaction.

√ NFC: Optional, 13.56MHz
√ RFID: Optional, 125k
√ HID: Optional, evaluated case by case per project requirements & supply availability

payment

payment system

perm_identity

Identity verification

admin_panel_settings

Access control

reddit

Digital interaction

Optional VESA plate

Pick Your Ideal Mounting Style

Flexible mounting & bracket choices for any installation environments.
Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection.
For more stand mount requirements, contact us for more information.

optional-mount

Next Steps Upon Your Interest

Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC,  screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.

It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend  suitable solutions for you, thank you!
