Edge-light Signage
A type of digital sign features an LED lighting design: it can be fitted with light bars on the left and right sides, or an LED light ring along the edge of the tablet-style panel, such kind of tablets are welcomed to be used as meeting room signage, hospital patient room door board etc

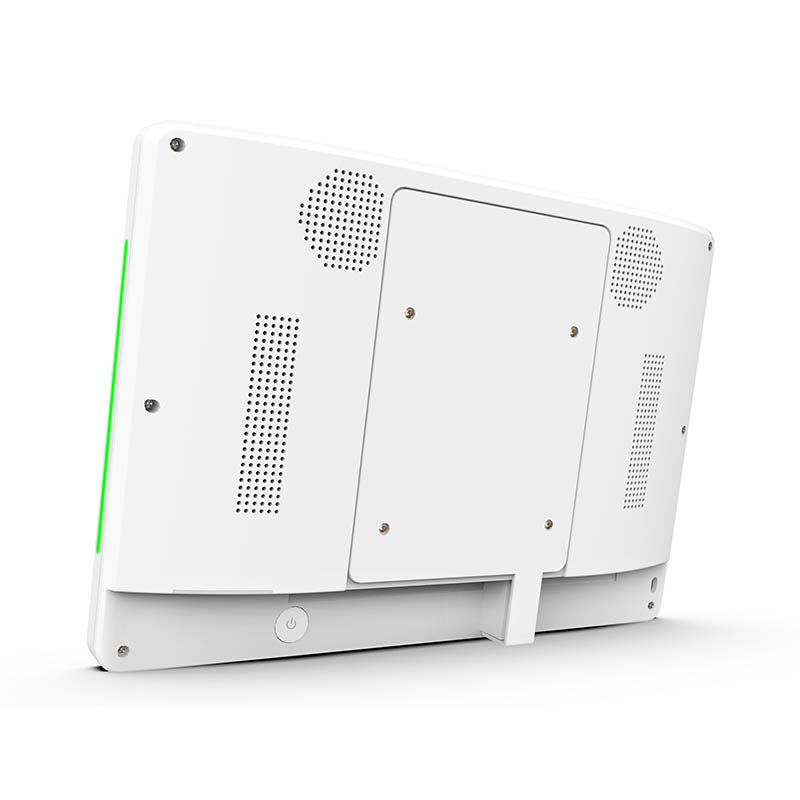

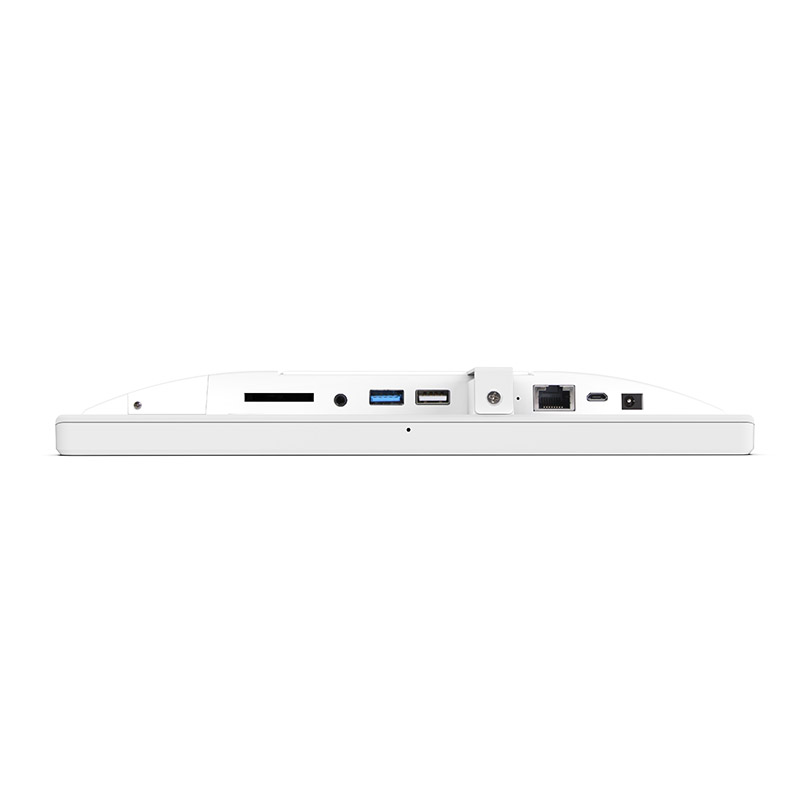

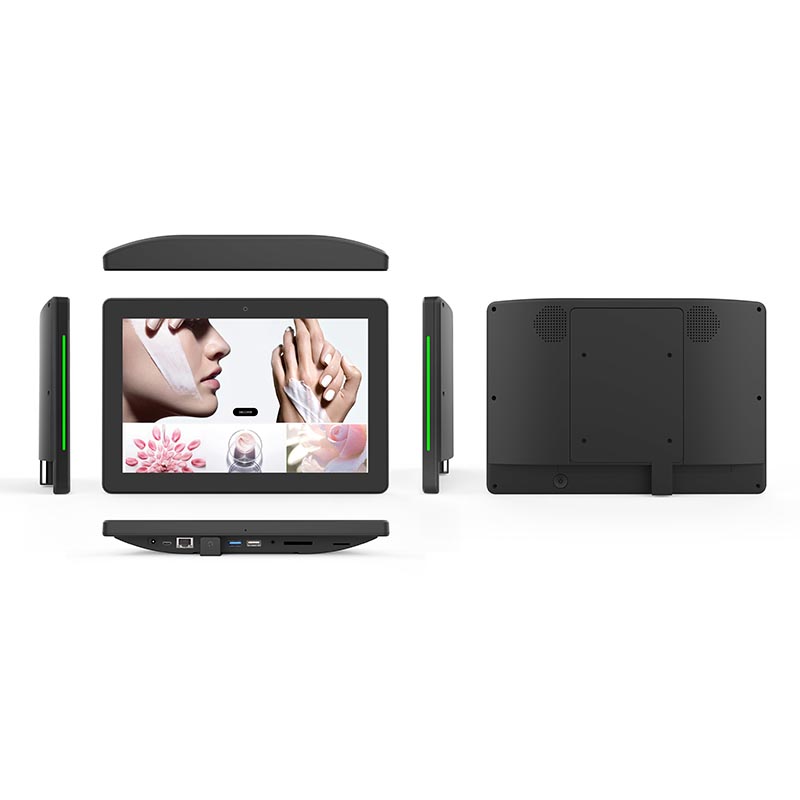

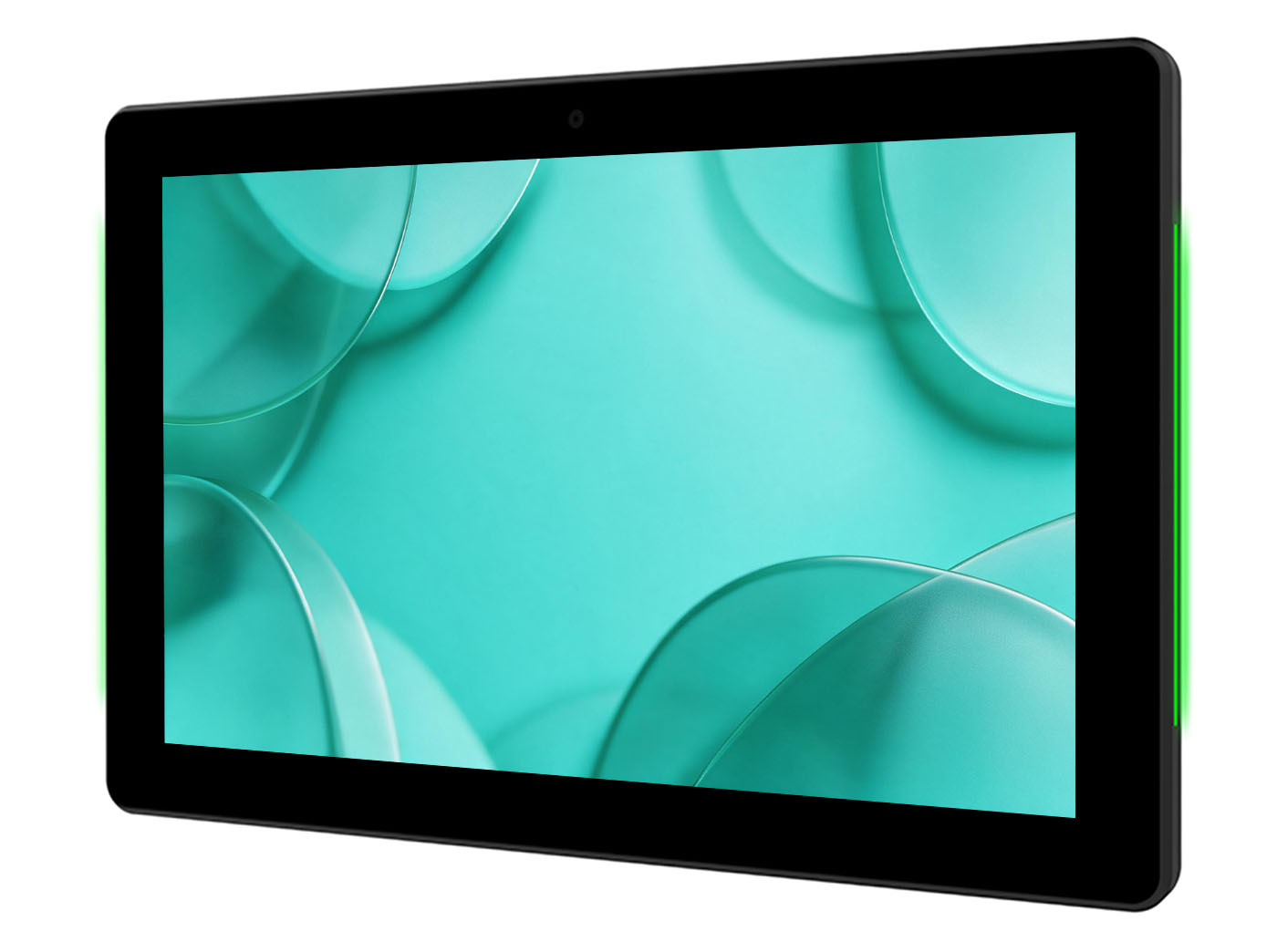

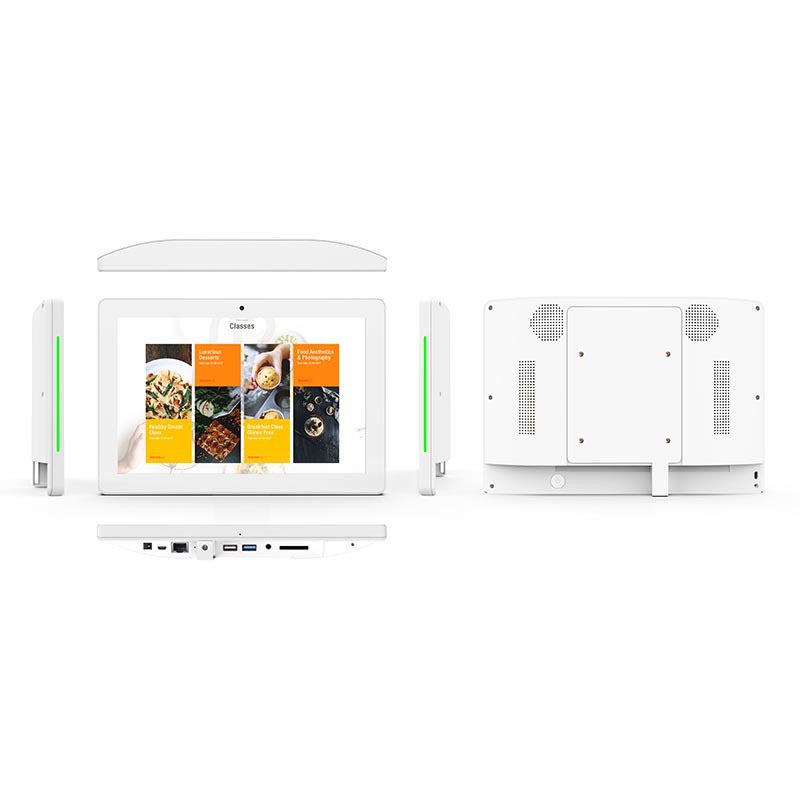

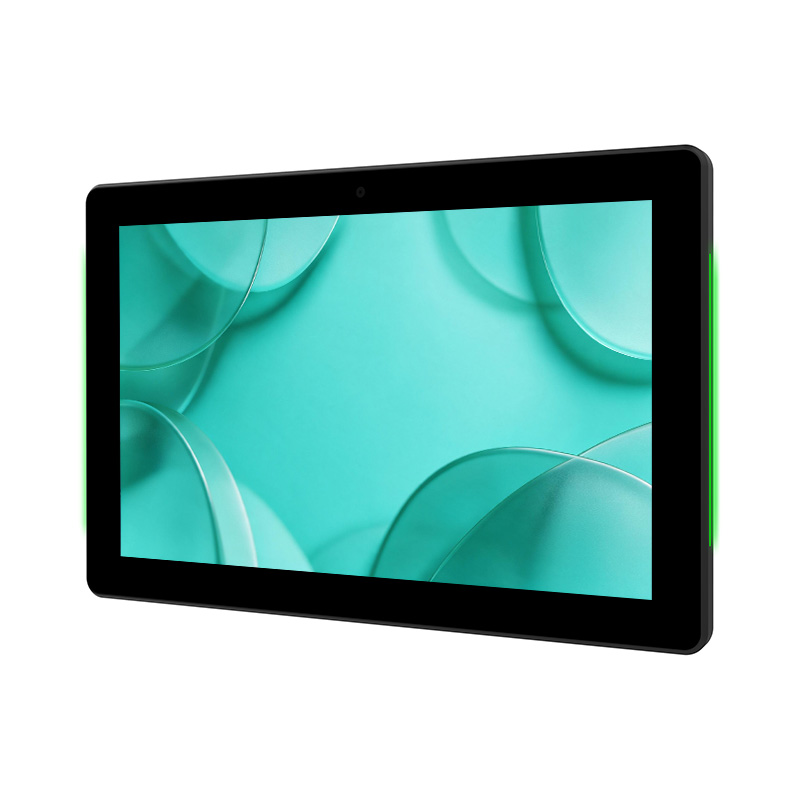

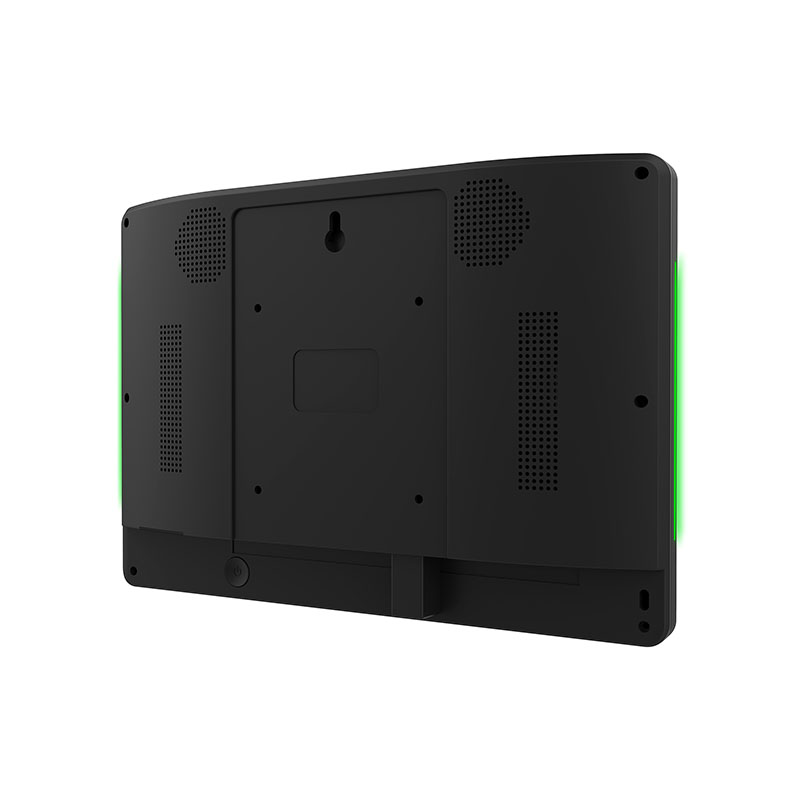

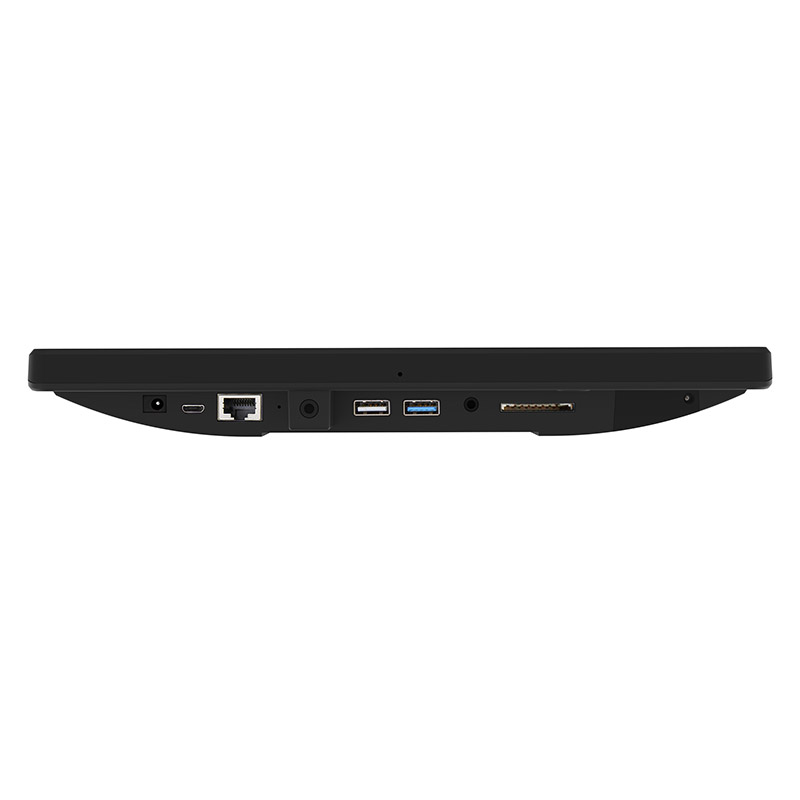

10.1" Meeting room signs with LED light bars on both sides
Model: RF1048 / RF1049 / RF1045
Features
· Multiple chip solutions optional: RK3568, RK3576S, RK3588S· RK3568 quad-core CPU with Android 11 OS and other OS version available· Expandable RAM and internal storage· 10.1-inch IPS screen with 1280x800 resolution, 10-point capacitive touch· Support Wifi2.4G&5G, Bluetooth 5.4 and Wifi6 on higher CPU option· Support Ethernet RJ45 with optional 30W POE power supply· Optional 13.56MHz NFC and 125K RFID intelligent identification modules· Rich peripheral interfaces, support SD card expansion and multi-function USB port· Built-in RGB light bar, 2×3W speakers and 2MP wide-angle USB camera· 75×75mm VESA mount, 90° G-sensor support, black/white color optional· Stable working environment, multi-language support· Support customization & ODM service based MOQ
Introduction
RF1048 is a 10.1-inch 16:10 industrial touch panel available in black and white. Equipped with RK3568 quad-core Cortex-A55 processor, it runs stable Android 11 OS with 2GB RAM + 16GB storage (4GB/32GB/64GB optional). Adopting 1280*800 IPS LCD with 10-point capacitive touch, it supports Wi-Fi IEEE 802.11a/b/g/n/ac/ax, Bluetooth 5.4 and Gigabit Ethernet with optional 30W IEEE802.3at POE. It integrates complete peripheral interfaces, built-in RGB LED light bar, 2MP wide-angle camera, mic and dual 3W speakers, with optional 4G, NFC and RFID modules. CE & FCC certified, it is widely used for commercial and indoor interactive terminals.
The edge-light signage serial product has multiple sizes available to choose from 8 to 32 inch， which meets your different visual experience needs
With RGB Led light bars on the both sides of tablets or led light ring on the tablets, the integrators could use our provided LED control code to realize the preferred colour displayed on the edge of tablets
The machine's high-performance design eliminates worries about malfunctions when conducting demos outdoors, and makes your presentations appear more professional
Vecoton provides muti-chipset SoC soulutions for your selection, Highest performance and cost-effective solutions are available for customers to choose from.
Vecoton deveopes with the third party casting apk development team to provide Wireless cast app on some of devices with license paid before shipment, which is convenient for integrators or end-users to use
We configure the specs according to customer needs. whatever it's apk installation, debug, system modification or production with printed brand on front PPC, or logo on start up, we can even evaluate hardware modifications when there is good project quantity.
Model Difference
Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime
Available Serial Size
10.1" / 13.3" / 15.6"
Specification Overview
Optional NFC / RFID/ HID Reader
Multiple card reader module options for smart applications such as secure identity verification, digital interaction, access control, payment systems, membership management etc.Simply tap a compatible card, wristband or tag for quick and convenient interaction.
√ NFC: Optional, 13.56MHz√ RFID: Optional, 125k√ HID: Optional, evaluated case by case per project requirements & supply availability
payment system
Identity verification
Access control
Digital interaction
Optional VESA plate
Pick Your Ideal Mounting Style
Flexible mounting & bracket choices for any installation environments.Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection. For more stand mount requirements, contact us for more information.
Next Steps Upon Your Interest
Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC, screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend suitable solutions for you, thank you!
