In-vehicle PC
Our rugged in-vehicle computers are purpose-built for harsh field and onboard operations. Designed to support vehicle dispatching, fleet management, industrial control, and construction workflows, this durable hardware lineup delivers reliable performance, multi-network connectivity, rich interfaces RS232, RS485 and CAN etc. These industrial-grade devices keep field crews connected and productive across demanding mobile work environments.
10.1" In-vehicle Computer
Model: V10M/ V10C
Introduction
Built for heavy‑duty mobile deployments, the V10C and V10M are rugged in‑vehicle computers engineered to deliver stable performance for vehicle dispatching, fleet management, industrial control, and construction‑site operations. This 10.1‑inch HD rugged unit features a high‑brightness 1000‑nit display with 10‑point capacitive touch, built to withstand harsh on‑vehicle working conditions. Rich standard and optional I/O ports expand system capability: standard interfaces include MICRO‑SIM slot, USB port, and M12‑8 power input; optional ports cover RJ45 Ethernet, RS232, RS485, CAN bus, and additional USB connectors. Certified to IP65 rating, supporting multi‑constellation GNSS positioning, dual‑band Wi‑Fi 5, Bluetooth and optional 4G‑LTE connectivity, V10C / V10M reliably collect and transmit field data for mobile fleets and industrial vehicle installations.
Robust Processing Power for Heavy‑Duty Workflows
Powered by a high‑performance octa‑core CPU featuring two Arm Cortex‑A76 high‑performance cores clocked up to 2.2 GHz and a capable Arm Mali‑G57 GPU, the V10M rugged in‑vehicle computer delivers reliable computing performance for complex field jobs. Running Android 12, it offers intuitive user interfaces and broad application compatibility, perfectly suited for vehicle dispatching, fleet management and industrial control deployments.
Reliable Multi‑Network Connectivity
The V10M in‑vehicle computer supports a full suite of communication protocols, including 4G LTE, dual‑band Wi‑Fi, and Bluetooth 5.2 to deliver uninterrupted connectivity across full work shifts. It features multi‑constellation GNSS with GPS, GLONASS and Beidou, compatible with rod antennas and vehicle‑mount mushroom antennas for real‑time vehicle tracking and asset management. An optional 13.56 MHz NFC module enables fast‑read identification to accommodate varied on‑site workplace requirements.
Versatile I/O Expansion

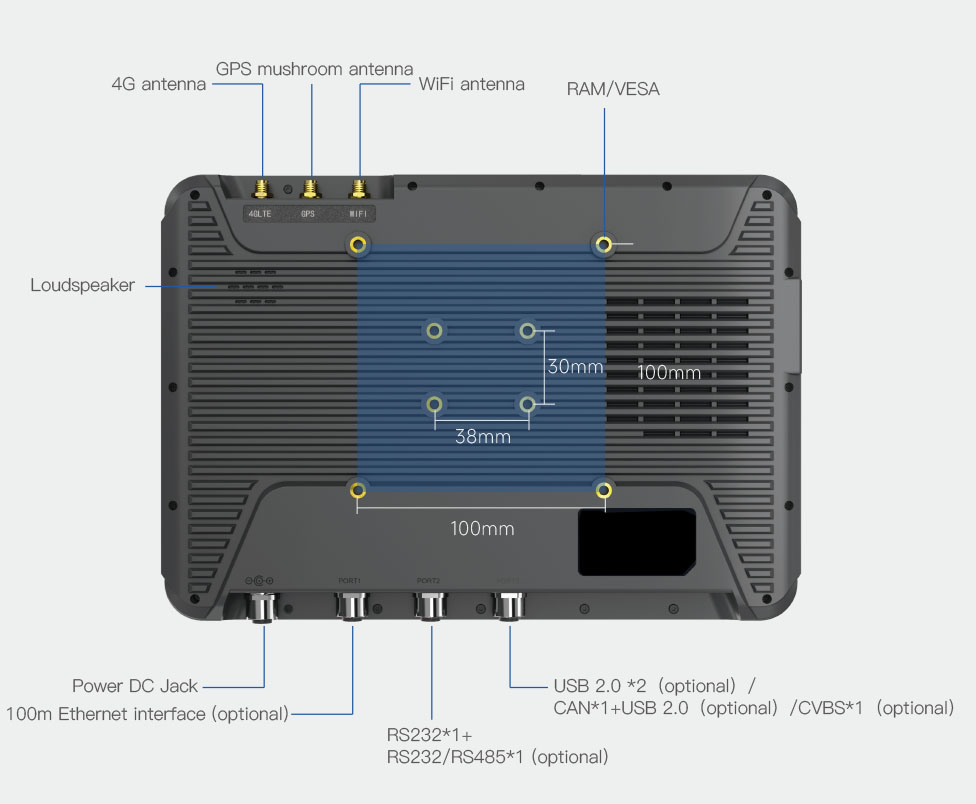

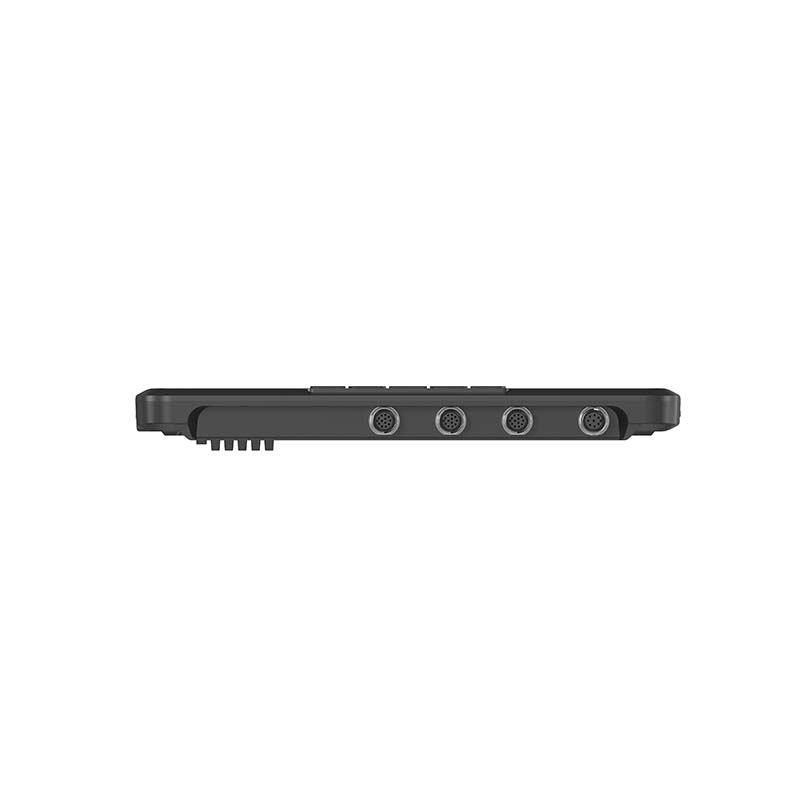

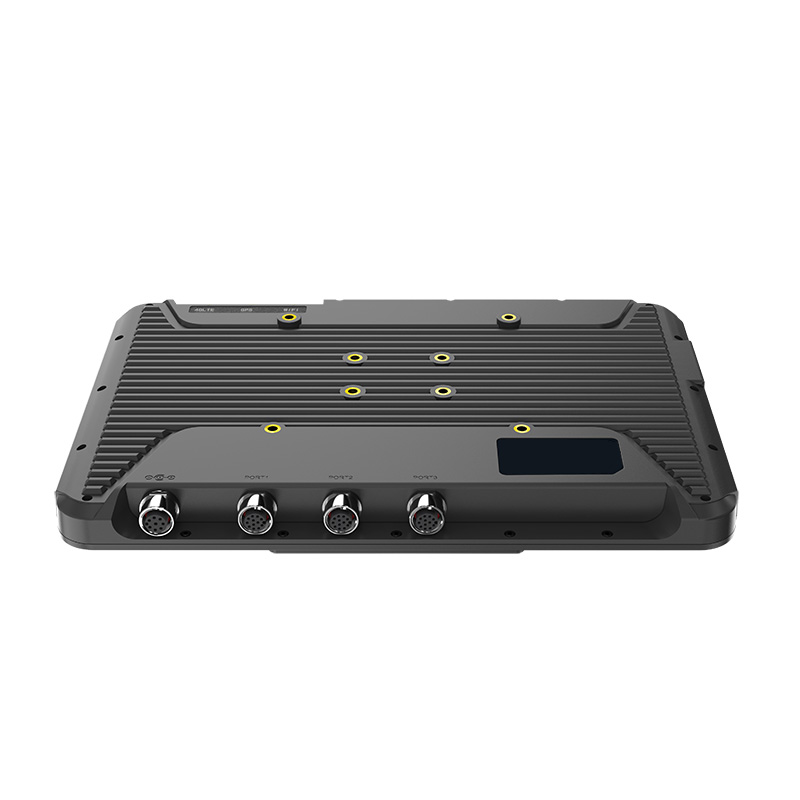

The V10M in-vehicle computer features one USB 2.0 Type-A port, one Micro-SIM slot, one M12-8 aviation-style charging connector, plus three M12-12 aviation-style connectors. A wide selection of functional adapter accessories enables flexible configuration. The M12-12 ports can be adapted to USB 2.0, RS232 serial, RS485 serial, 100-Mbps Ethernet, CAN bus, CVBS, or 12 loose wires. Meanwhile, the M12-8 port supports expansion to 4 loose wires to accommodate custom integration requirements for fleet management, vehicle dispatching, and industrial control deployments.
Easy To Install

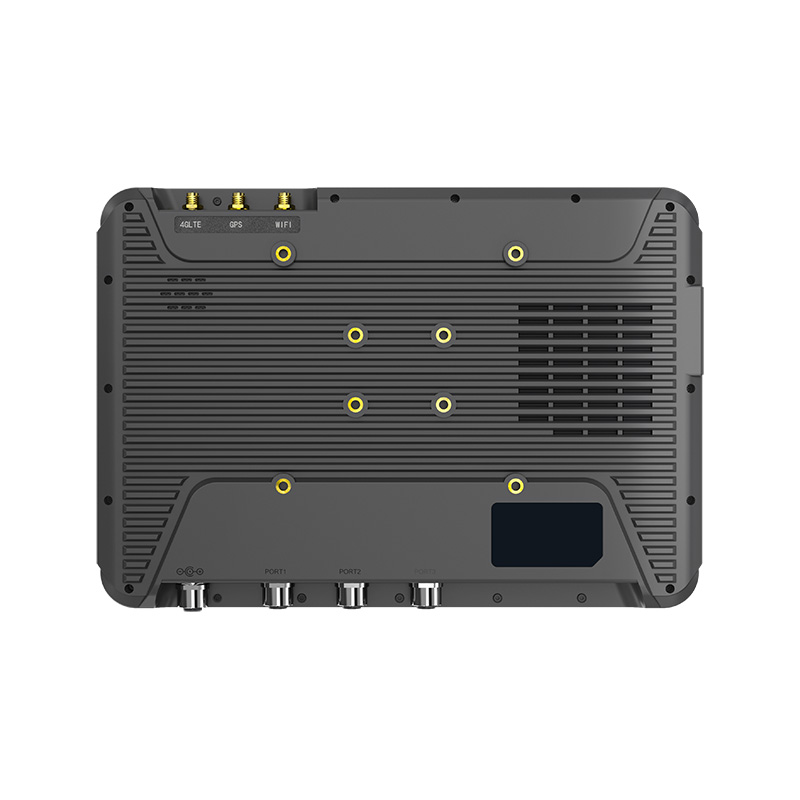

Supporting both VESA and RAM mounting interfaces, this rugged unit adapts to nearly all vehicle‑mounted work environments, including forklifts, agricultural machinery, stackers, cranes, passenger vehicles, trucks, vans and utility carts. Validated under extreme vibration testing, it stays securely fastened and operates reliably over rough, bumpy road conditions. Deliver consistent operational stability to boost productivity across multi‑shift fleet workflows.
Wide‑Voltage Power Input for Fleet & Heavy‑Duty Vehicles
Power supply method: Choose one of three
The tablets features an M12 aviation‑style charging connector and supports battery‑free operation. It can draw power from a vehicle cigarette‑lighter socket or off‑board DC power sources. Available wide‑voltage modules (9‑36V / 20‑80V) deliver steady power delivery for agricultural machinery, cranes, and other heavy‑duty vehicles operating in harsh environments with wide voltage swings and high current ripple. A built‑in RTC battery maintains accurate system clock timing even after power‑off. For emergency backup, an optional 2000 mAh / 3.7 V battery provides temporary runtime during unexpected power outages.
Model Difference
Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime
Available In Multiple Sizes 8" / 10.1"
Dual‑band Wi‑Fi 5, Bluetooth 5.1 / 5.2 and optional 4G‑LTE keep constant wireless connection. Multi‑satellite GNSS (GPS / Beidou / GLONASS / Galileo / QZS) delivers precise location tracking, supporting real‑time vehicle dispatching, asset tracking and end‑to‑end fleet management.
The optional 13.56 MHz NFC module with 4 cm reading distance enables quick ID scanning and data acquisition. Ideal for construction site check‑ins, driver identity verification and inventory workflows within fleet and industrial control applications.

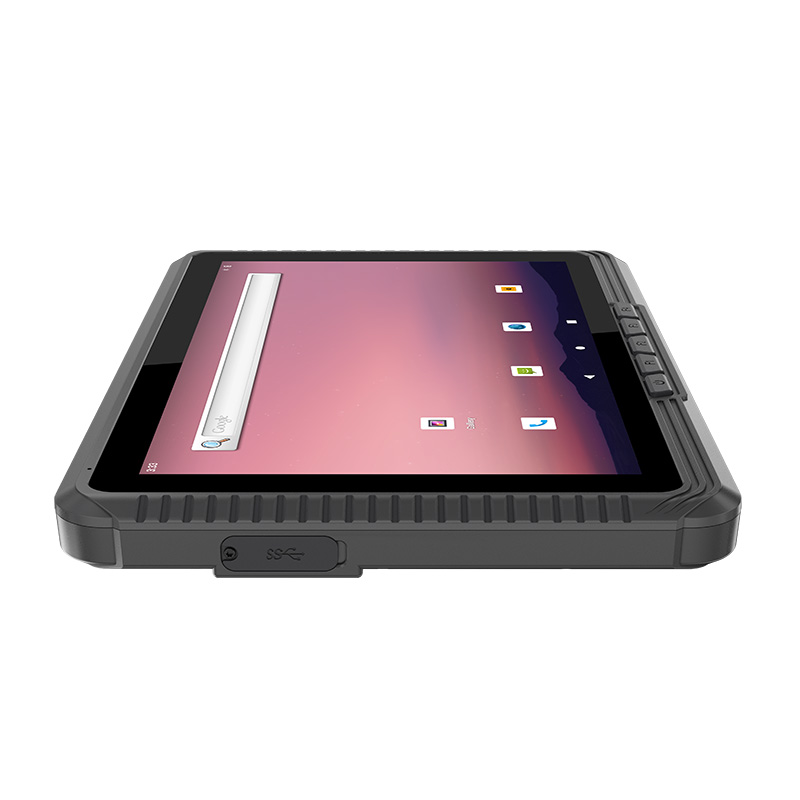

Equipped with a 10.1‑inch 800×1280 HD 1000‑nit screen and 10‑point capacitive touch panel. The bright panel delivers clear visibility under direct sunlight for construction vehicles and field dispatching work, enabling operators to read data effortlessly inside trucks, stackers and heavy‑duty machinery
IP65‑rated against dust and water intrusion, with wide operating temperature ranges. It tolerates extreme temperature swings and 95% non‑condensing humidity, maintaining stable operation amid dust, vibration and harsh weather common in construction yards and outdoor vehicle dispatching workflows.
Flexible port configuration supports standard MICRO‑SIM, USB and M12‑8 power input. Optional RJ45, RS232, RS485, CAN bus and extra USB ports simplify integration with industrial control hardware, vehicle sensors and peripheral devices, perfect for custom fleet management system setups.
Offers battery-free solution or optional small‑battery configuration for selection. Wide voltage module (9-36V/20~80 is available for providing stable power for largeagricultural machinery, crane and other types of vehicles under the complex environment with large voltage span and largecurrent ripple
Specification Overview
Optional NFC Reader Module
Support 13.56MHz, Support ISO/IEC 14443A protocol , Card reading distance: 4cm
payment system
Identity verification
Access control
Digital interaction
Pick Your Ideal Optional Accessories
Apart from standard accessories, different field applications support a wide selection of optional add‑ons. Vehicle mounts are well‑suited for fixed in‑vehicle installations, and shoulder straps are offered for portable field operations. Please reach out to us with your specific accessory needs.
