Features

· Multiple chip solutions optional: RK3568, RK3576S, RK3588S
· Support Android11 OS or Android14 based Quad core RK3576S
· G+G Capactive Touch Panel for excellent experience
· 10.1" touch screen with 1280*800 resolution
· Support WIFI 802.11b/g/n/a/ac/ax, Bluetooth 5.4, Wifi6 available based higher CPU

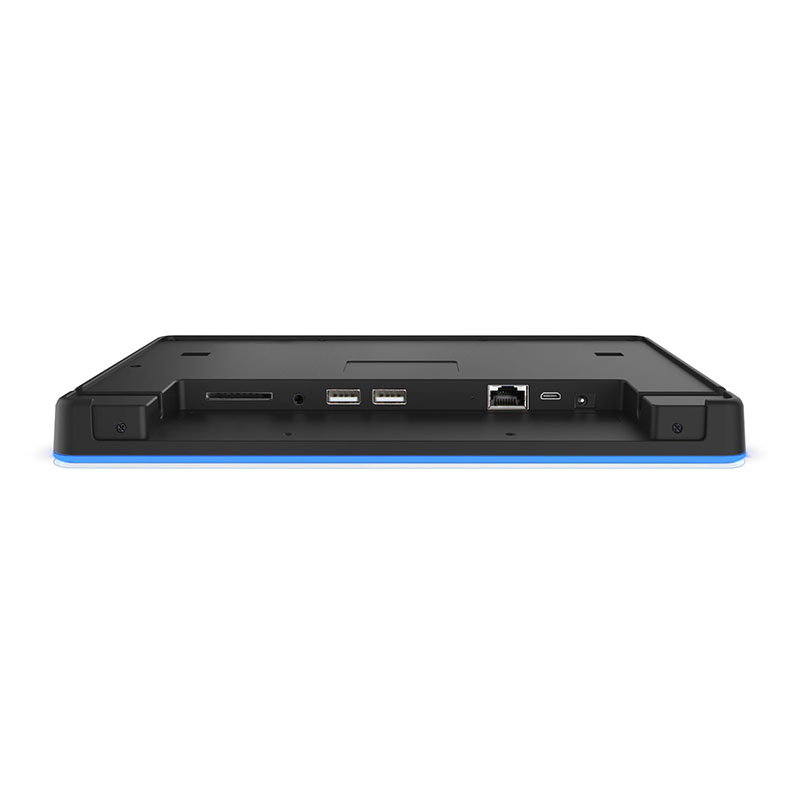

· Abundant intefaces like USB, Type c, serial port, RJ45, and HDMI input ports
· Support white color and black color
· Support optional POE module, NFC, RFID etc

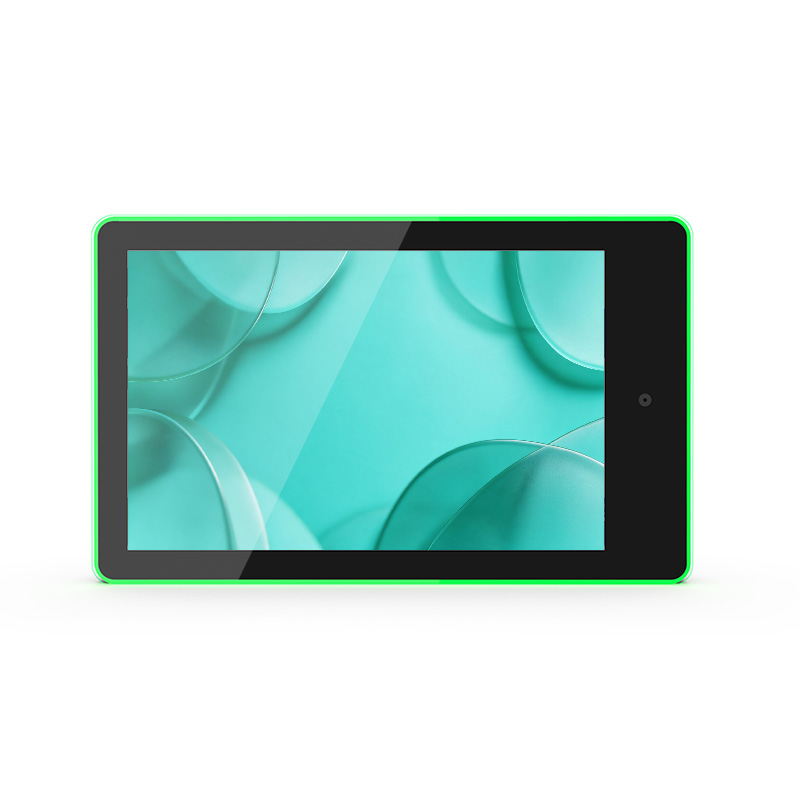

· Support LED light ring to control different color according to different applications.

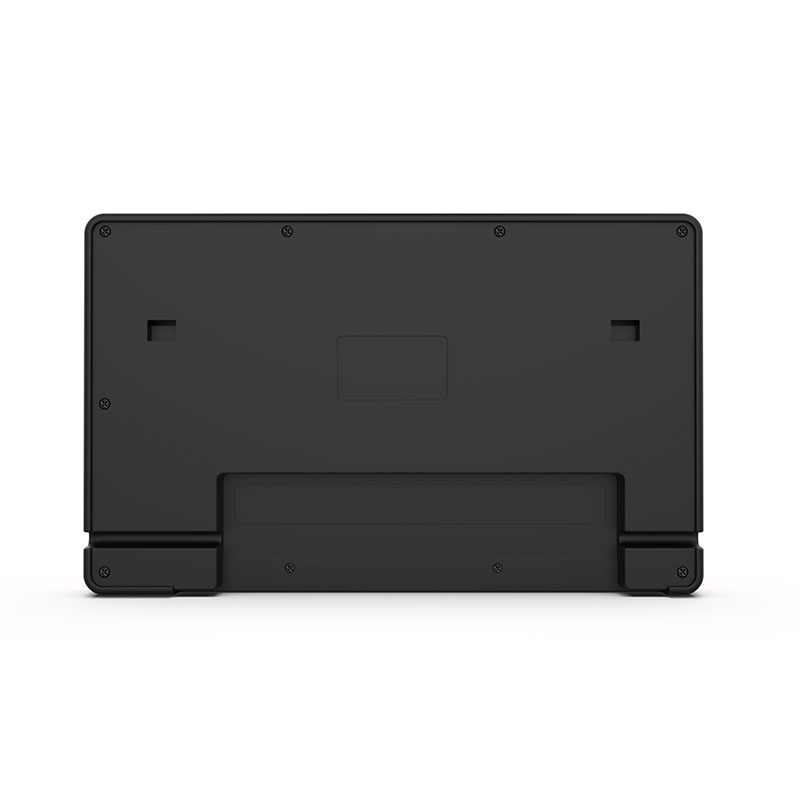

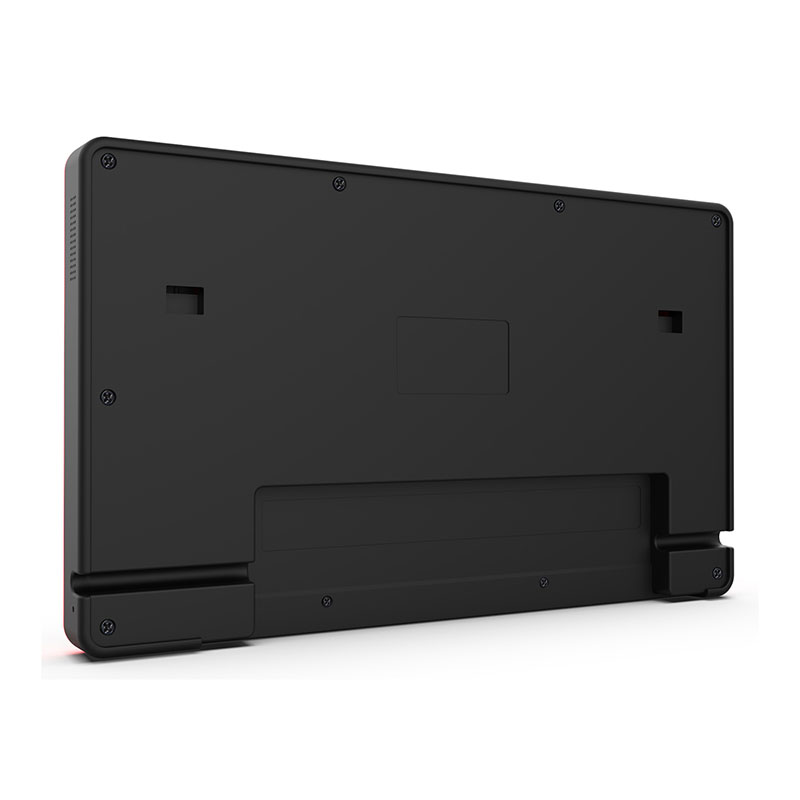

· Support VESA installation with 200x100mm design
· Support customization & ODM service based MOQ

Introduction

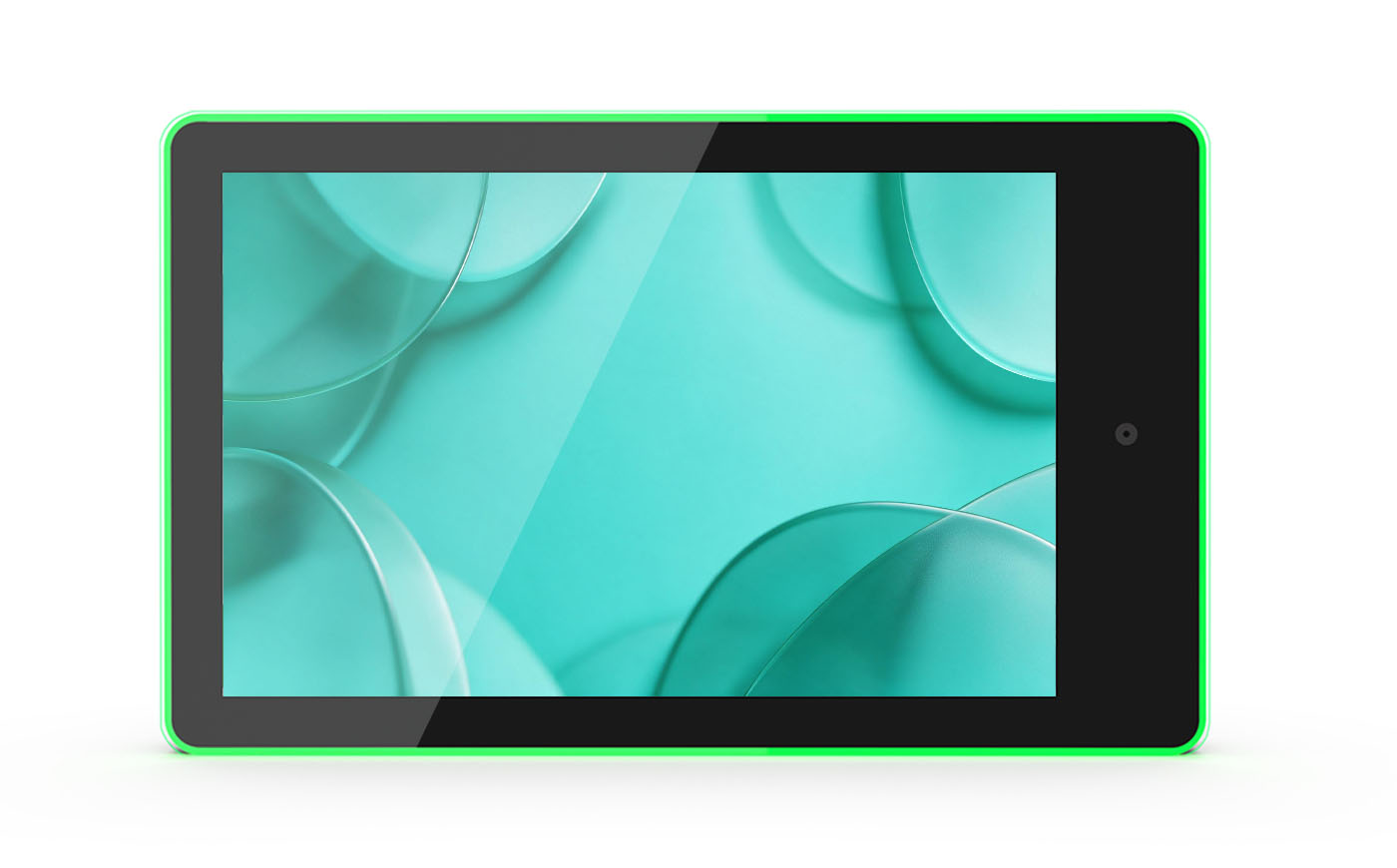

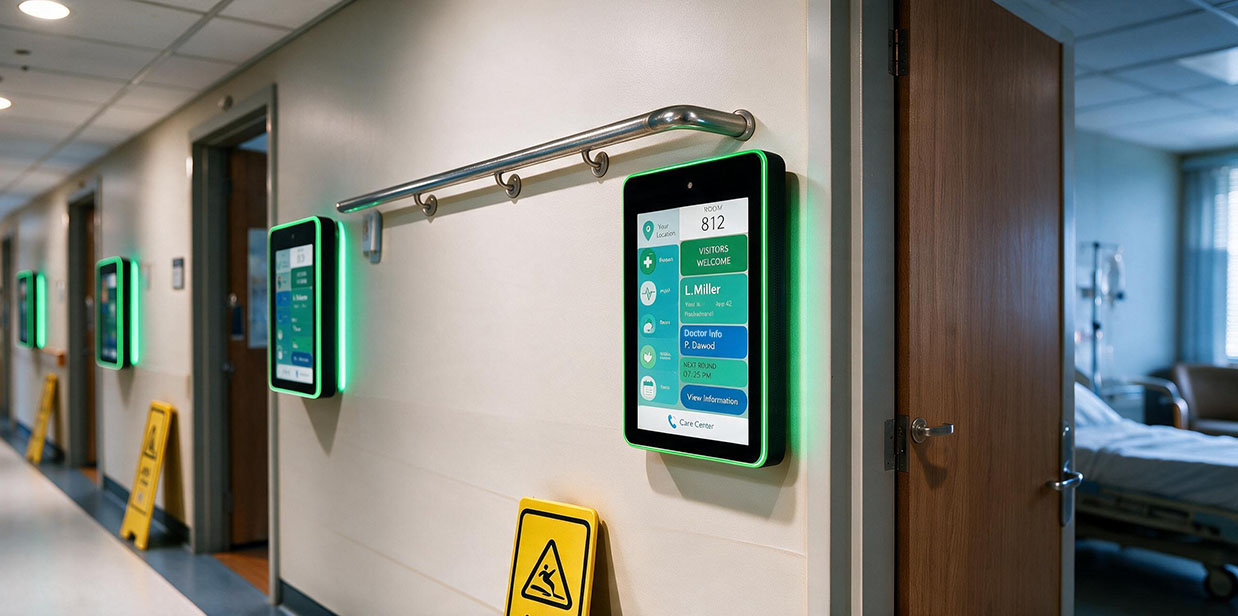

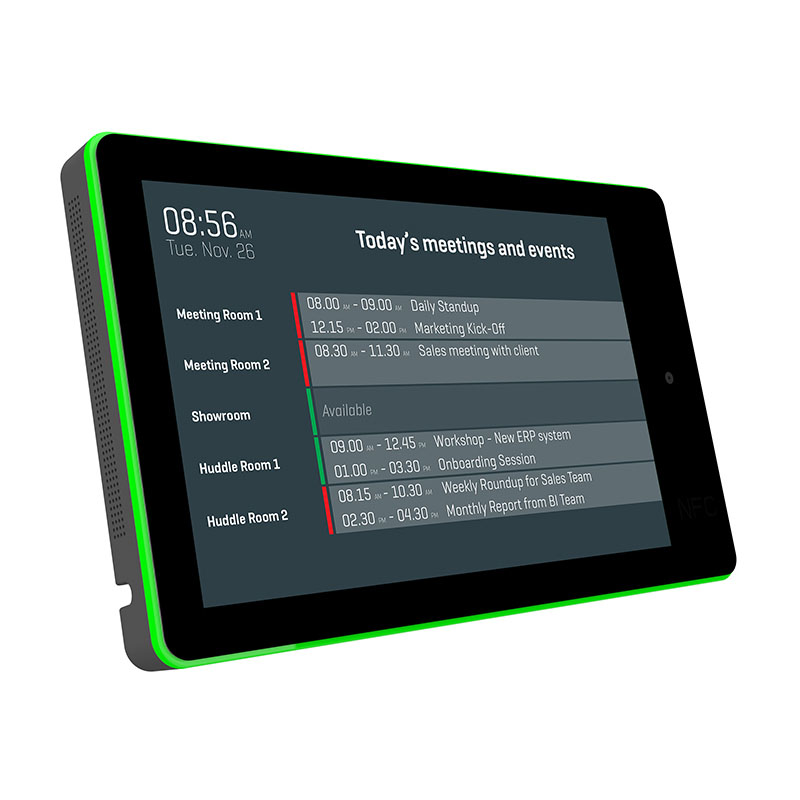

Driven by the RK3568 Quad-core processor, this compact 10.1-inch Android 11 tablet delivers reliable performance with a clear 1280x800 IPS display and responsive 10-point capacitive touch. It ensures seamless connectivity through Wi-Fi IEEE 802.11a/b/g/n/ac/ax, Bluetooth 5.4, and Gigabit Ethernet, while offering versatile expansion options via USB 3.0, RS232 serial, and optional NFC/RFID modules for secure access control. Designed for flexible integration, the device features a durable build with standard VESA mounting, a unique RGB LED light bar for visual status indication, and supports auto-rotation via G-sensor, making it an ideal solution for digital door board solution, access control, and secure identity verification etc.

Note: All technical data, specification and performance figures subject to change without notice, our sales will indicate when offer the quotation if there are some changes, Please feel free to ask us anytime

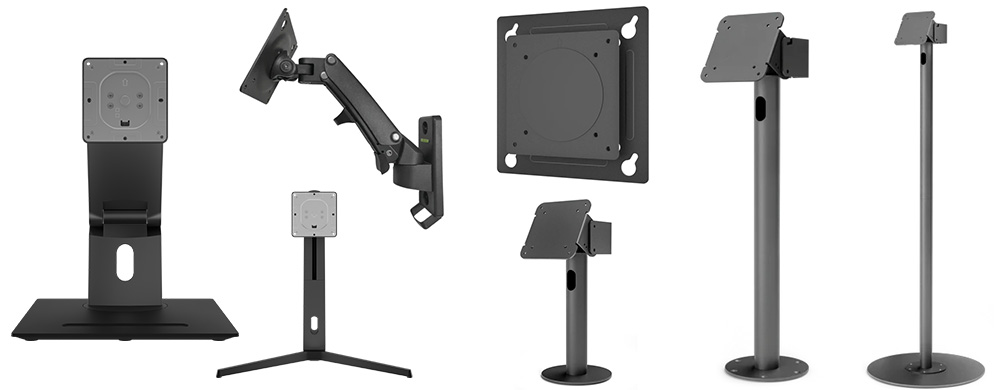

Optional VESA plate

Flexible mounting & bracket choices for any installation environments.
Optional standard VESA plates with detachable design which is easy to connect our displays and wall, alternatively, screws can be used to secure the stand at the bottom for anti-theft protection.
For more stand mount requirements, contact us for more information.

Your enquirie are always welcomed, contact our sales and send us your preferred Chipset SoC,  screen size, memory configuration, interfaces, and optional modules or VESA mounts if require.

It would be appreciated to get your project information such as target quantity, lead time, application enviroment etc, learning more about that helps us analyse and recommend  suitable solutions for you, thank you!
